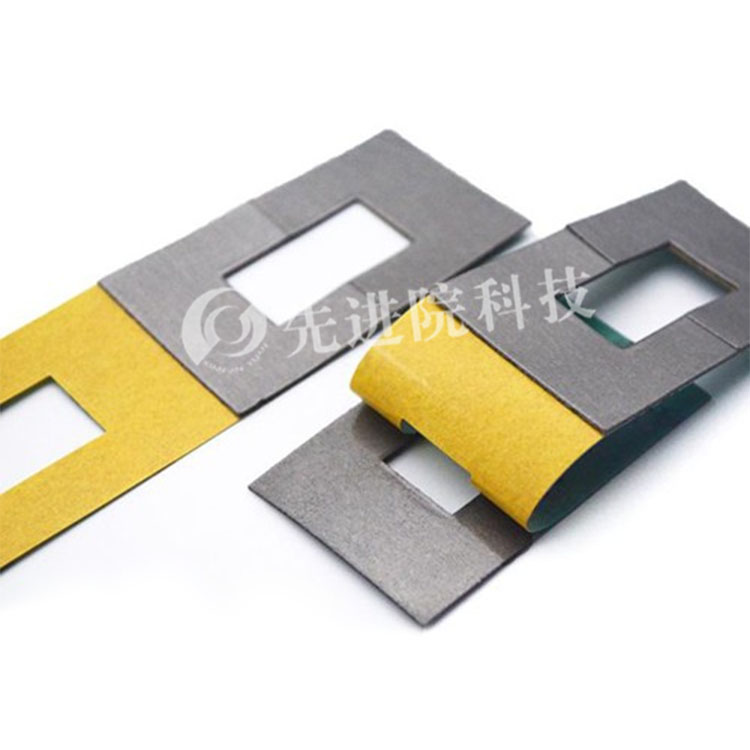

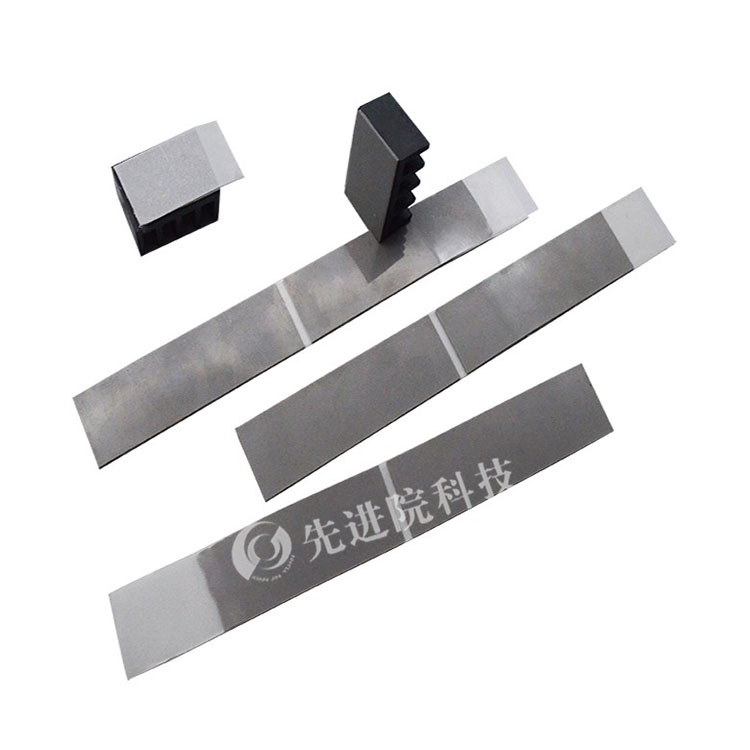

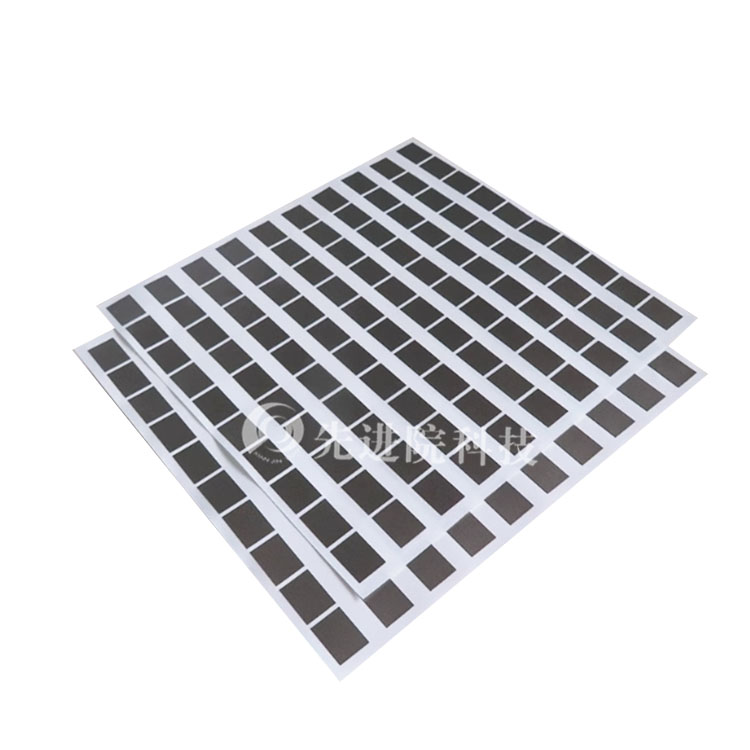

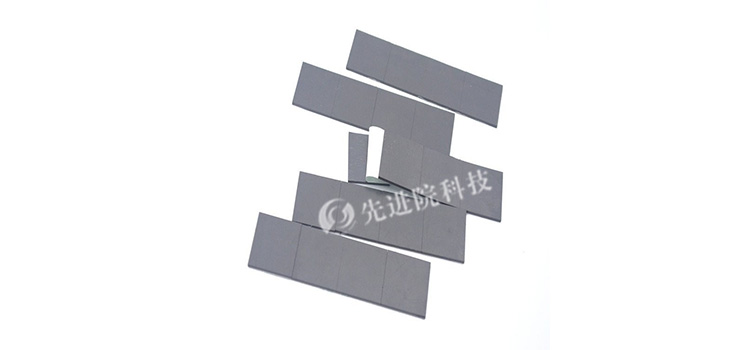

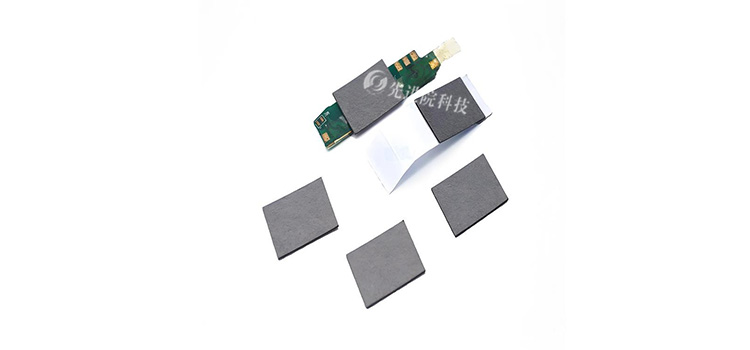

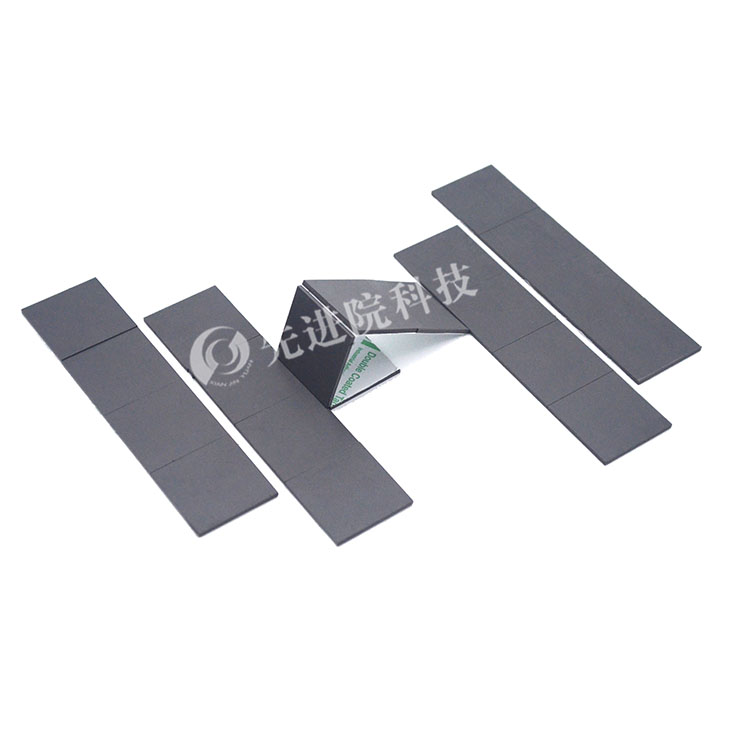

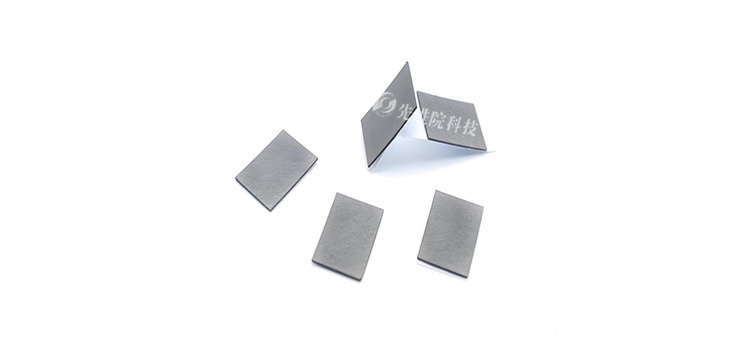

Microwave band radio wave absorbing materials, especially those targeting the frequency range of 9GHz to 18GHz, are materials that can effectively absorb electromagnetic waves within a specific frequency range. These materials are commonly used to reduce electromagnetic interference (EMI), improve signal clarity, enable stealth technology, and play a critical role in electromagnetic compatibility (EMC) design.
Material characteristics
Microwave wave absorbing materials suitable for the 9GHz to 18GHz frequency band need to have the following characteristics:
- Broadband absorption: Provides stable absorption effect in the frequency range of 9GHz to 18GHz.
- Lightweight and thin: In order to facilitate portability and installation, materials need to be as lightweight and thin as possible.
- Durability: It can maintain its absorption performance under various environmental conditions, such as temperature and humidity changes.
- Environmental adaptability: The material should be able to work stably in various environments and not be easily affected by environmental factors.
- Good mechanical performance: with sufficient strength and flexibility to adapt to different installation requirements.
Material type and composition
Common microwave frequency absorbing materials include:
- Magnetic materials, such as ferrite, have good magnetic loss characteristics in the microwave frequency range and are suitable for absorbing electromagnetic waves.
- Conductive polymer: A polymer matrix containing conductive fillers such as carbon black, carbon nanotubes, graphene, etc., which can increase the conductivity of the material and absorb electromagnetic waves.
- Dielectric material: Absorption is achieved by adjusting the dielectric constant and loss factor of the material.
- Multilayer composite materials: Combining the advantages of two or more materials mentioned above, the absorption frequency band is extended through the design of multilayer composite structures.
- Metamaterials: artificially designed structures that achieve broadband absorption by regulating the electromagnetic properties of materials.
Design Principle
The design of microwave frequency band radio wave absorbing materials is usually based on the following principles:
- Impedance matching: By adjusting the impedance of the material to match the impedance of air, reflection is reduced.
- Multi resonant modes: Utilizing different resonant modes within the material to achieve broadband absorption.
- Gradient impedance structure: a multi-layer structure using gradient impedance, gradually changing the impedance of the incident wave to reduce reflection.
- Magnetic and electrical losses: Absorbing electromagnetic wave energy through the combined effect of magnetic and electrical losses in materials.
application area
The application of this type of material is very extensive, mainly including:
- Radar system: used in radar antenna covers, stealth coatings, and other areas to reduce radar signal reflection, improve radar concealment and safety.
- Wireless communication: In 5G communication devices, it is used to reduce mutual interference between antennas and improve signal clarity.
- Electromagnetic compatibility (EMC) design: used in electronic devices to reduce electromagnetic interference between internal components.
- Aerospace: Used inside aircraft, satellites, and other spacecraft to reduce interference between electronic devices and improve system stability and safety.
- Medical equipment: used to reduce electromagnetic interference in MRI and other equipment, and improve imaging quality.
