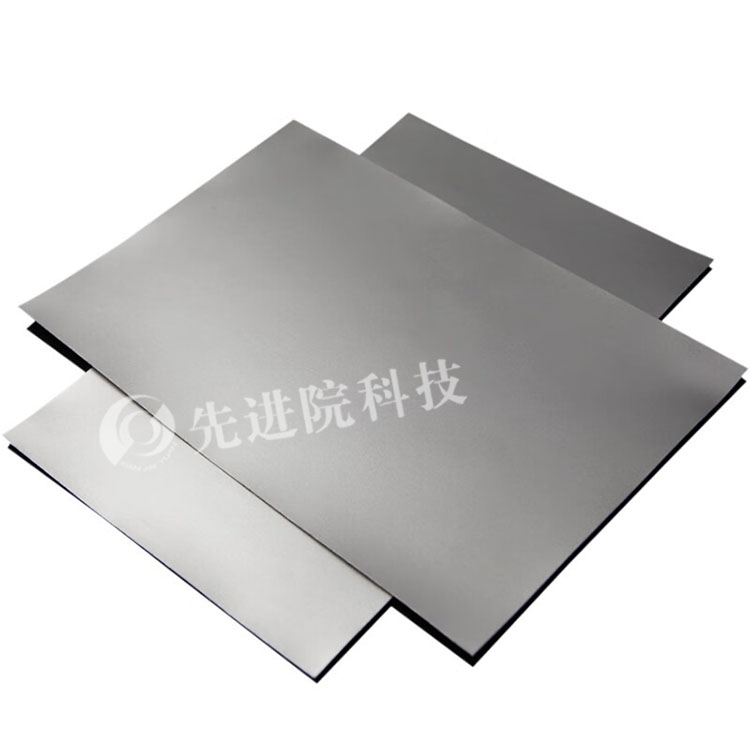

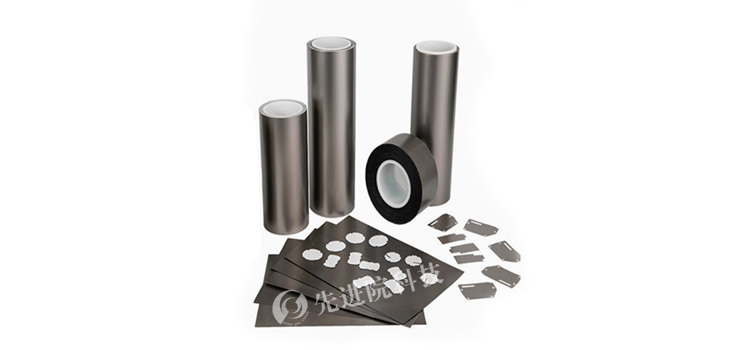

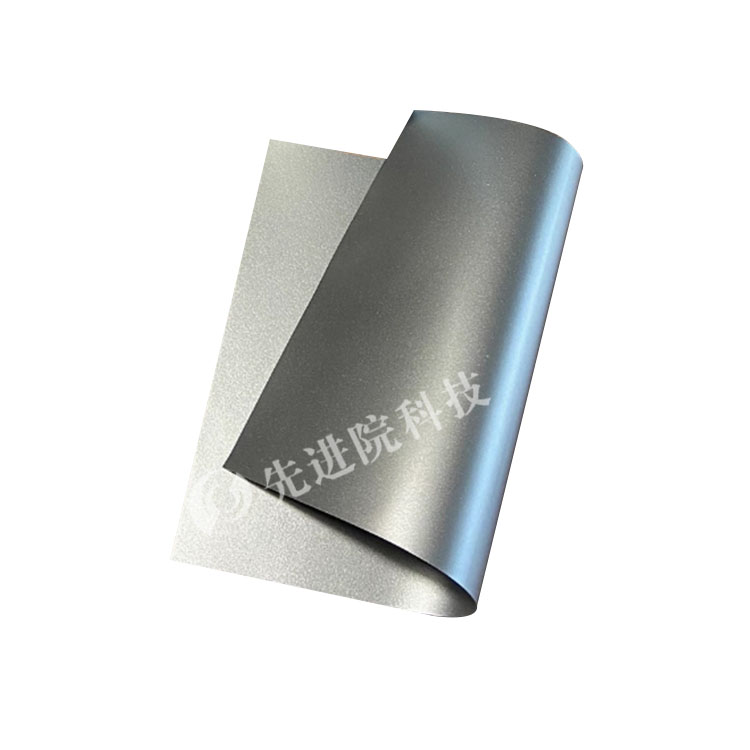

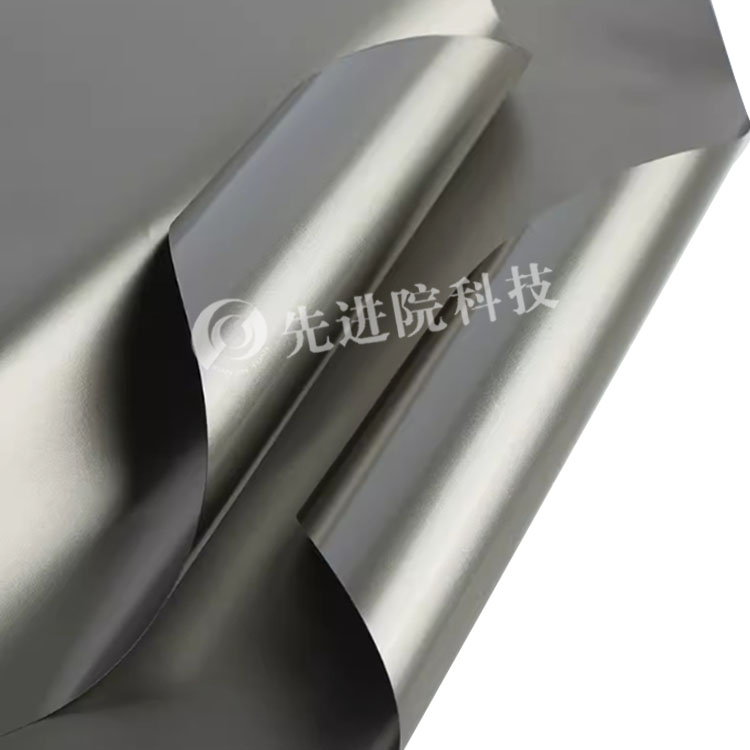

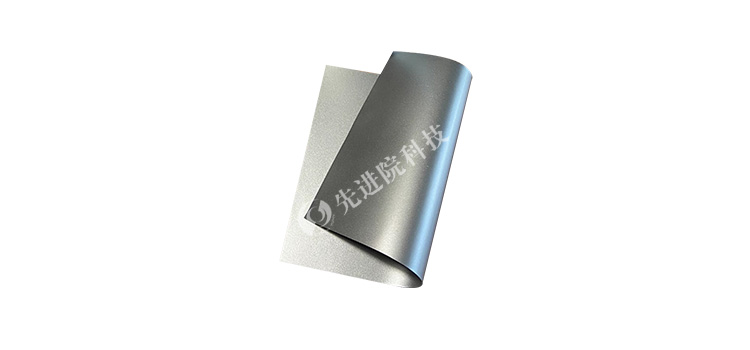

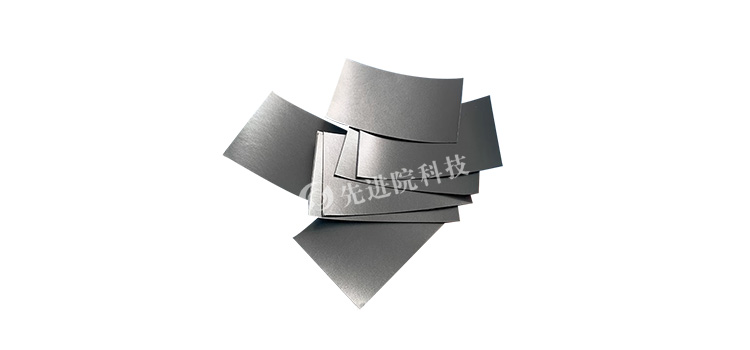

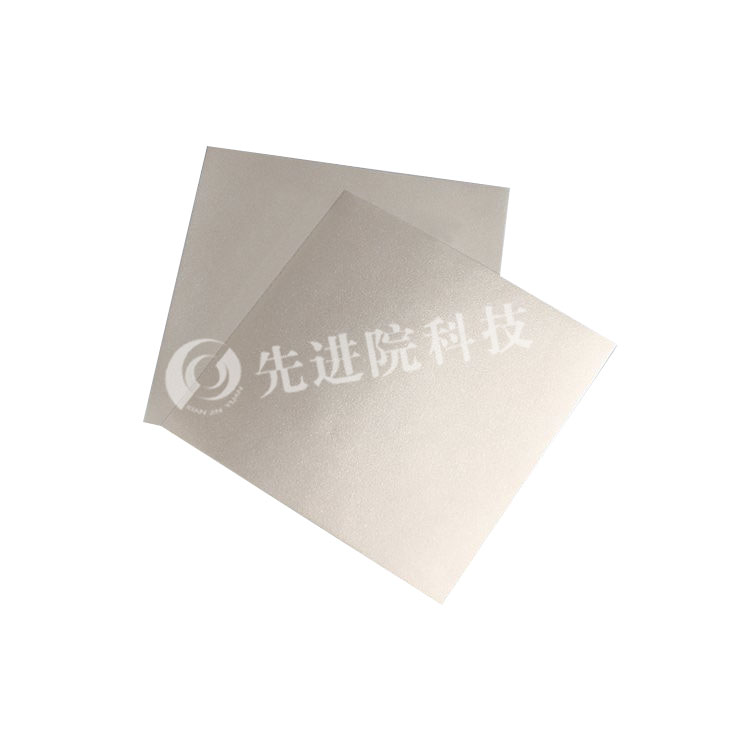

Low Magnetic Permeability Absorbing Materials are materials designed to reduce electromagnetic wave reflection and absorb electromagnetic energy. These materials typically have lower magnetic permeability (μ), which means they have weaker responses to changes in magnetic fields. In contrast, traditional absorbing materials often rely on high magnetic permeability materials to absorb electromagnetic waves. The design purpose of low permeability absorbing materials is to provide better electromagnetic compatibility (EMC) and reduce radar cross section (RCS) in specific application scenarios.
Characteristics and advantages
Low permeability absorbing materials have the following characteristics and advantages:
- Broadband absorption: By design, electromagnetic waves can be absorbed over a wide frequency range.
- Lightweight: Materials with low magnetic permeability are usually lighter in weight, which helps to reduce the overall weight of the structure.
- Flexibility: The formula and structure of materials can be adjusted as needed to meet different application requirements.
- Strong environmental adaptability: In some cases, low permeability materials may perform better under specific environmental conditions, such as extreme temperature changes or humid environments.
Working principle
The working principle of low permeability absorbing materials mainly relies on the combination of dielectric loss and magnetic loss. The dielectric loss and magnetic loss inside the material work together to convert the incident electromagnetic wave energy into thermal energy. In low permeability materials, dielectric loss occupies a more important position.
- Dielectric loss: The dielectric polarization effect in materials causes energy to be consumed when the electric field changes.
- Magnetic loss: Although the magnetic permeability is low, the magnetic particles in the material can still absorb some electromagnetic wave energy through hysteresis and eddy current effects.
Material composition
Low permeability absorbing materials are usually composed of the following parts:
- Matrix material: usually a polymer matrix, such as epoxy resin, silicone rubber, etc., providing structural support.
- Filler material: A filler material used to enhance electromagnetic wave absorption capability, including but not limited to:
- Dielectric fillers, such as carbon black, graphite, carbon nanotubes, etc., increase dielectric loss.
- Magnetic fillers, such as ferrite and carbonyl iron powder, although have low magnetic permeability, still contribute to magnetic loss.
- Metal fillers, such as copper powder, aluminum powder, etc., can enhance dielectric loss through conductivity.
Preparation Method
Low permeability absorbing materials can be prepared by various methods:
- Mixing method: After mixing the filler with the matrix material, it is formed by stirring, coating, molding, and other methods.
- Chemical deposition method: Deposition of absorbing materials on the surface of the substrate material through chemical reactions.
- 3D printing: Utilizing advanced 3D printing technology to construct absorbing materials layer by layer according to the design model.
application area
- Military field: In stealth technology, low magnetic permeability absorbing materials can be used to manufacture stealth coatings and stealth structural components, reduce radar reflection cross-section, and improve the concealment of military equipment.
- In the field of aerospace, low permeability absorbing materials can be used in the design of aircraft, satellites, and other aerospace vehicles to reduce electromagnetic interference and radiation on equipment, and improve system stability and reliability.
- In the field of communication, low magnetic permeability absorbing materials can be used to absorb interference signals, reduce signal attenuation, improve communication quality and coverage in wireless communication systems.
- In the field of electronic devices, low magnetic permeability absorbing materials can be used to make electromagnetic shielding covers, filters, and other components, reducing the impact of electromagnetic radiation on the device and human body.
