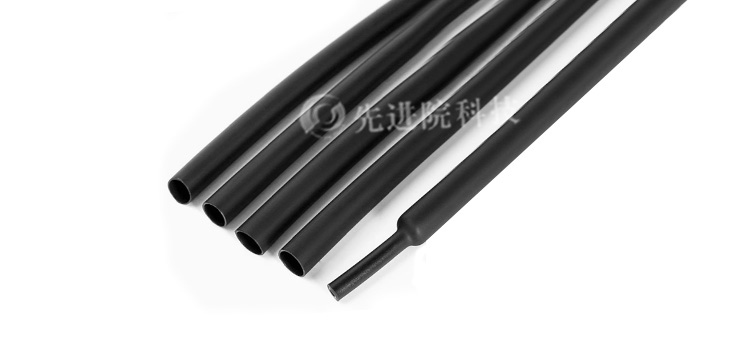

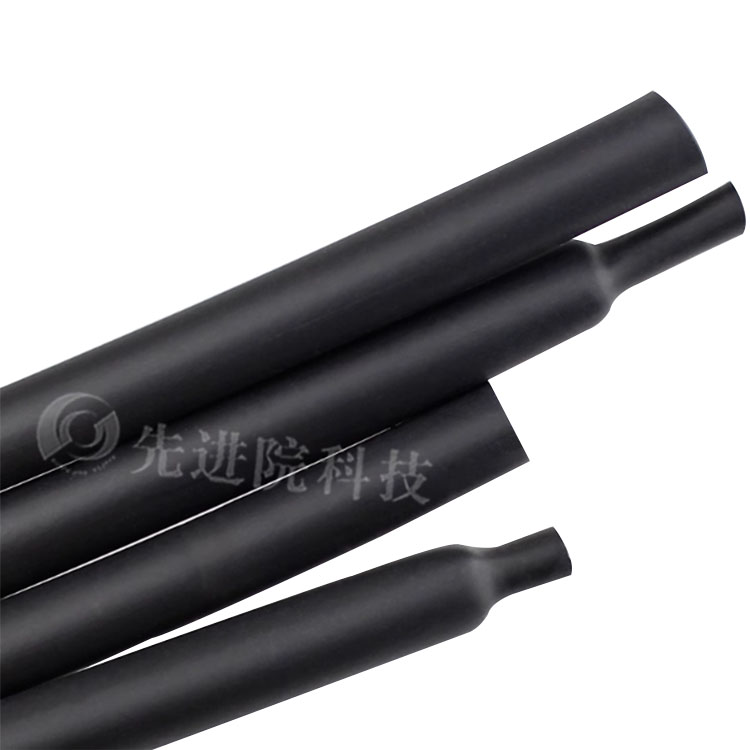

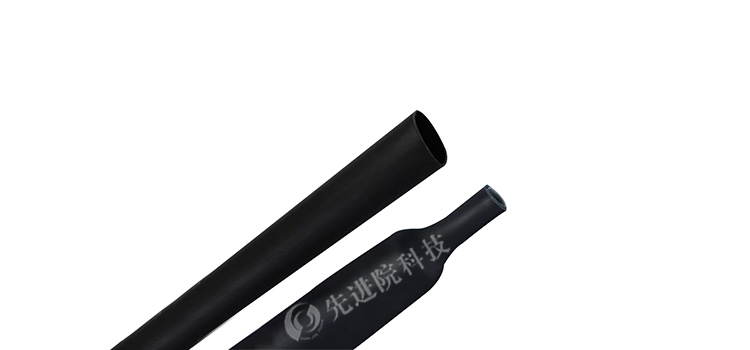

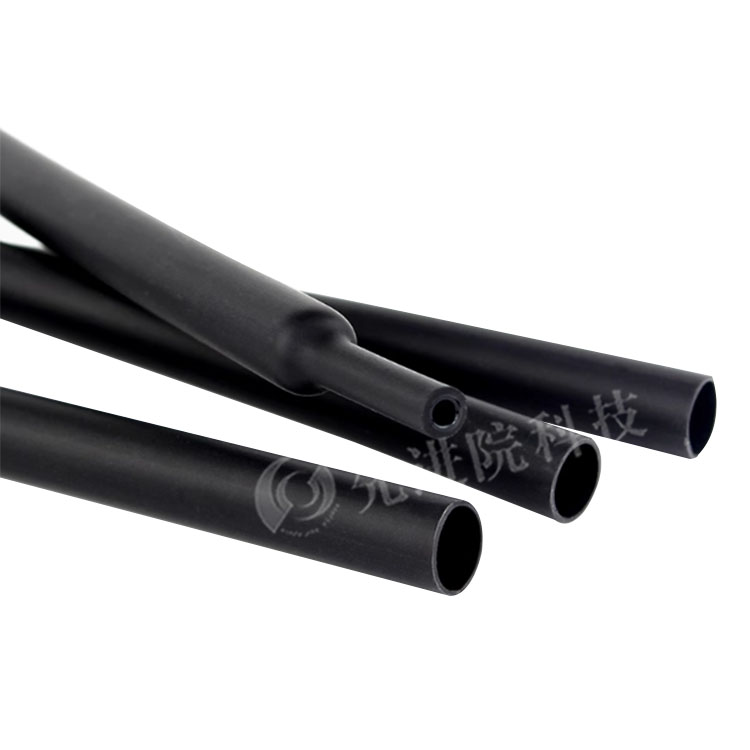

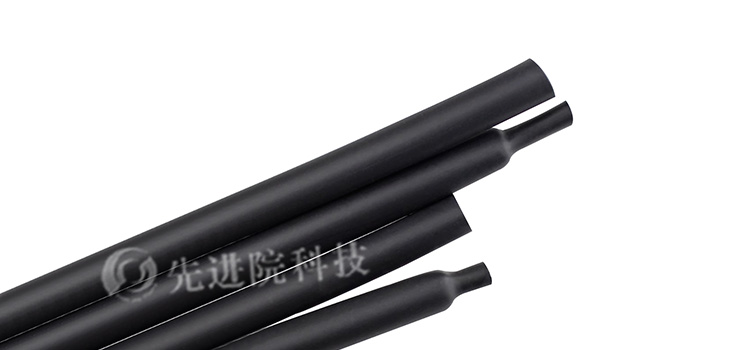

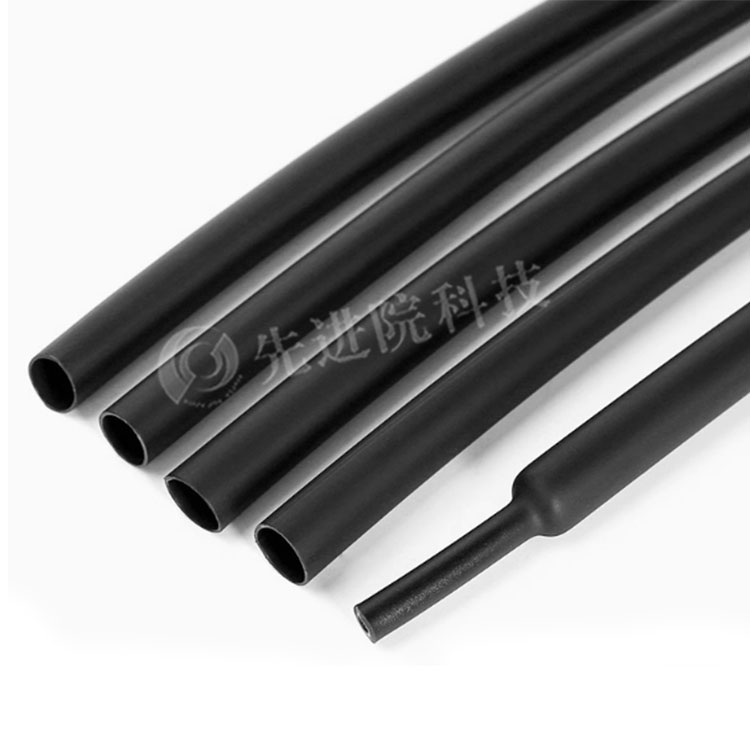

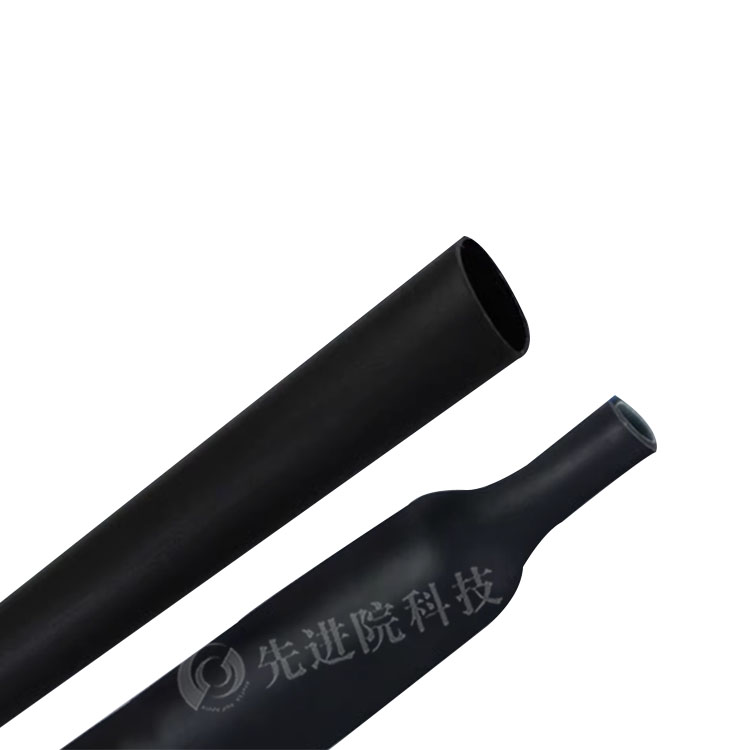

Electromagnetic shielding heat shrink tubing

Electromagnetic shielding heat shrink tubing is a special type of heat shrink tubing used to protect cables, wires, and other conductors from electromagnetic interference (EMI) and radio frequency interference (RFI). This type of heat shrink tubing not only has the physical protection function of ordinary heat shrink tubing, but also effectively shields the interference of external electromagnetic fields on internal wires, thereby maintaining the clarity and integrity of signals.

Construction and Materials

Electromagnetic shielding heat shrink tubing usually consists of two layers of structure:

1. Inner layer: This is usually a heat shrink tubing made of thermoplastic materials such as polyolefins or fluoropolymers, which can shrink when heated and tightly wrap around wires or cables.
2. Outer or embedded layer: This layer is composed of metal fibers, metal coatings, or metal woven mesh, which can reflect or absorb electromagnetic waves to achieve shielding effect.

Characteristics and advantages

• Shielding efficiency: Shielding heat shrink tubing can significantly reduce the impact of EMI/RFI on signal transmission, improve signal quality and system reliability.
• Chemical corrosion resistance: Many shielded heat shrink tubing have good chemical resistance and can be used in various environments without being affected.
• Mechanical protection: In addition to shielding function, heat shrink tubing also provides additional mechanical protection to prevent physical damage such as wear and tear, scratches, etc.
• Waterproof and moisture-proof: Some types of shielded heat shrink tubing also have waterproof function, which can maintain good electrical performance in humid environments.

application area

Electromagnetic shielding heat shrink tubing is suitable for multiple industries and application scenarios, such as:

• Telecommunications industry: used in data transmission cables to ensure the quality of information transmission.
• Automotive industry: Used in automotive electronic systems to reduce interference between various electronic modules.
• Aerospace: Ensure that critical circuits are not disturbed in equipment such as airplanes and satellites.
• Medical equipment: Used in medical devices that require high-precision signal transmission.

Usage

When using electromagnetic shielding heat shrink tubing, it is generally first placed on an unconnected cable, then connected to a cable joint or other component, and then pulled to the desired position and shrunk using a hot air gun or other heating tool to form a tight seal and shielding effect on the surface of the cable.
