Mixing dielectric powder with resin in thick film primary glass, blue, 600 ℃ dielectric slurry

Dielectric pasteManufacturing of

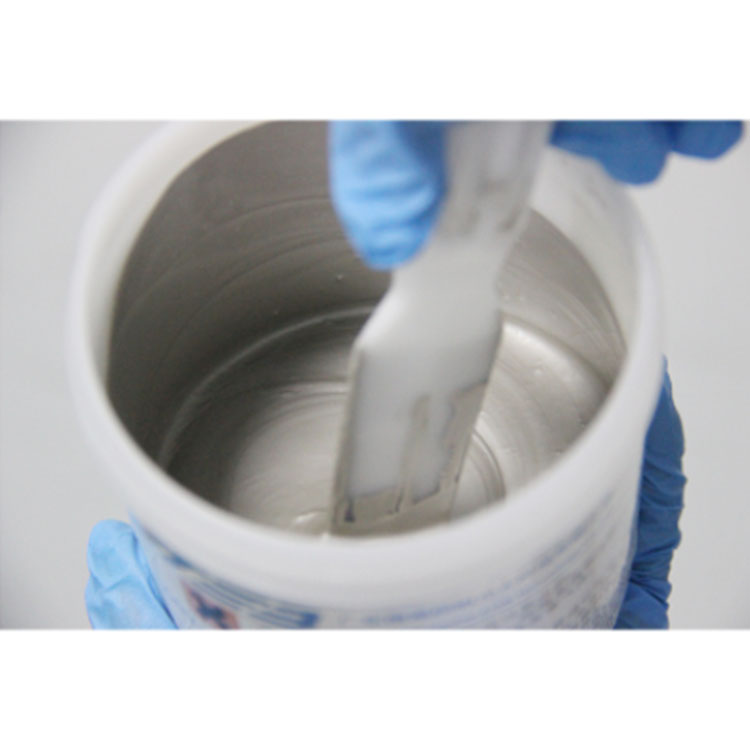

The first step in manufacturing laminated ceramic surface mount capacitors is to produce dielectric paste. Advanced Institute Technology mainly mixes dielectric powder with resin to manufacture dielectric slurry.

Manufacturing of thin films: After obtaining the dielectric slurry, the next step is to make these dielectric slurries into thin films.

After printing the internal electrodes and making the dielectric paste into a thin film, the next step is to print the electrodes on this thin film.

Stacked film, pressure

Print those electrodesDielectric pastePut the films together and apply pressure to create a laminated film.

Cut into layers and apply patches

After obtaining the compressed laminated film, the manufacturing process of laminated ceramic surface mount capacitors is not yet complete. It is necessary to cut these compressed laminated films according to the required size and make them surface mount to meet the needs of different sizes.

After being placed in the furnace for firing and slicing the laminated film, it needs to be fired in the firing furnace to become a hard ceramic.

Applying paste, firing, electroplating, and after firing, it is also necessary to apply terminal coatingelectrode slurryThen, it is fired again and electroplated, and the production of laminated ceramic surface mount capacitors is considered complete.

Inspection, packaging, and shipment: Although the production of laminated ceramic surface mount capacitors is completed, it is still necessary to conduct characteristic checks on them. After inspection, the laminated ceramic surface mount capacitors will be packaged and shipped to the customer.
