Good shielding effectiveness and adhesion of dual paper and dual conductive aluminum foil

Double paper double conductive aluminum foilIt is made of soft aluminum foil as the substrate, double-sided coated with conductive acrylic adhesive, and release paper as the low paper, abbreviated as double paper double conductive aluminum foil tape

Quality requirements and specifications:

Type: Double conductive aluminum foil

Main material: aluminum foil, acrylic adhesive

Aluminum foil thermal conductivity 240W/mk

Basic thickness 0.1 ± 0.01mm

Adhesive force>1200g

Holding force>24hr/inch

Plane resistance<0.1 Ω

Width 1000mm

Temperature resistance -10 ℃ -120 ℃

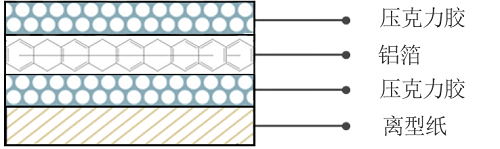

Product Structure:

Product Usage:

Double paper and double conductive aluminum foil tape has low impedance, good shielding effectiveness and adhesion, suitable for places where electromagnetic shielding is required in electronic products such as monitors, laptops, mobile phones, cables, calculators, etc
