Internal disassembly diagram of Xiaomi 12 Pro, it looks like this inside! Do you have shielding materials from your home

After the release of Xiaomi 12 Pro, WekiHome and Aio Technology respectively released disassembly videos on Bilibili. Interested friends can join me to see how the internal workmanship and materials of Xiaomi 12 Pro are.

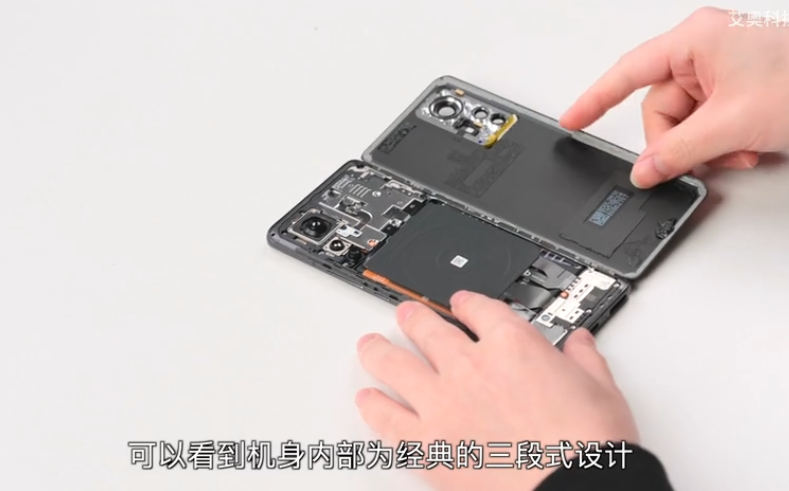

The Xiaomi 12 Pro still adopts a sandwich structure, with a three-stage interior after removing the back cover.

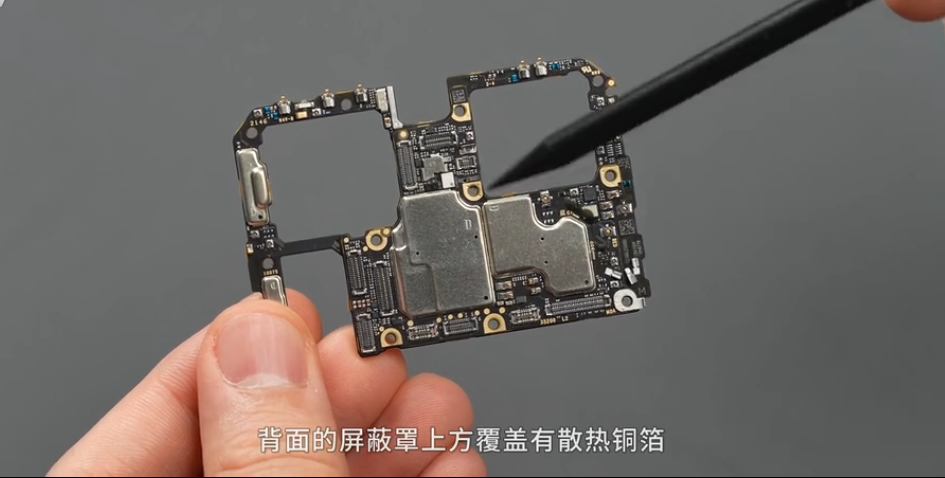

In order to suppress the internal use of Snapdragon 8 Gen1, heat dissipation film, copper foil, silicone grease, 2900mm2 ultra large VC heat plate, etc. were used.

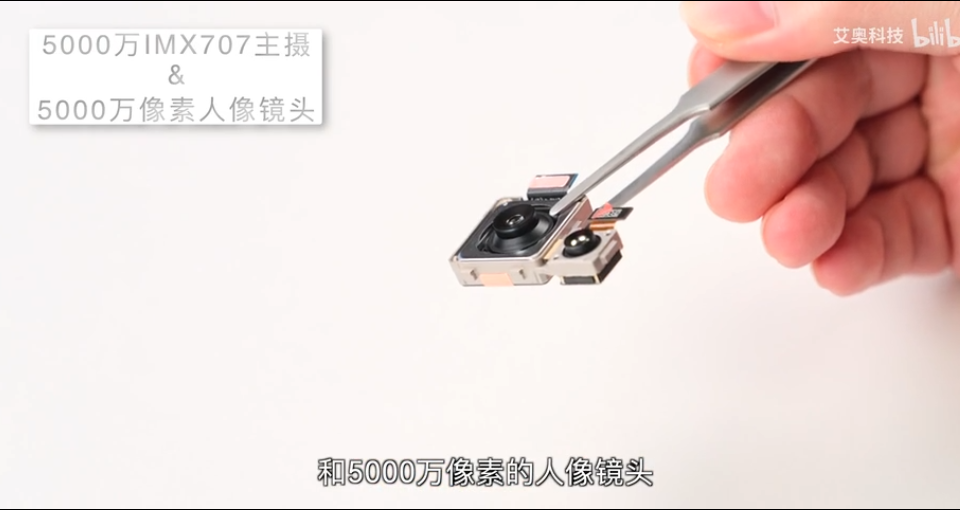

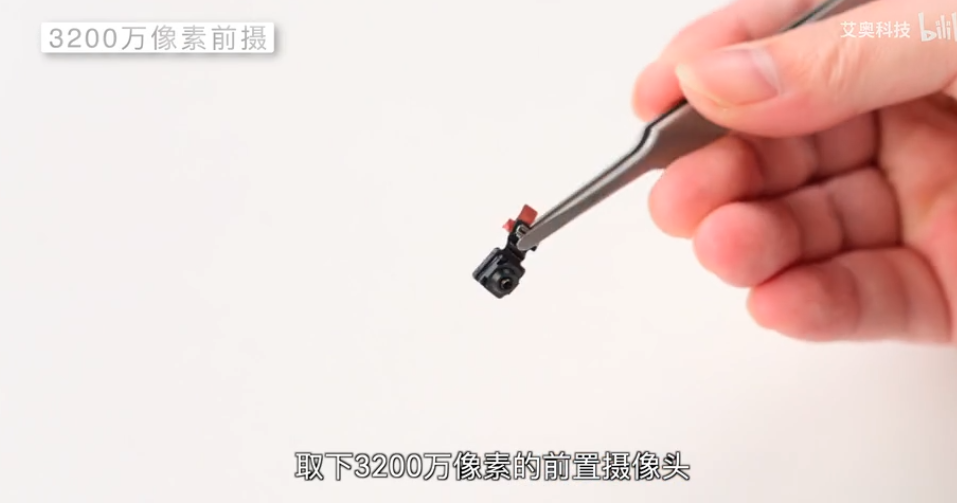

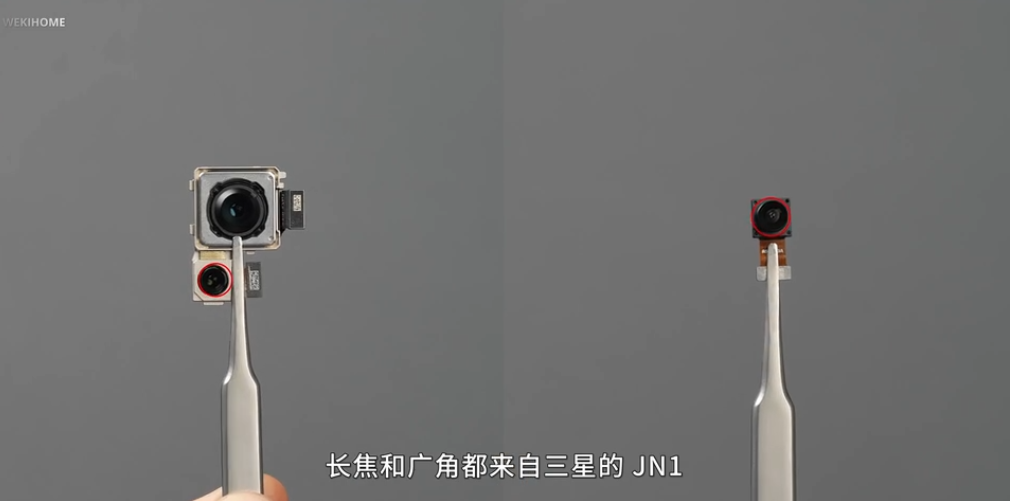

In terms of camera parameters, except for the world's first Sony IMX 707 main camera, both the telephoto and wide-angle lenses are Samsung JN150 million pixels, and the front camera is a 32 million pixel Hawei OV32B40, with a portrait lens 5P lens and a super wide-angle lens 6P. The main camera is 7P optical stabilization. Three major CMOS manufacturers have arranged for a mobile phone.

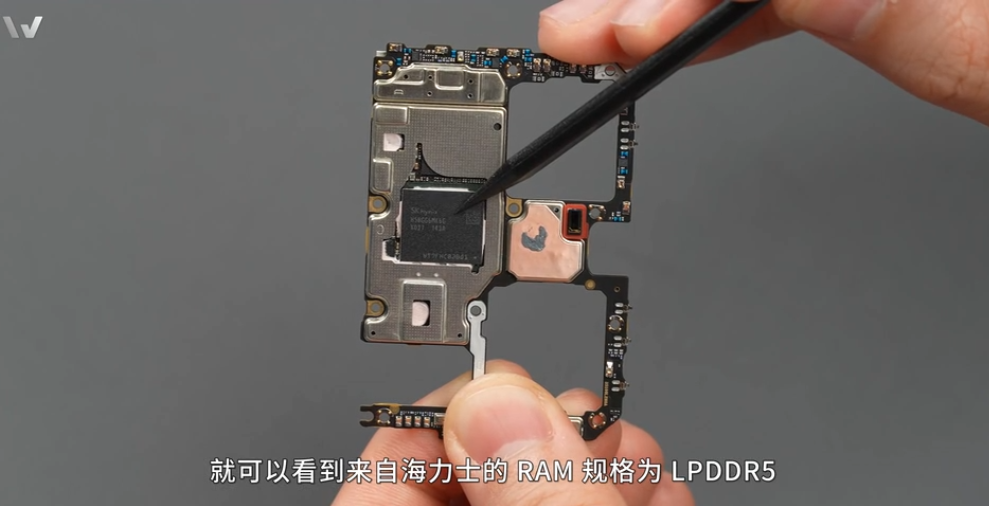

In terms of flash memory and memory, both media outlets are equipped with SK Hynix LPDDR5 and SK Hynix UFS 3.1.

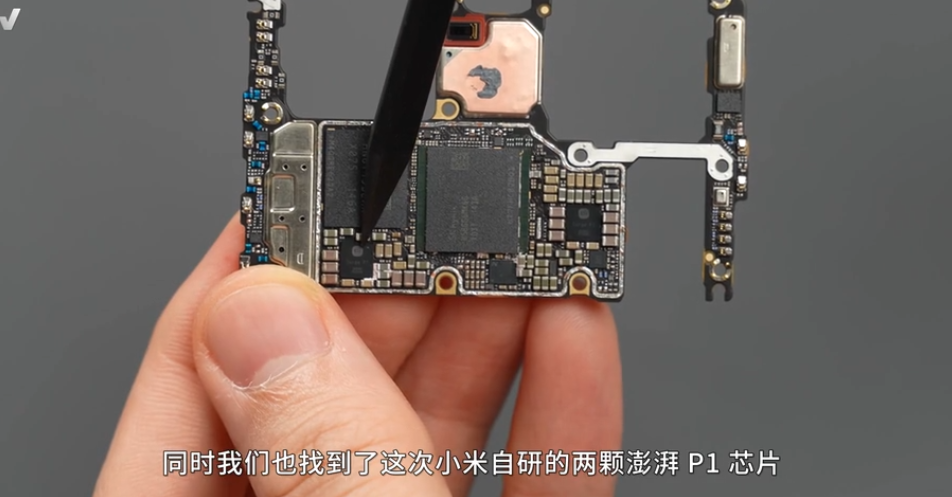

The Xiaomi Pengpai chip has achieved a charging power of 100W on a single cell battery.

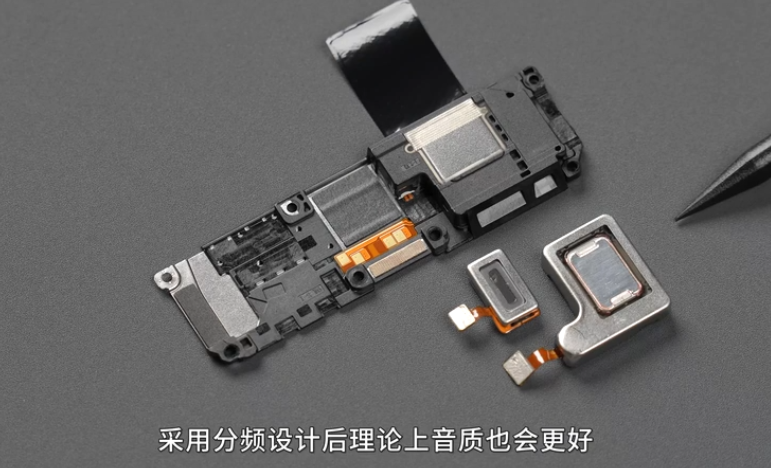

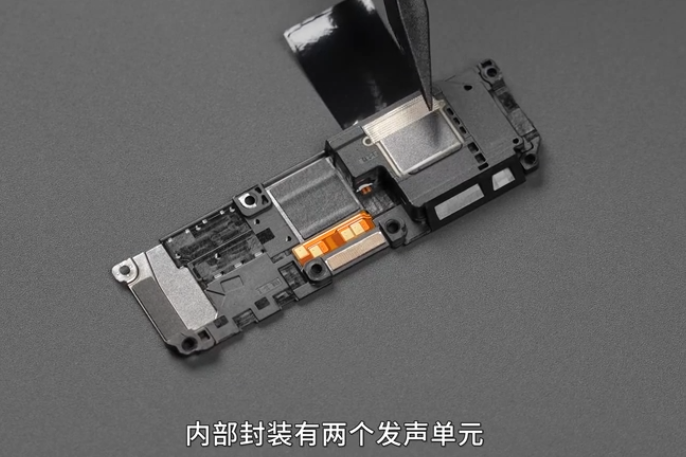

The one with a larger volume on the left is the bass unit, and the one on the right is the treble unit.

The four unit frequency divider speaker (high and low) arranged diagonally above and below theoretically produces better sound quality after adopting a frequency divider design. The manufacturer of the speaker is AAC Technologies.

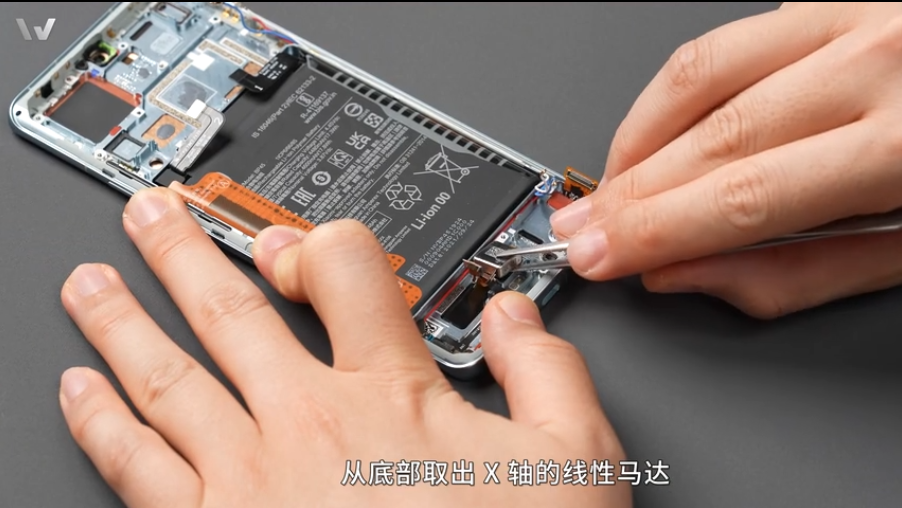

The X-axis linear motor also comes from AAC Technologies.

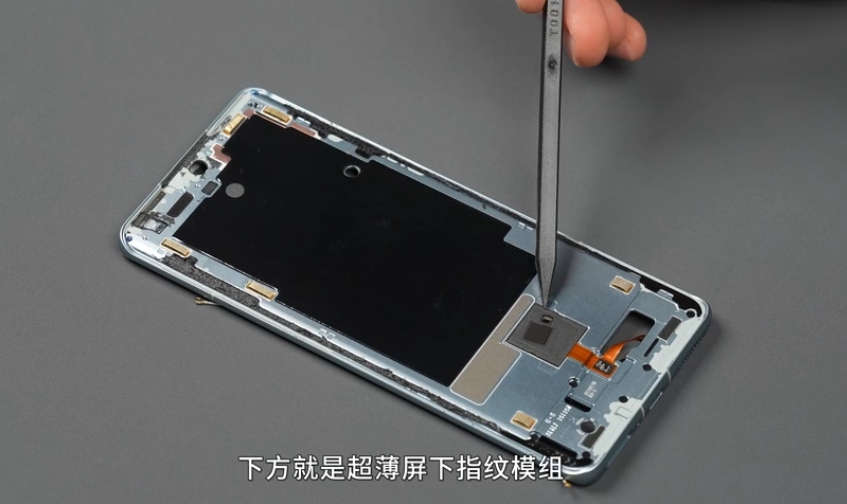

In other aspects, some netizens were concerned that the Xiaomi 12 Pro used a short focus under screen fingerprint solution, which is actually a more expensive ultra-thin under screen fingerprint solution.
