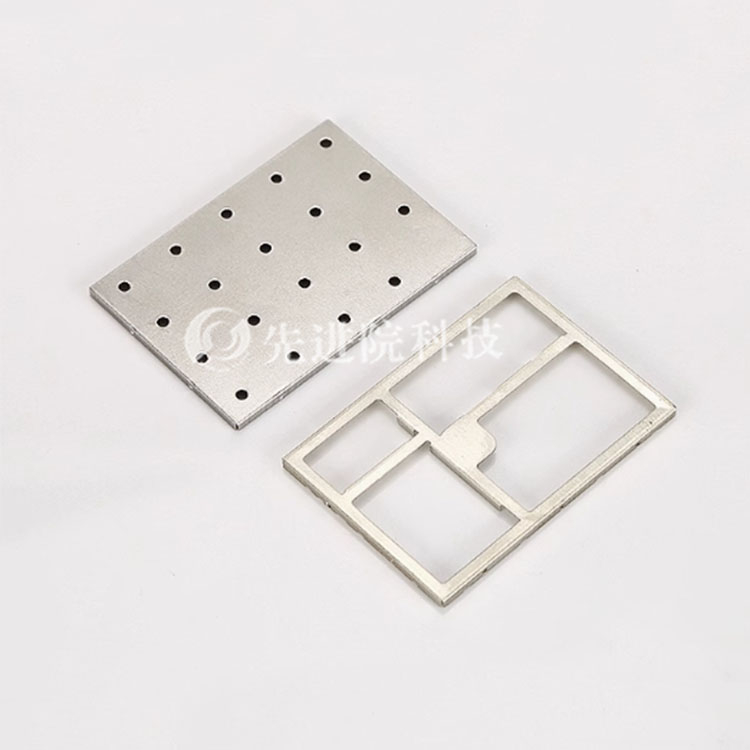

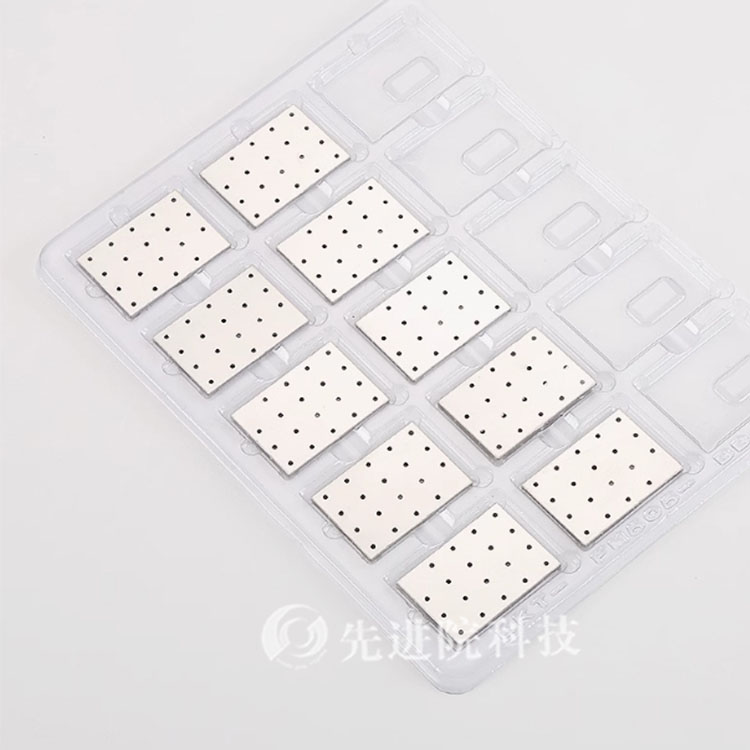

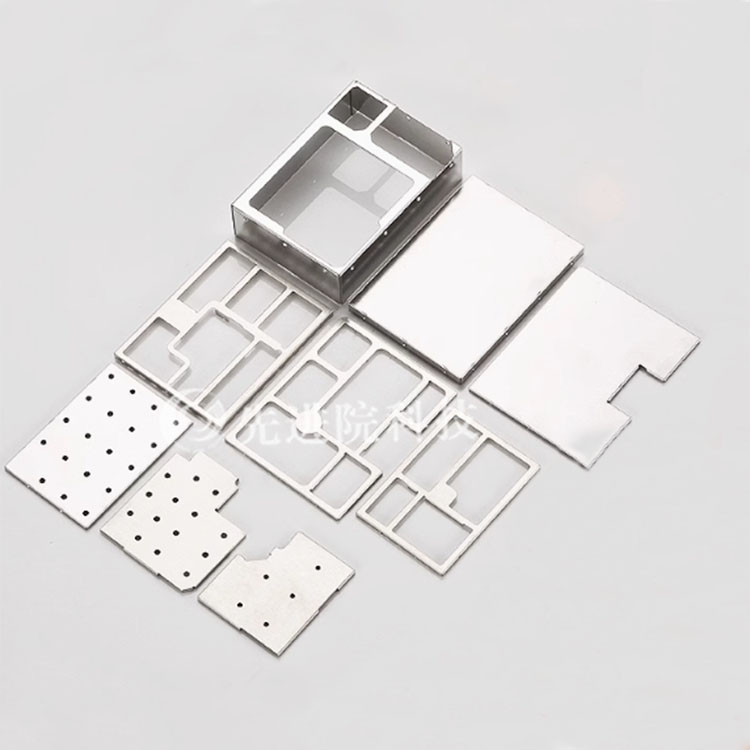

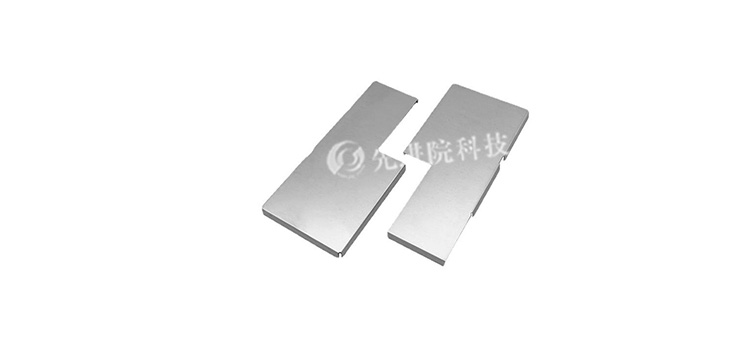

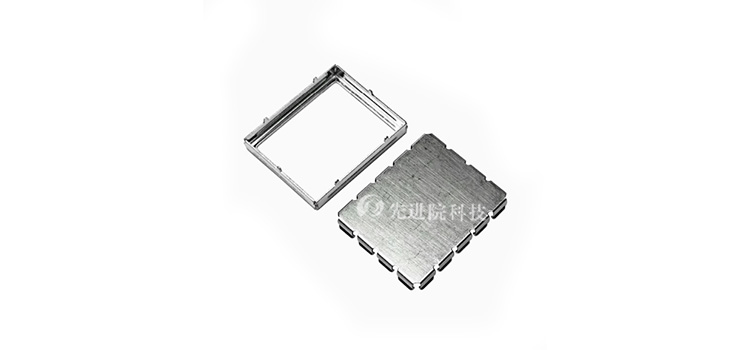

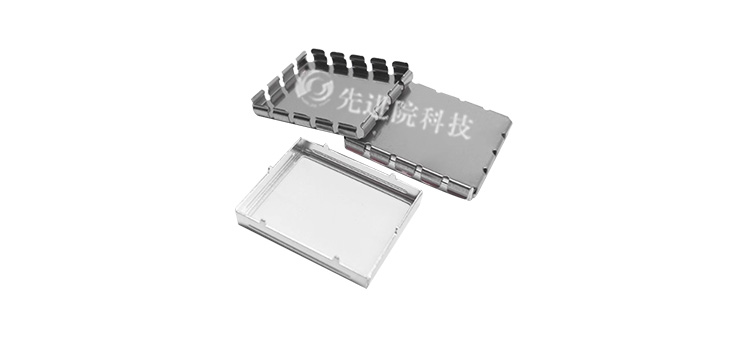

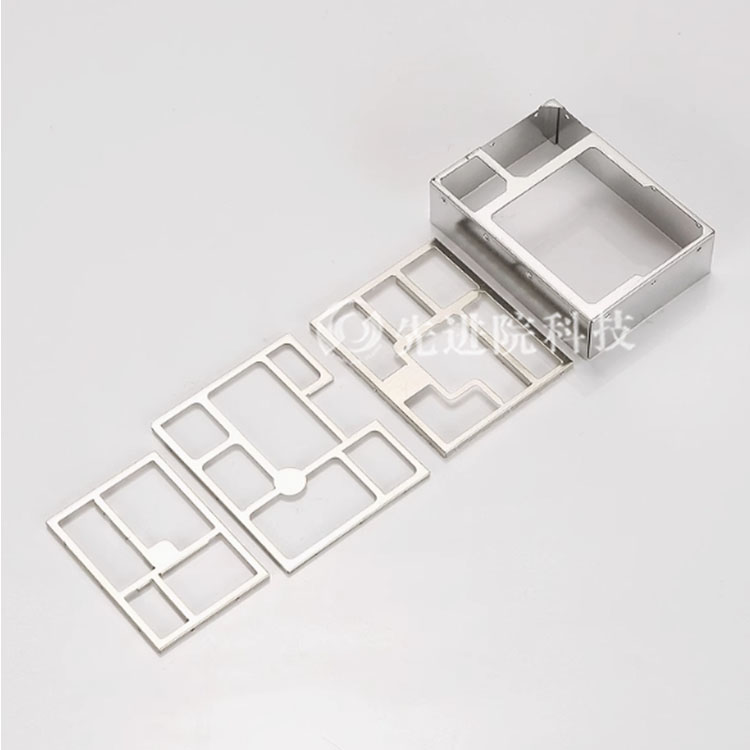

Mobile motherboard shielding cover

The mobile phone motherboard shielding cover is an alloy metal cover, usually made of stainless steel, phosphor bronze, or other metal materials. It is tightly attached to the mobile phone motherboard through a specific structural design, enclosing sensitive electronic components, circuits, and cables on the motherboard to form a shielding layer.

Material characteristics

1. Conductivity:
   • Mobile phone motherboard shielding covers are usually made of metal materials such as stainless steel, aluminum alloy, copper alloy, etc. These materials have good conductivity and can effectively shield electromagnetic interference.
2. Mechanical properties:
   • Metal materials have high mechanical strength and rigidity, which can protect internal components from physical impacts and vibrations.
3. Corrosion resistance:
   • Most mobile phone motherboard shields undergo surface treatment (such as nickel plating, tin plating, silver plating, etc.) to improve their corrosion resistance and extend their service life.
4. Heat dissipation:
   • Metal materials have good thermal conductivity, which helps with heat dissipation, prevents motherboard overheating, and thus improves equipment stability and lifespan.
5. Customizability:
   • The mobile motherboard shielding cover can be customized according to specific needs to accommodate motherboards of different sizes and shapes and their layouts.

major role

1. Electromagnetic shielding: The mobile phone motherboard shielding cover can effectively shield electromagnetic interference from the inside and outside of the phone, protect electronic components on the motherboard from interference, and ensure the stability and accuracy of mobile phone signal transmission.

2. Electrostatic protection: In complex circuit board environments, the accumulation of static electricity may cause damage to microelectronic components. The mobile phone motherboard shielding cover helps prevent static electricity accumulation and discharge, protecting electronic components on the motherboard from static electricity damage.

3. Short circuit prevention: The shielding cover can also physically isolate different circuit parts to prevent short circuits between components that should not be in contact with each other, thereby ensuring the safety of the mobile phone circuit.

4. Heat dissipation management: Some types of shielding covers also have certain heat dissipation functions. Through their metal materials and special design, they help to disperse the heat generated by components on the motherboard, ensuring the stability of the phone during long-term operation.

Material selection

The material selection of the mobile phone motherboard shielding cover has a significant impact on its performance. Common materials include stainless steel, phosphor bronze, and tinplate. Stainless steel has good shielding effect and strength, but it is difficult to tin it; Western white copper is easy to tin and has a moderate price, but its shielding effect is slightly inferior; Tinplate has the worst shielding effect but is cheap in price. In practical applications, it is necessary to choose suitable materials based on specific needs and cost considerations.

Design and Installation

The design of a mobile phone motherboard shielding cover needs to consider multiple factors, including shielding effectiveness, structural strength, heat dissipation performance, and installation convenience. In the SMT assembly process, the shielding cover is used as a device (SMD) to complete the soldering work, and it is necessary to ensure its tight fit and reliable fixation with the motherboard. During the installation process, it is necessary to avoid damaging the shielding cover and the surface coating of the motherboard to ensure welding quality and electrical performance.
