Shielding cover clip, also known as shielding cover fixing clip or shielding cover clip, is an auxiliary device that mainly functions to fix and support the shielding cover, achieving electromagnetic shielding and structural fixation effects. It effectively reduces electromagnetic interference (EMI) by fixing the shielding cover, protecting the internal circuit boards and components of electronic devices from external electromagnetic interference, thereby improving the stability and reliability of the equipment.

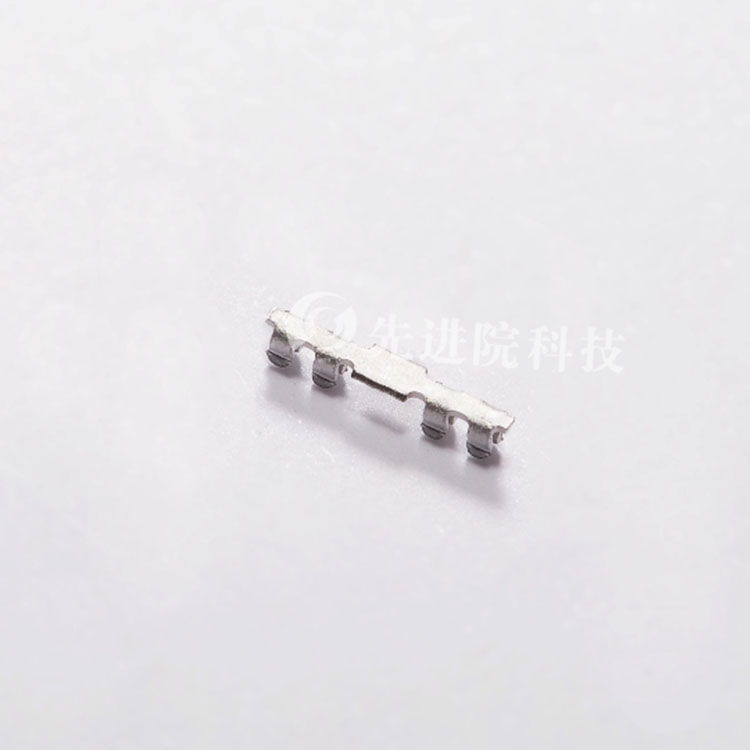

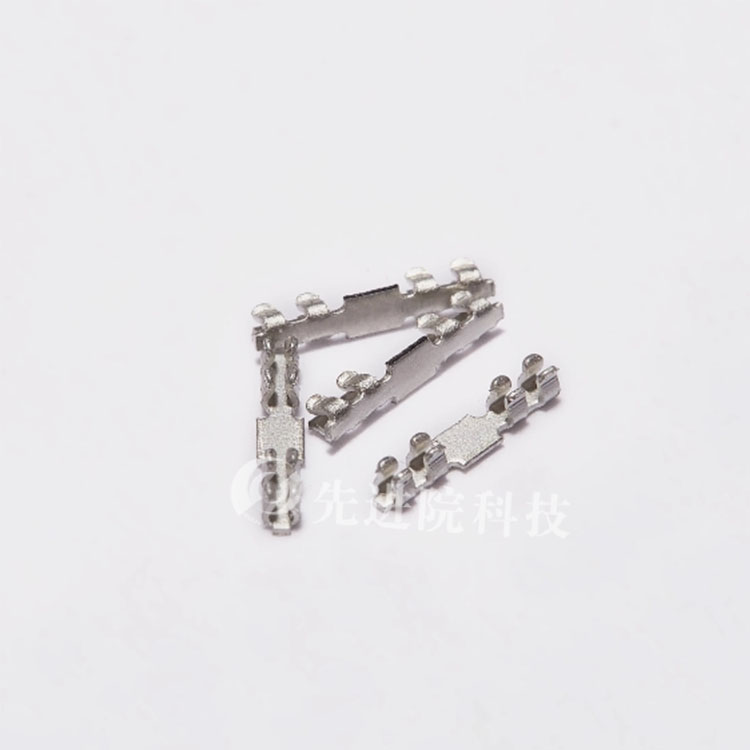

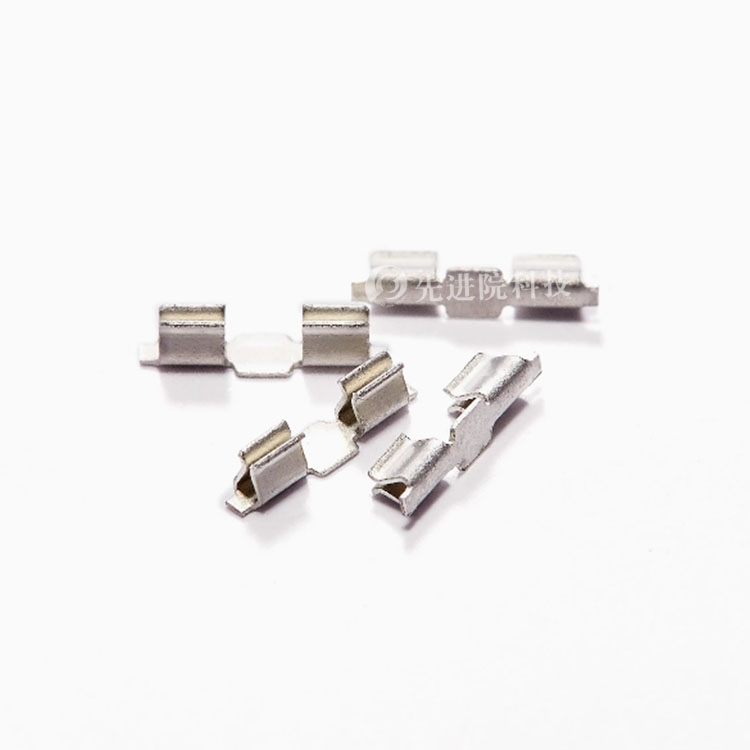

Structure and appearance
- shape
- Usually with a compact design, the shape may vary depending on the specific purpose. Common structures include a "U" or "L" shape. The U-shaped shielding cover clip can be conveniently clamped at the edge of the shielding cover, providing a stable fixing effect; The L-shaped clip may have better adaptability in the installation of shielding covers with certain special structures.
- material
- Generally, metal materials such as stainless steel are used. Stainless steel material has good conductivity, corrosion resistance, and mechanical strength. This enables the shielding cover clip to effectively conduct electromagnetic signals in electronic devices while resisting corrosion caused by environmental factors, ensuring its long-term service life.
function
- Fixed shielding cover

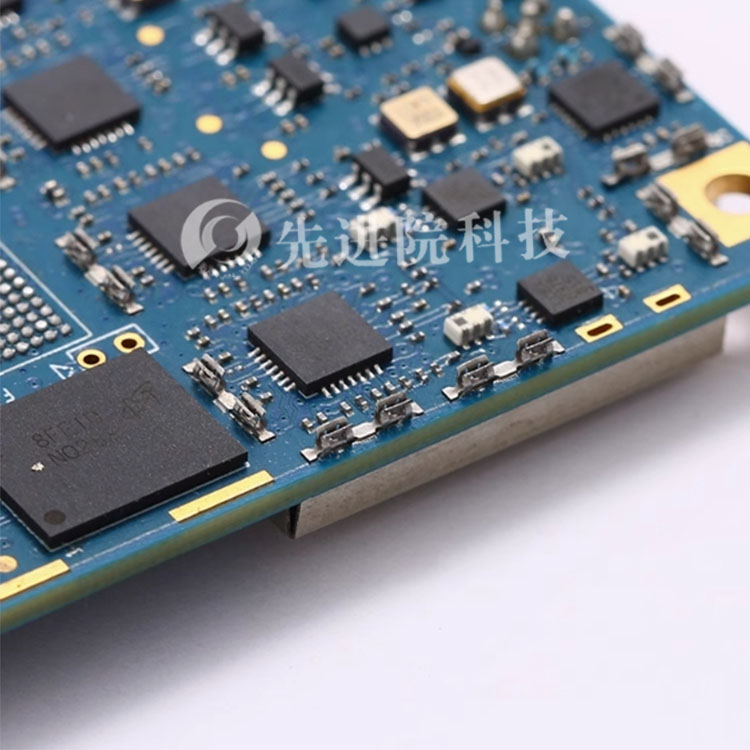

- In electronic devices, the function of a shielding cover is to prevent electromagnetic interference (EMI) and radio frequency interference (RFI). The main function of the shielding cover clip is to firmly fix the shielding cover on the circuit board or other electronic components. For example, on the motherboard of a mobile phone, there are many tiny chips and circuit components. The shielding cover covers these components, and the shielding cover clip clamps them to prevent the shielding cover from shifting due to vibration, shaking, and other factors during device use, thereby ensuring that the shielding cover can continue to effectively provide electromagnetic shielding.
- Auxiliary electromagnetic shielding
- Due to its inherent conductivity, the clip not only fixes the shielding cover, but also becomes a part of the electromagnetic shielding system. It can ensure a good electrical connection between the shielding cover and the circuit board or other grounding components, forming a complete electromagnetic shielding circuit, further enhancing the electromagnetic compatibility (EMC) of the entire electronic device.
Application scenarios
- Consumer electronic devices
- Widely used in devices such as smartphones, tablets, laptops, etc. These devices have compact internal space, highly integrated electronic components, and high requirements for electromagnetic compatibility. The shield clamp can ensure stable installation of the shield in a limited space, thereby improving the performance and stability of the equipment.
- communication devices
- For example, the circuit board in base station equipment contains a large number of high-frequency signal processing circuits. The shielding cover clip is used to fix the shielding cover, prevent external electromagnetic signals from interfering with the base station circuit, and also avoid the leakage of the base station's own electromagnetic signals, which may affect the normal operation of other electronic devices around it.
- Industrial Control Equipment
- On the circuit boards of some industrial automation control systems, such as PLCs (Programmable Logic Controllers) and other equipment, shielding clamps help protect internal circuits from complex electromagnetic interference sources in the factory environment, such as electromagnetic interference generated by large motors, welding machines, and other equipment.
