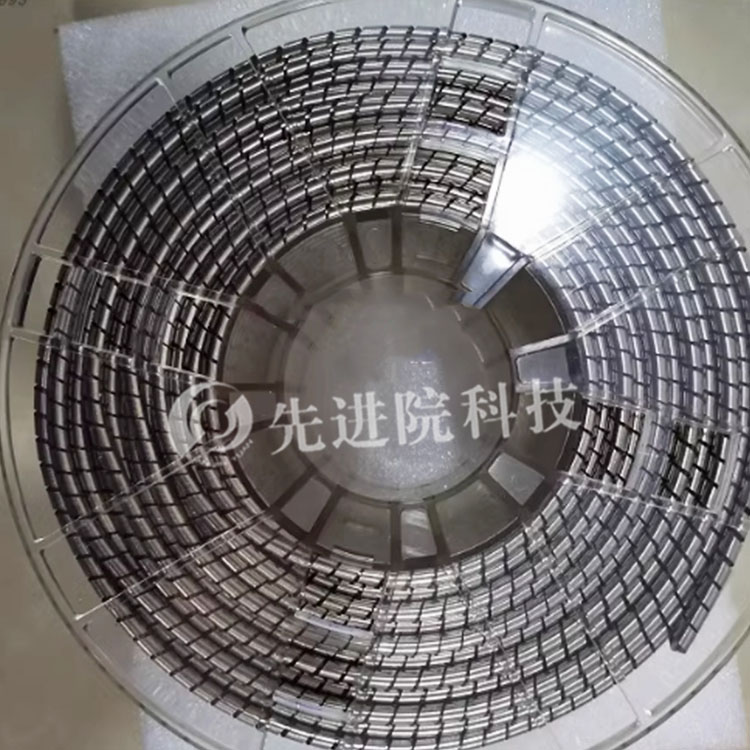

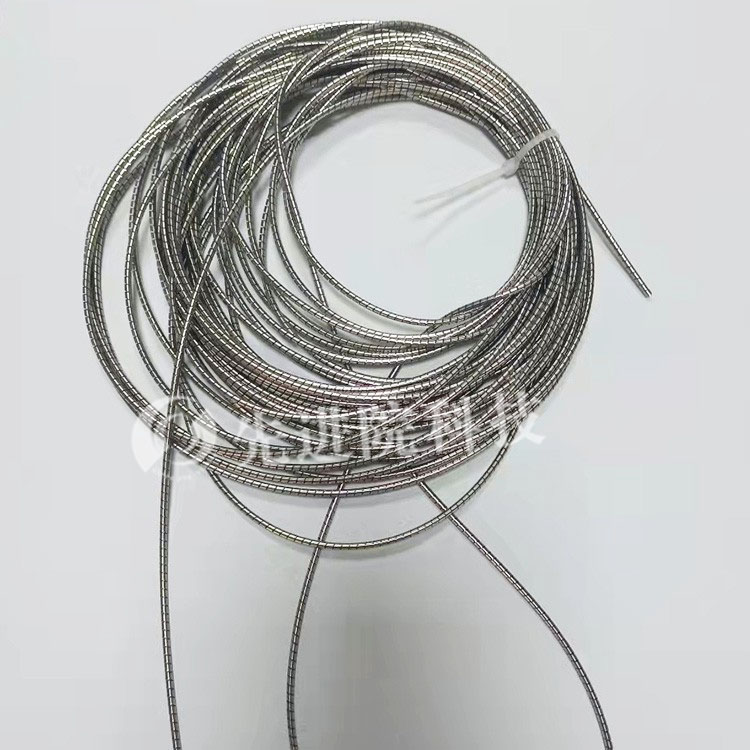

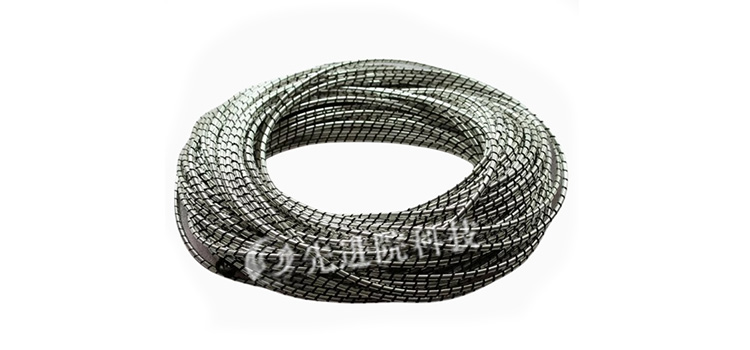

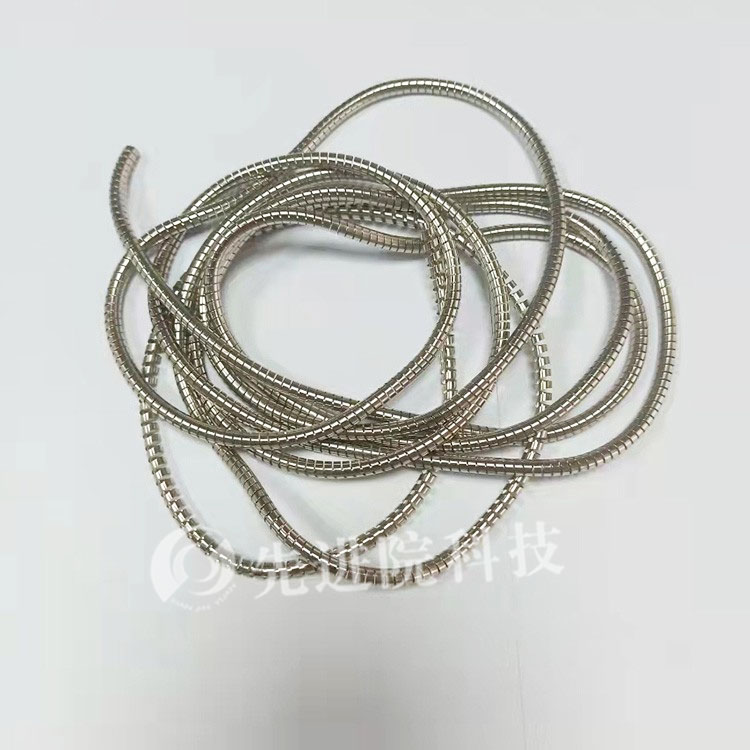

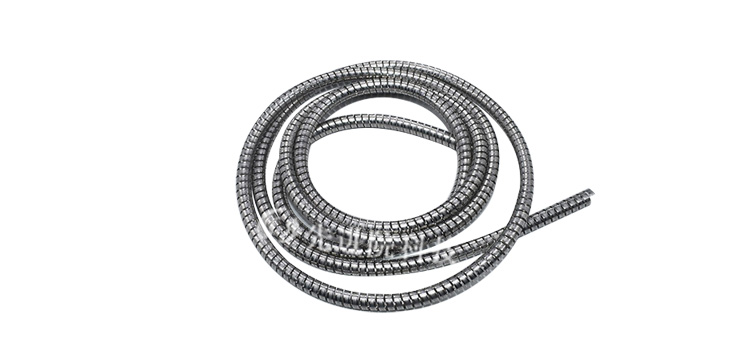

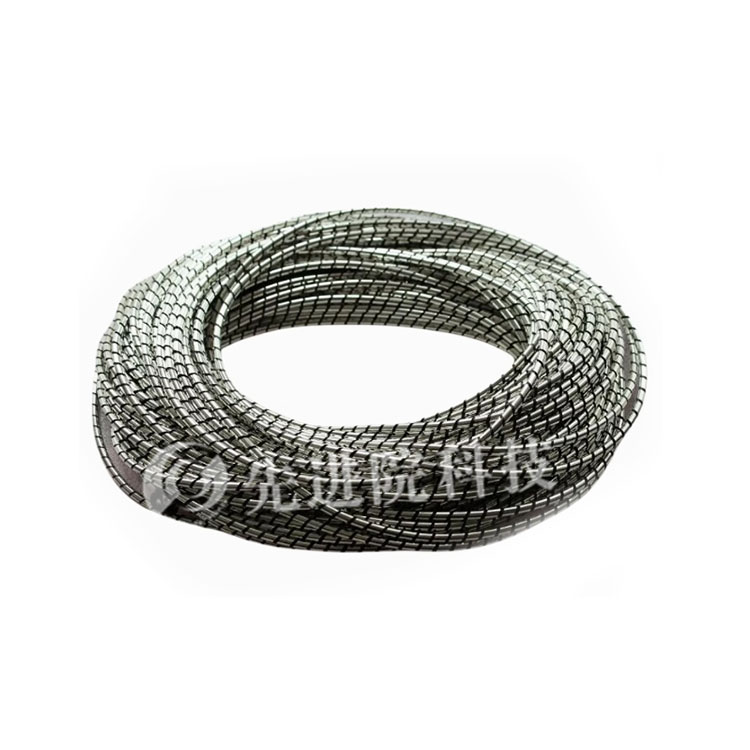

Spiral tube electromagnetic shielding gasket

Main types

Spiral tube electromagnetic shielding pads mainly include two types: hollow core spiral tube shielding pads and solid core spiral tube shielding pads.

1. Hollow spiral tube shielding pad: The structural design of this pad gives it excellent elasticity, which can adapt to gaps of different shapes and sizes, ensuring a tight fit with the equipment and effectively blocking electromagnetic wave leakage. In addition, it can prevent water, dust, and air from entering. As a sealing elastic material, it combines the advantages of shielding gaskets and sealing gaskets.
2. Solid core spiral tube shielding gasket: Compared with hollow core spiral tube shielding gasket, solid core spiral tube shielding gasket is more compact in structure, with higher strength and stability. It also has excellent electromagnetic shielding performance and is suitable for various occasions that require high-strength electromagnetic shielding.

Material composition

The main materials for spiral tube electromagnetic shielding pads include metal materials such as stainless steel and beryllium copper, as well as elastic materials such as silicone rubber. The selection and combination of these materials determine the electromagnetic shielding performance, elasticity, and durability of the pad.

1. Metal materials: Metal materials such as stainless steel and beryllium copper have good conductivity and shielding effect, which can effectively block the propagation of electromagnetic waves.
2. Elastic material: Elastic materials such as silicone rubber endow the spiral tube electromagnetic shielding gasket with good elasticity and sealing properties, enabling it to adapt to gaps of different shapes and sizes and ensure a tight fit with the equipment.

Performance characteristics

1. Efficient shielding: The spiral tube electromagnetic shielding gasket has excellent electromagnetic shielding performance, which can effectively block the propagation of electromagnetic waves, prevent electromagnetic interference and leakage.
2. Good elasticity: The elastic design of the pad allows it to adapt to gaps of different shapes and sizes, ensuring a tight fit with the equipment and improving the stability of the shielding effect.
3. Strong durability: the spiral tube electromagnetic shielding liner is made of high-quality materials, which has good durability and anti-aging performance, and can maintain a stable shielding effect for a long time.
4. Easy to install: The installation process of the pad is simple and convenient, without the need for complex tools and processes, which can save installation time and costs.

application area

Spiral tube electromagnetic shielding pads are widely used in various applications that require electromagnetic shielding, such as electronic equipment, communication equipment, military equipment, aerospace and other fields. In these fields, spiral tube electromagnetic shielding pads can effectively improve the electromagnetic compatibility and anti-interference ability of equipment, ensuring the normal operation of equipment and the safety of data.
