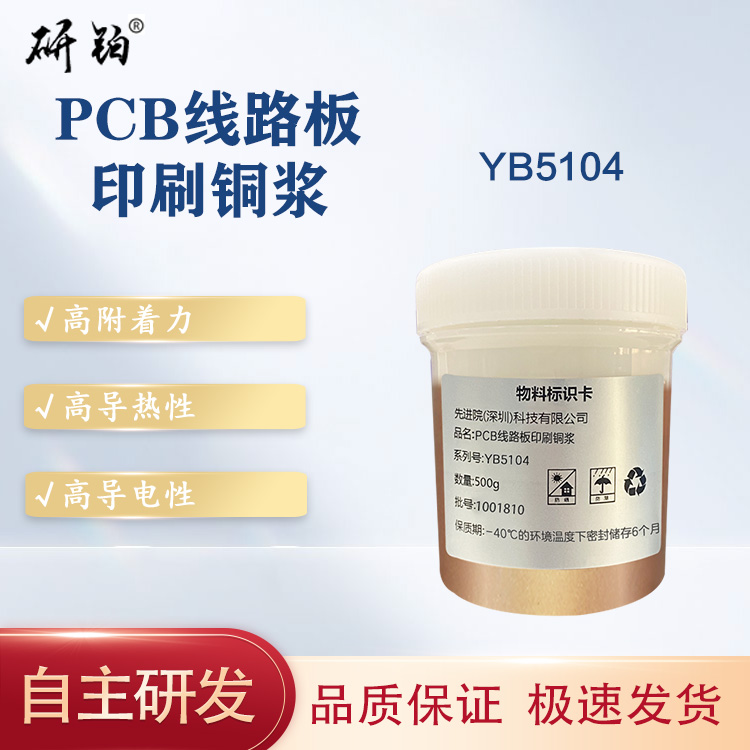

Printed copper paste for PCB circuit board
  • Printed copper paste for PCB circuit board
  • Printed copper paste for PCB circuit board
  • Printed copper paste for PCB circuit board
  • Printed copper paste for PCB circuit board
  • Printed copper paste for PCB circuit board

Printed copper paste for PCB circuit board

PCB printed copper paste is a conductive material used in screen printing technology, which can be directly applied to circuit boards to form complex conductive patterns. It has good printing adaptability and can form clear lines and graphics on various substrates. This copper paste contains high-purity copper powder, which can provide excellent conductivity and mechanical strength after curing, making it an ideal choice for achieving fast and low-cost PCB manufacturing
Hotline

+86-13826586185

PCB printed copper paste is a high-performance conductive material designed specifically for the printing of conductive lines in the manufacturing process of printed circuit boards (PCBs). It is made by combining high-purity copper powder with a specially designed resin matrix through fine stirring and dispersion processes. This product has excellent conductivity, adhesion, and processing performance, ensuring precise, stable, and efficient conductive lines on PCB circuit boards.

铜浆

Product characteristics

  1. High conductivity: High copper powder content and low resistivity ensure excellent conductivity of the conductive line.
  2. Strong adhesion: A strong bond is formed between the resin substrate and the PCB substrate, and the printed copper paste is stably attached to the substrate without easy detachment.
  3. Excellent processability: It has good fluidity and thixotropy, suitable for various printing processes such as screen printing, and facilitates precise control of line width and thickness.
  4. High temperature resistance: able to maintain stable conductivity in high temperature environments, suitable for high-temperature curing processes in PCB manufacturing.
  5. Environmentally friendly and pollution-free: The product meets environmental standards and does not release harmful gases during use, making it environmentally friendly.

Product advantages

  1. Improving Line Quality: High conductivity and strong adhesion ensure the quality of conductive lines, reducing line failures and maintenance costs.
  2. Improve production efficiency: Excellent processing performance facilitates large-scale production and enhances production efficiency.
  3. Cost reduction: Compared to other conductive materials, printed copper paste has a cost advantage and helps to reduce PCB manufacturing costs.
  4. Enhance product reliability: High temperature resistance and environmental friendliness ensure the stability of PCB circuit boards in high-temperature environments and environmental friendliness during long-term use.

 PCB线路板印刷铜浆
application area

PCB printed copper paste is widely used in the field of PCB manufacturing in the electronics industry, including but not limited to the production of PCB circuit boards for various electronic products such as computer motherboards, mobile phone circuit boards, automotive electronics, and industrial control equipment.
