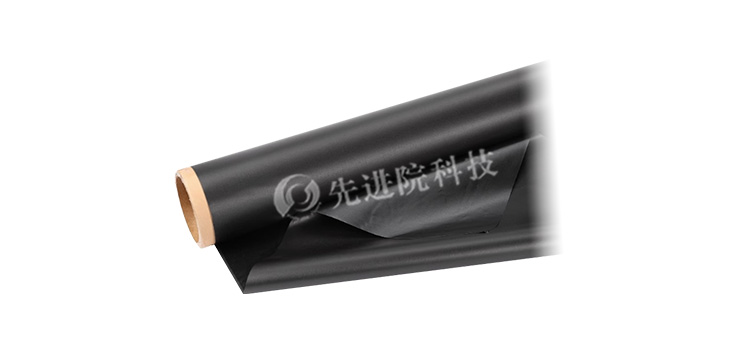

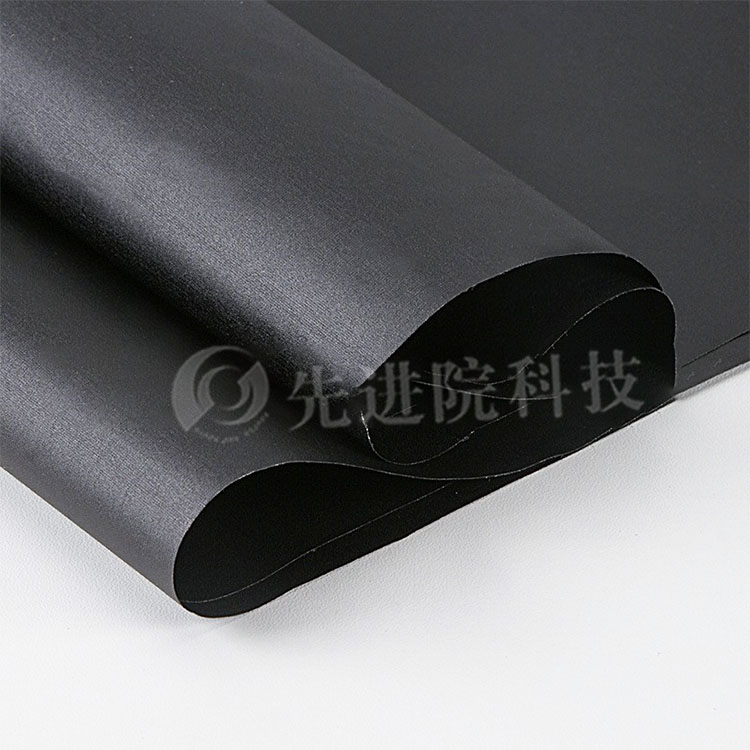

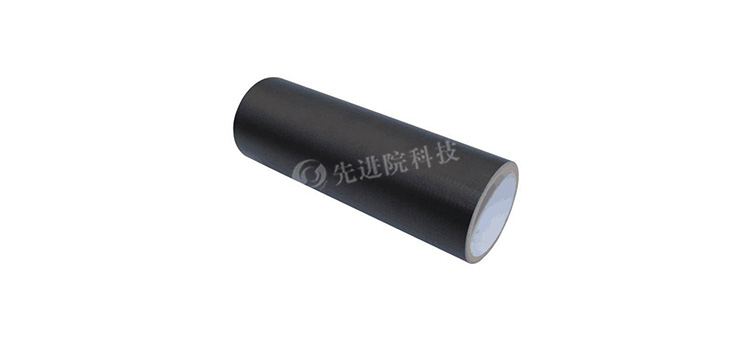

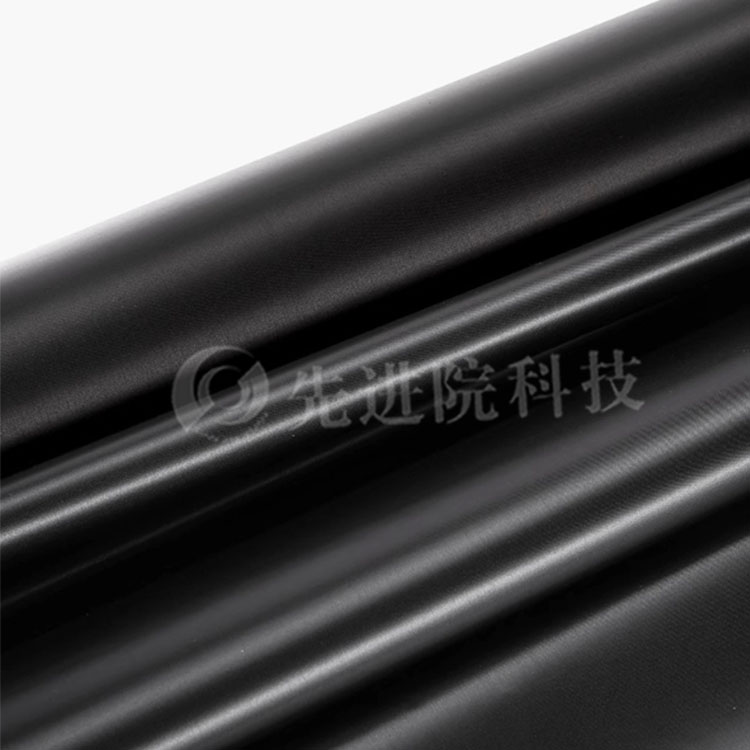

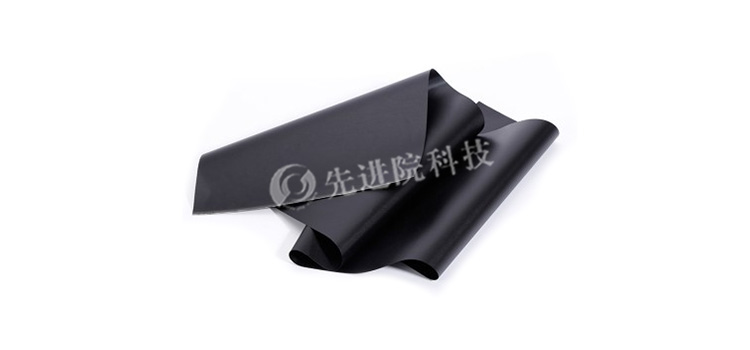

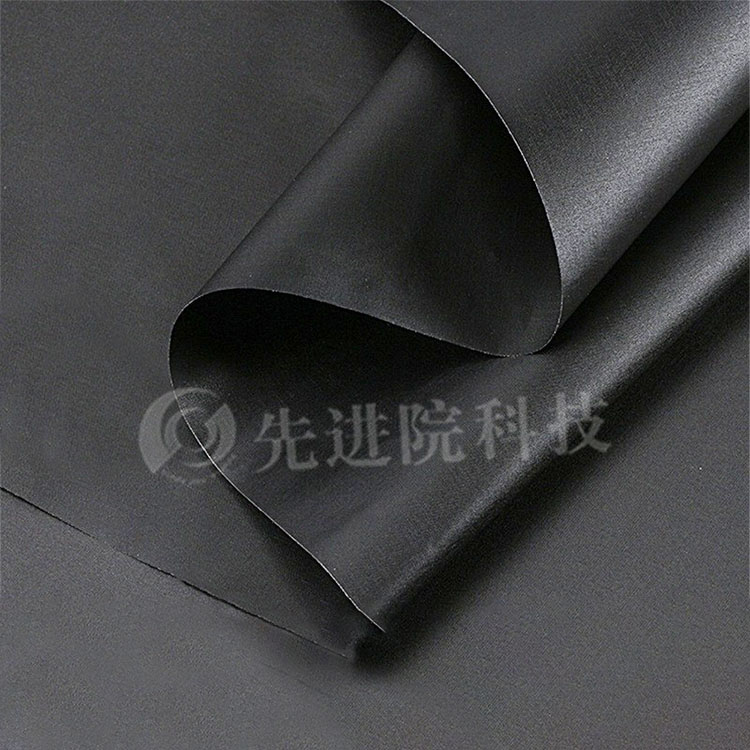

Double sided black conductive cloth

Structure and Composition

1. Conductive fiber
   • Double sided black conductive cloth is usually based on fibers, which may be common textile fibers such as polyester fibers. Mixing or coating conductive substances such as metals (such as nickel, copper, etc.) or conductive carbon materials on the surface of fibers. These conductive substances can give fabrics conductivity.
2. black coating
   • Both sides have a black coating or treatment. On the one hand, black coating can enhance the conductivity of fabrics, and on the other hand, black is due to the addition of carbon based conductive materials or special dyeing and coating processes, making it appear black in appearance. This black appearance has unique advantages in some application scenarios, such as inside electronic devices, where black can better blend with the internal environment of the device and reduce light reflection.

Performance characteristics

1. Conductivity
   • It can effectively conduct current, which makes it crucial in applications such as electromagnetic shielding. In environments with dense electronic devices, double-sided black conductive cloth can conduct static electricity or electromagnetic interference, preventing damage to other electronic components. For example, inside electronic devices such as mobile phones and computers, double-sided black conductive cloth can wrap around some components that are prone to electromagnetic interference, such as chips, circuit boards, etc., to enable the device to operate normally.
2. Flexibility and processability
   • As a fabric like material, it has good flexibility. It can be easily cut, sewn, or pasted onto surfaces of various shapes. This characteristic makes it very suitable for electromagnetic shielding treatment of some irregularly shaped electronic devices or components. For example, on some electronic components with curved surfaces, double-sided black conductive cloth can be tightly adhered to ensure electromagnetic shielding effect.
3. shielding effectiveness
   • Capable of effectively shielding electromagnetic waves. The shielding effectiveness is usually related to factors such as the conductivity and thickness of the conductive cloth. Generally speaking, higher conductivity and appropriate thickness can improve its shielding effectiveness. In some applications that require high electromagnetic compatibility, such as aerospace, medical equipment, etc., double-sided black conductive cloth can provide a reliable electromagnetic shielding solution.

application area

1. Manufacturing of electronic devices
   • Double sided black conductive cloth is widely used for electromagnetic shielding in the production of electronic devices such as smartphones, tablets, and laptops. It can prevent electromagnetic interference between different circuits inside the device, improve the performance and stability of the device. For example, wrapping double-sided black conductive cloth around the motherboard of a mobile phone can reduce electromagnetic crosstalk between different chips on the motherboard, making the phone's call quality, signal reception, and other functions more stable.
2. Automotive Electronics
   • There are more and more electronic devices in modern cars, such as car navigation systems, car audio systems, etc. Double sided black conductive cloth can be used for electromagnetic shielding of these automotive electronic devices, preventing external electromagnetic interference from affecting the automotive electronic system, and also preventing mutual interference between internal electronic devices in the car. In addition, double-sided black conductive cloth can also be used for protection around some precision electronic components such as sensors in cars.
3. medical equipment
   • Medical equipment has high requirements for electromagnetic compatibility, as electromagnetic interference may affect the accuracy of the equipment and even pose risks to the health of patients. Double sided black conductive cloth can be used for electromagnetic shielding of some small medical equipment, such as portable blood glucose meters, heart rate monitors, etc., to ensure the accuracy and reliability of the equipment during use.
