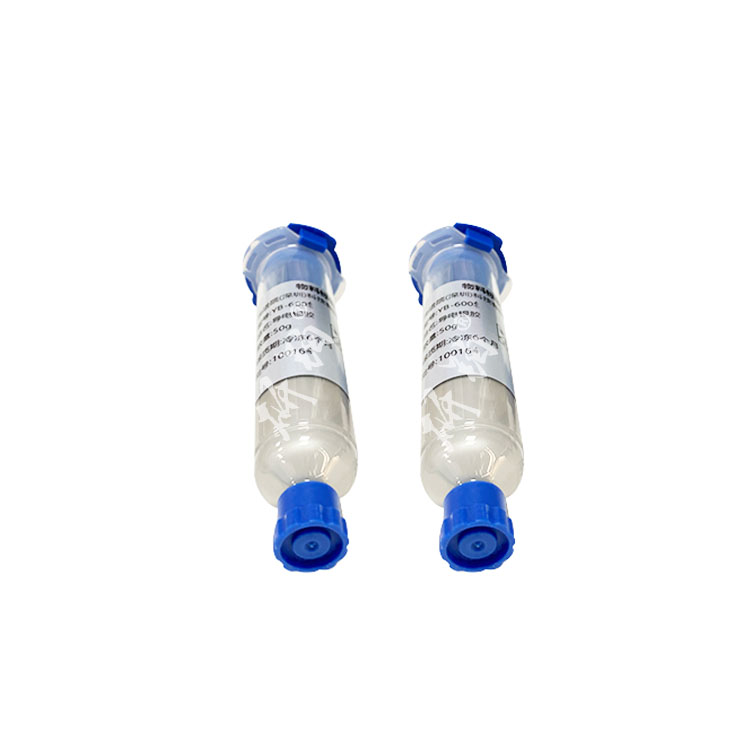

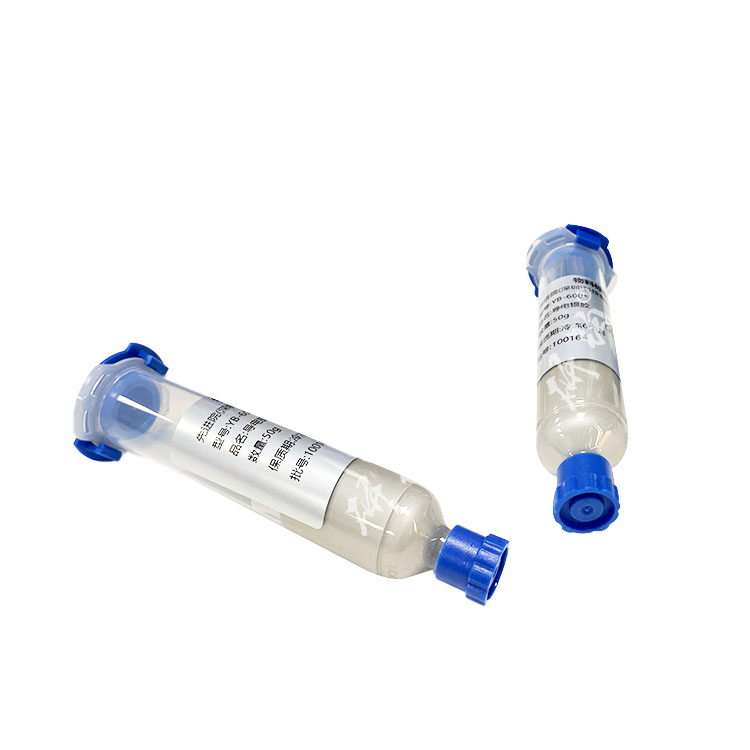

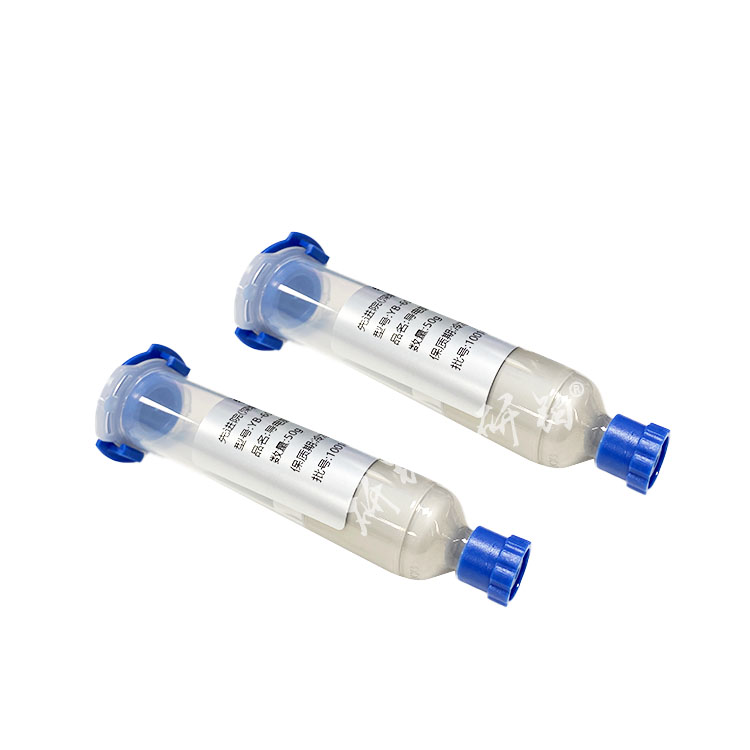

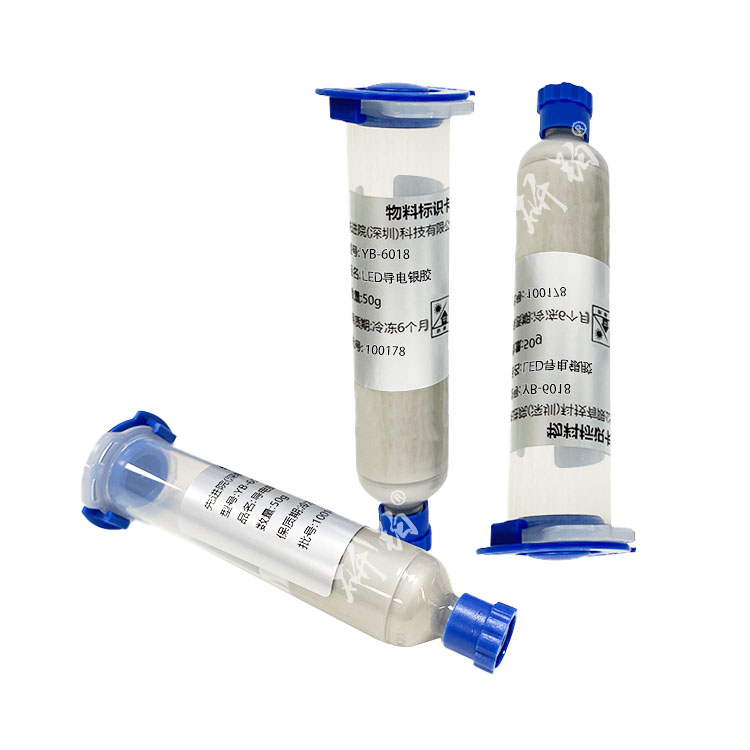

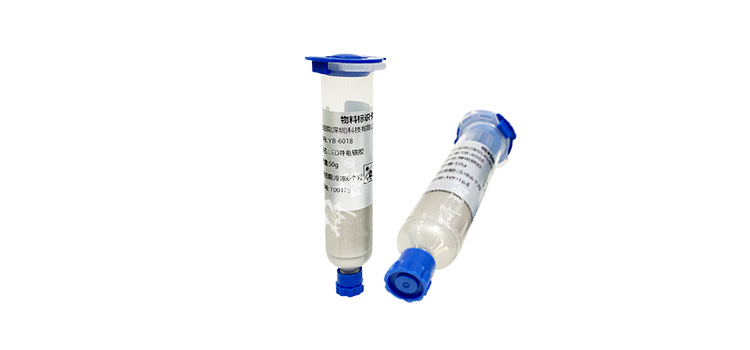

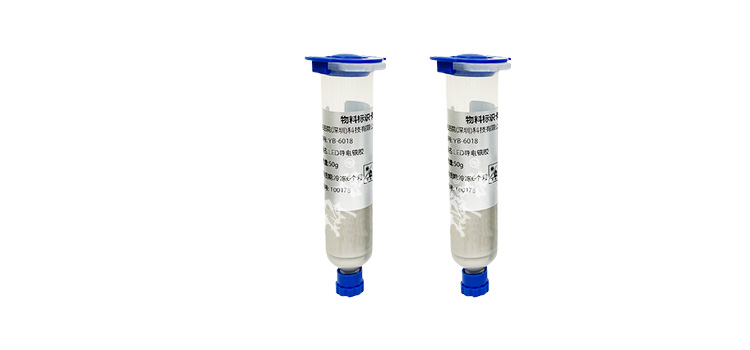

LED conductive silver adhesive

LED conductive silver adhesive is a high-performance conductive adhesive designed specifically for LED packaging. It combines the high conductivity of conductive silver paste, excellent adhesion performance, and the ability to adapt to the special process requirements of LED packaging. It can form a stable and reliable conductive connection between LED chips and substrates, ensuring the normal operation and efficient light emission of LED devices.

Product characteristics

1. High conductivity: LED conductive silver paste uses high-purity silver powder as the conductive filler, with extremely low electrical resistivity, which can ensure efficient signal transmission and current flow between LED chips and substrates.
2. Excellent adhesion performance: The resin matrix has good adhesion performance and can firmly bond LED chips with various substrate materials (such as ceramics, metals, plastics, etc.), ensuring that they are not easily detached during the packaging process and improving the reliability and stability of the packaging.
3. High temperature resistance: LED conductive silver paste usually has excellent high temperature resistance, which can withstand high temperature environments during the operation of LED devices without failure, ensuring the long-term stability and service life of LED devices.
4. Good processability: LED conductive silver adhesive has good fluidity, thixotropy, and operability, which can adapt to different packaging process requirements, such as glue dispensing, screen printing, etc., facilitating the integration of automated production lines and improving production efficiency.
5. Environmental friendliness: LED conductive silver paste usually complies with environmental standards such as RoHS, does not contain harmful substances, is harmless to human health and the environment, and meets the requirements of modern industry for environmental protection.

Application scope

1. High power LED packaging: used to connect high-power LED chips with heat dissipation substrates, ensuring efficient heat dissipation and stable operation of the chips.
2. Low power LED packaging: used to connect low-power LED chips with substrates, achieve conductive connection and packaging protection of LED devices.
3. LED display screen packaging: used in the manufacturing process of LED displays to connect LED beads with PCB boards, ensuring the normal display and stable operation of the display screen.
4. In other LED applications such as LED lighting fixtures, LED backlight sources, LED automotive electronics, etc., LED conductive silver adhesive also plays an important role.
