Flexible composite film produced by vacuum magnetron sputtering PI PET PP OPP CPP PE copper plated gold silver nickel film (single-sided/double-sided) roll to roll horizontal continuous electrodeposition production line

1PI copper plated film(Single/Double sided) Product Introduction:

This product is produced using a self-developed roll to roll horizontal continuous electrodeposition production line based on vacuum magnetron sputteringFlexible composite filmThe thickness of PI film and copper foil is extremely thin, suitable for low profile of ultra-fine lines, suitable for high-frequency and high-speed signal transmission, with extremely high dimensional stability, heat resistance, excellent chemical resistance, outstanding mechanical and electrical properties, and customizable size.

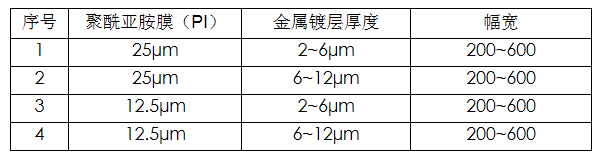

2、 Product specifications:

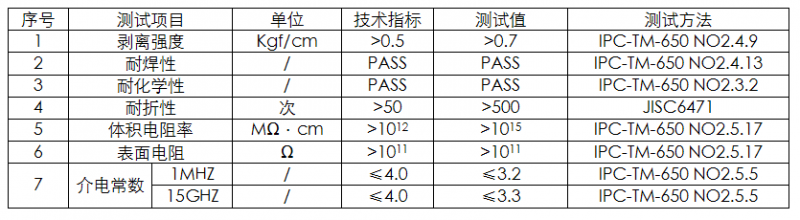

3、 Product performance:

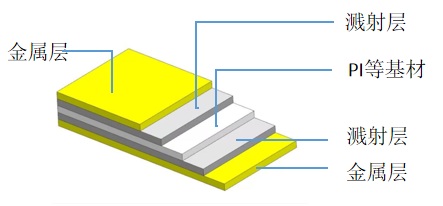

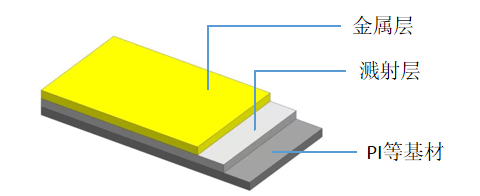

Single sidedtwo-sided

4、 Application scope:

        FCCL2L-FCCL is a substrate for flexible printed circuits (FPC), which has the characteristics of light, thin, and flexible, catering to the trend of lightweight, thin, short, and small electronic information products. It is widely used in fields such as computers, consumer electronics, automotive electronics, industrial control, instrumentation, medical equipment, aerospace, and military industry.

5、 Enterprise scale:

Advanced Institute Company currently ownsFlexible material PI (PET, etc.) film copper platingTwo copper foil tin plating lines, one galvanized rolling plating line, and nickel plating production lines are currently under design and development. It is expected that the total annual surface coating amount will be over 500000 square meters, mainly engaged in surface electroplating treatment of flexible materials (such as PI film, PET film, copper foil, stainless steel foil, etc.). The company adopts advanced production and testing equipment, mainly including pure water machine, chiller, ultrasonic cleaning machine, salt spray tester, square resistance tester, EDX tester, high and low temperature alternating wet heat test chamber, cold and hot impact test chamber, etc.
