Satisfy military chassis, communication cabin, EAP reinforced cellular waveguide electromagnetic shielding ventilation board

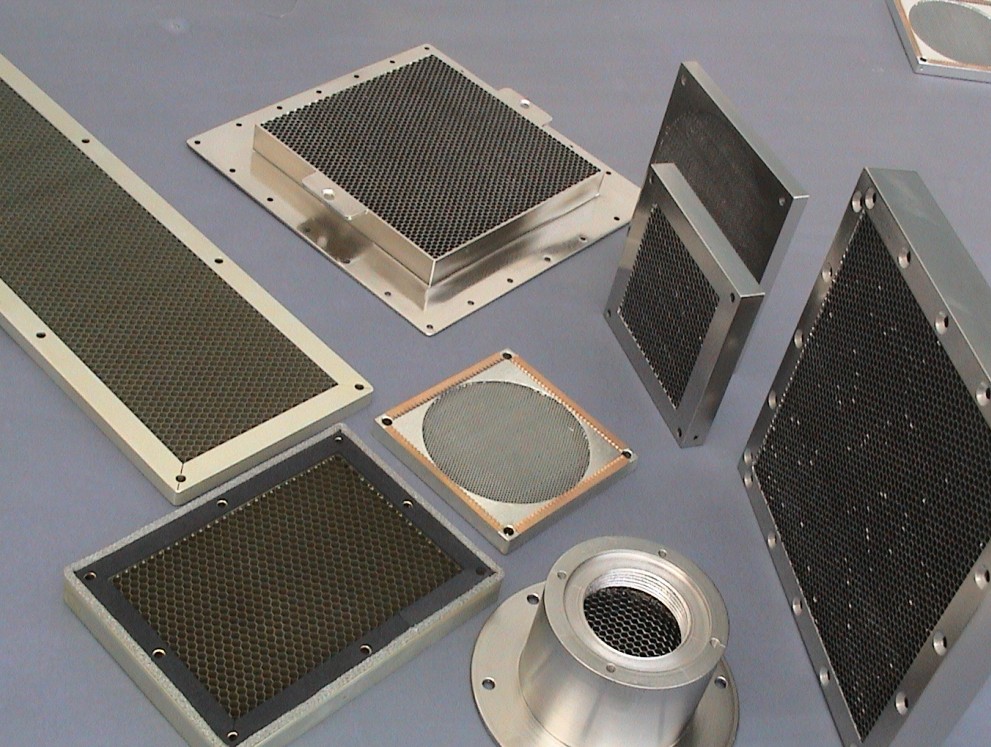

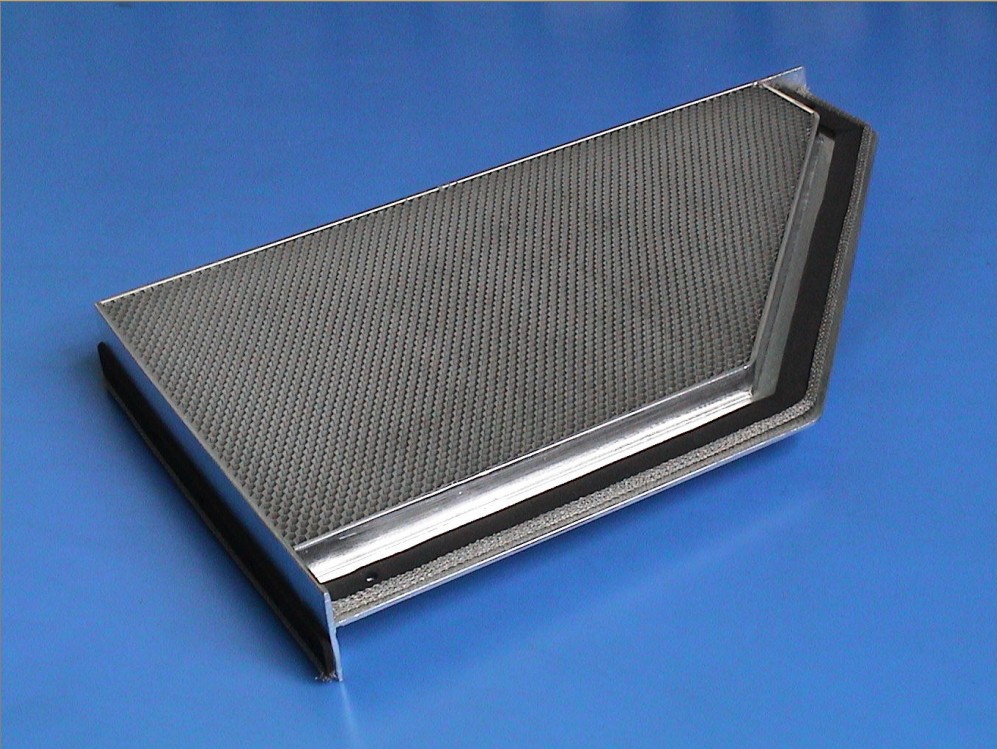

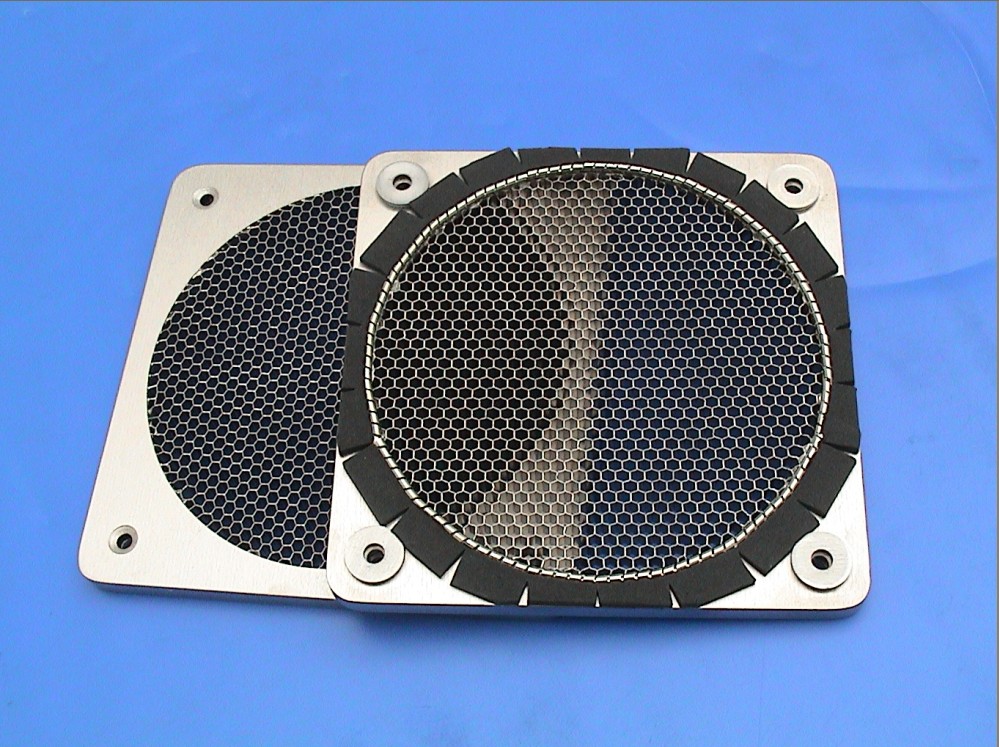

Honeycomb waveguide electromagnetic shielding ventilation boardIt is a series of high-performance electromagnetic shielding ventilation boards specially designed and developed to meet the needs of military chassis, communication shelters, EAP reinforcement, TEMPEST equipment, and more. This series of ventilation panels can meet environmental resistance requirements through surface treatments such as chemical nickel plating and electroplating tin. There are various series of installation frame structures to choose from (including circular installation ports, irregular shapes, rainproof, etc.).

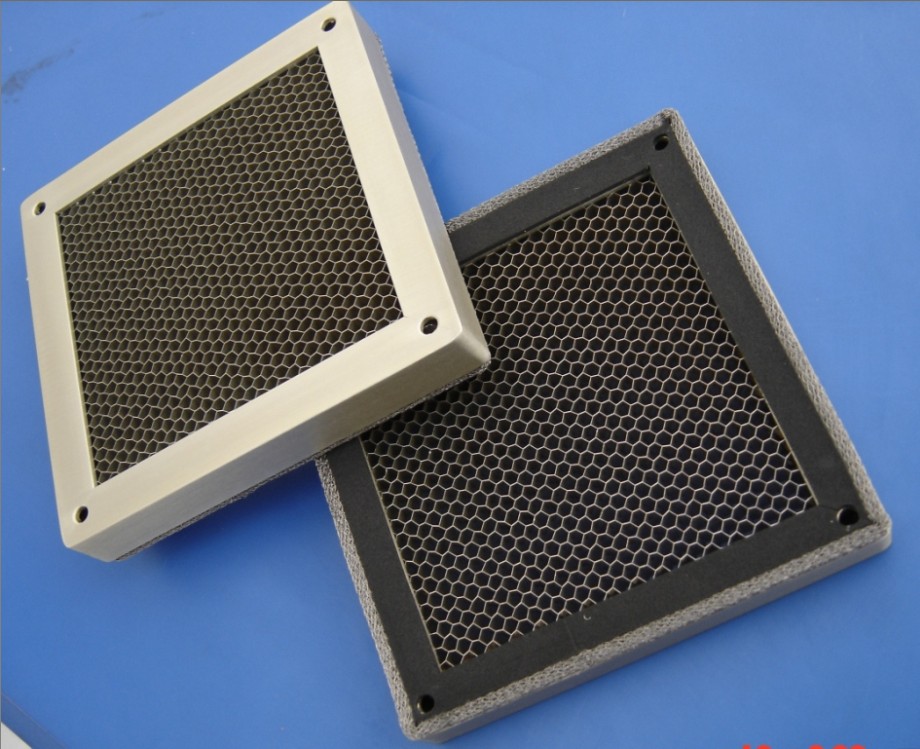

Aluminum honeycomb electromagnetic shielding ventilation board

The aluminum honeycomb waveguide electromagnetic shielding ventilation board is made of high-quality aluminum honeycomb and aluminum alloy extruded or spun frame profiles mechanically connected together, which has good shielding effectiveness and ventilation characteristics, and is lightweight. Mainly used for civilian communication, testing equipment, computers, medical equipment, etc.

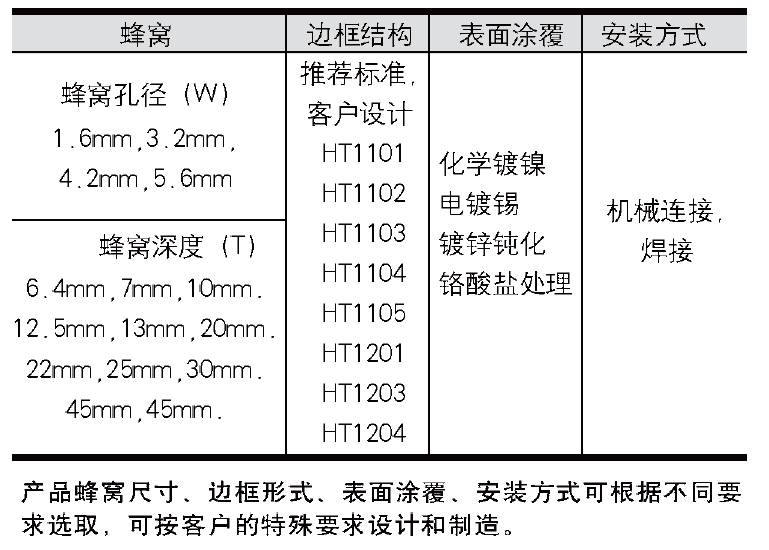

The honeycomb material is 5052 or 3003 aluminum alloy, with a thickness of 0.04-0.06mm The frame material is 6063-T4 aluminum profile or stainless steel. Surface coating: chromate oxidation, electroless nickel plating, electroplating tin plating. Multi layer dust-proof electromagnetic shielding ventilation boards can also be customized according to customer needs.

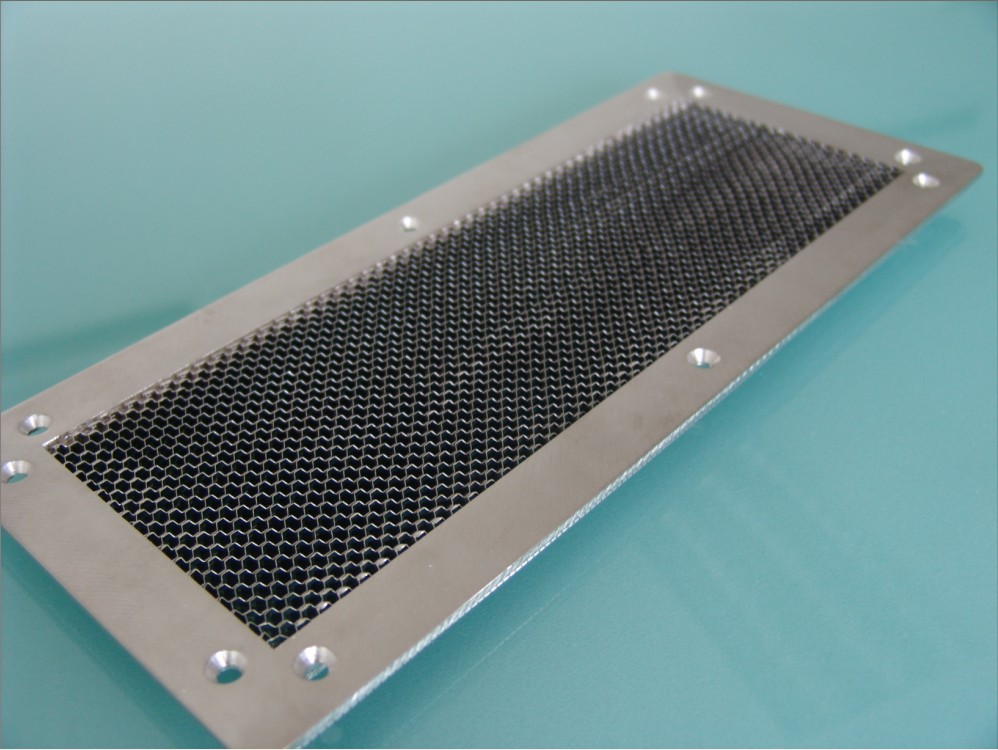

Steel honeycomb shielding ventilation board

      Steel honeycomb shielding ventilation boardIt is a fully welded structural steel honeycomb electromagnetic shielding ventilation board designed and manufactured specifically for shielded rooms and microwave anechoic rooms. The proprietary manufacturing technology ensures that all interfaces of the honeycomb core and frame form continuous and strong electrical and mechanical connections. This series of products is usually installed by welding or soldering with shielding chambers, and can also be installed using screws. The surface has been treated with rust proof spray paint.
