| project | unit | YB163 | YB351 | YB409 |
| Recommended printing process | - | ink jet | Glue printing | screen print |
| Silver concentration | wt % | 50 | 63 | 67 |
| Solvent composition | - | Carbon hydride/ethanol | Non water soluble solvents | Non water soluble solvent |
| Silver film thickness | µm | 0.2～1.0 | 5.0～ | 1.0～5.0 |
| Silver film width | µm | 50～ | 250～ | 50～ |
| Line resistance value (120 ℃, 30min sintering) | Ω | 300 (line width 70 µ m, line length 10cm, maximum thickness 0.3 µ m) | 2.5 (line width 300 µ m, line length 10cm, maximum thickness 10 µ m) | 315 (line width 100 µ m, line length 10cm, maximum thickness 4 µ m) |

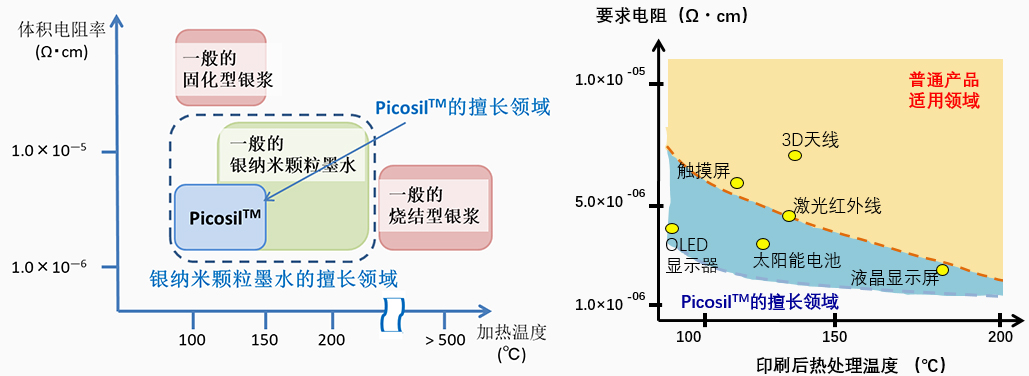

| Volume resistance 1) (120 ℃, 30min sintering) |
µΩ・cm | 7.0 | 4.2 | 6.2 |
1) OnlyOrdinary silver pasteAbout one tenth of it
Products outside the standard product number can be consulted separately, and the viscosity of the product can be adjusted according to customer needs.
The above data is for reference only and is not a specified numerical value
