Used for drying equipment, vacuum heating, traditional Chinese medicine, agricultural products, and seafood drying. Infrared PI film (electric heating film/electric heating sheet)

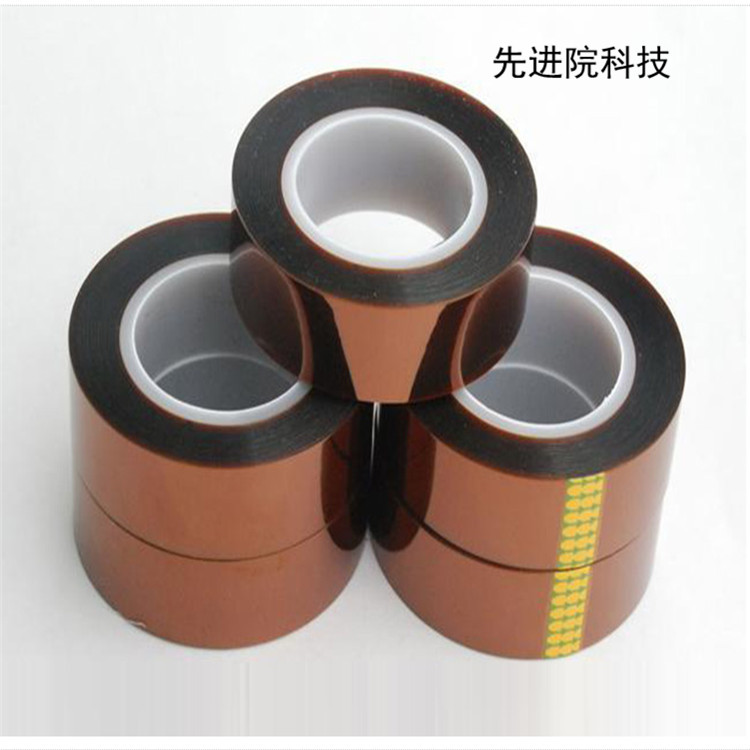

Infrared PI film(Electric heating film/electric heating element)

Main technical indicators and characteristics:

1. Appearance: The surface of the film is flat and smooth, without defects such as wrinkles, tears, particles, bubbles, pinholes, and foreign impurities. The edges are neat and undamaged.

2. Width and length: The film is supplied in rolls or discs. According to user requirements, the width and length are determined through negotiation between the supply and demand parties.

3. Relevant indicators

Test project

numerical value

Usage temperature

200 ℃ (long-term ＜ 180 ℃)

insulation voltage

≥1000VAC/MIN

ambient temperature

-50 to 300 ℃

Mechanical compressive strength

100KG/CM2

pulling

≥80N

service life

≥ 5 years

decomposition temperature

≥500℃

Product Introduction:

Advanced Institute Technology produces PET and PI low-temperature electric heating films, polyimide high-temperature electric heating films, and infrared PI films; Suitable for daily life insulation and heating, it can also be used in conjunction with various precision electronic instruments for heating solutions.

Infrared PI film has excellent high and low temperature resistance, electrical insulation, adhesion, radiation resistance, and dielectric resistance. It can be used for a long time in the temperature range of -269 ℃~280 ℃, and can reach a high temperature of 400 ℃ in a short time, making it easy to process and shape;

Product Structure/Material:

poly

Product nature/features:

01 Excellent heat resistance

The decomposition temperature of polyimide generally exceeds 500 ℃, sometimes even higher, making it one of the most thermally stable organic polymers currently known;

02 Excellent mechanical performance

The tensile strength of unreinforced matrix materials is above 100MPa, while the tensile strength of infrared PI films prepared with maleic anhydride is 170MPa, and that of biphenyl polyimide can reach 400MPa;

03 Good chemical stability

Polyimide materials are generally insoluble in organic solvents, corrosion-resistant, and resistant to hydrolysis. By changing the molecular design, different structural varieties can be obtained;

04 Good radiation resistance performance

After being irradiated with a dose of 5 * 109rad, the strength of polyimide film remained at 86%;

05 Good dielectric properties

The dielectric constant is less than 3.5. If fluorine atoms are introduced into the molecular chain, the dielectric constant can be reduced to around 2.5, the dielectric loss is 10, the dielectric strength is 100-300kv/mm, and the volume resistance is 1015-17 Ω· cm;

Product application areas:

Used in the fields of drying equipment, vacuum heating, drying of Chinese herbal medicine, agricultural and seafood products, new energy heating plates, military equipment heating, medical equipment heating, agricultural greenhouses, saunas, bathroom heating and other product areas;
