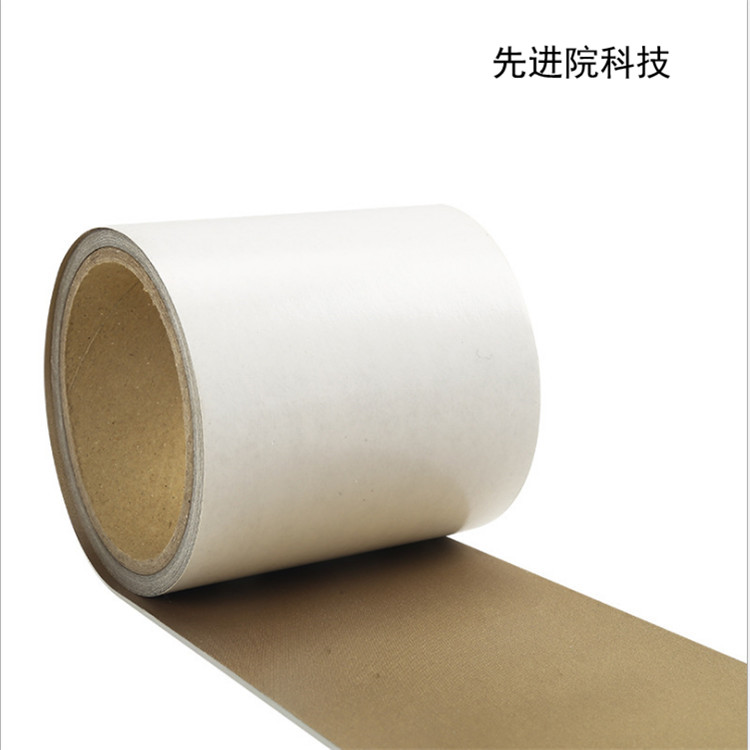

Gold plated conductive cloth tape with grid pattern, gold plated conductive cloth tape, gold plated conductive electromagnetic shielding material, and its application in electronic products

Gold plated conductive cloth tapeGrid patterned gold conductive cloth tape, gold-plated conductive electromagnetic shielding material

Brand: Advanced Institute Technology Processing Customization: Yes

Substrate thickness: 0.08mm Total thickness: 0.1mm, 0.15mm

Color: Gold Material: Conductive textile fiber cloth

Type: Electromagnetic shielding Conductivity: Super strong

Features: Non loose conductive fibers, no sharp edges.

Application: Used for electronic chassis, chassis, indoor chassis, industrial equipment, laptops, mobile communication devices.

Conductive cloth:

Fiber cloth (usually polyester fiber cloth) is pre treated and coated with electroplated metal to give it metallic properties and become conductive fiber cloth. Separable

For: nickel plated conductive cloth, gold plated conductive cloth,Carbon coated conductive clothAluminum foil fiber composite fabric, with a distinction between plain weave and mesh shoes in appearance. Can be used in the field of electronics,

* * * Shielding work clothes for high radiation work such as electromagnetic work; Shielding room * * * shielding cloth; IT industry shielding materials such as * * cloth.

Conductive pad is a high * * * gap shielding material used at gaps in chassis or other devices to provide low impedance conductive connections. Conductive cloth pad

Made of conductive fabric with high conductivity and anti-corrosion properties, wrapped with high elasticity PU foam, and processed by * * *. Conductive cloth pad has good electromagnetic wave shielding

effect. We can process various shapes and sizes according to customer requirements

1. This product specification sheet is applicable to plain gold plating produced by Advanced Institute Technology and submitted to customers. 2. Product Structure Diagram This product structure diagram is as follows: Main components and contents of the product: Component content ℅ Polyester fiber 54 Metal copper 34 Metal nickel 10 Gold 23, Product specifications 3-1 Size dimensions Length (meters) Width (mm) Length according to customer requirements 520-1090  3-2 Appearance and color requirements: Color comparison with the standard sample, uniform and consistent throughout the batch, no color difference 3-3 Product performance items Unit specification value Testing standard Base weight g/m2 45 ± 10 Q-TH001-2009 Thickness mm 0.030 ± 0.005 Q-TH001-2009 Width mm 520 ± 20 Q-TH001-2009 Length m ≤ 400 Q-TH001-2009 Average surface impedance Ω≤ 0.02 Q-TH001-2009 Adhesion --- Excellent Q-TH001-2009 TH001-2009 shielding effectiveness db>70db ASTM-D4935-99
