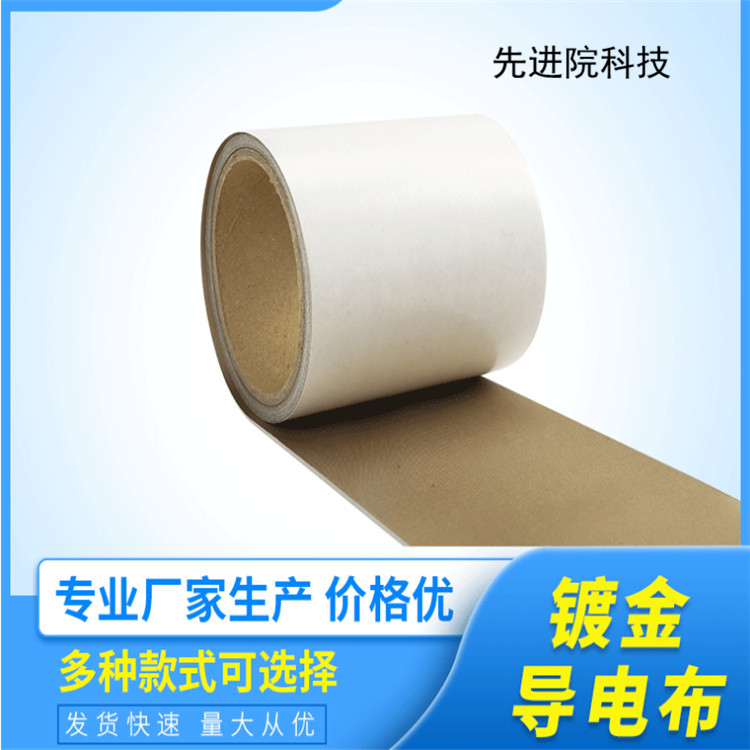

Gold plated conductive clothSilver plated conductive cloth is our company's strength. Generally, conductive cloth plated with copper is mostly plated with nickel. We use 99.9% pure gold, which can be selected from various options, including substrate, gold plating components, etc. Gold has inherent antibacterial properties and no allergic reactions to the human body. It shines brightly and has a very good decorative effect when used in exposed situations.
We have developed many new varieties of gold-plated conductive cloth according to customer needs.Gold plated conductive clothNot only does it have excellent performance and good appearance, but it also has a reasonable configuration of gold plating components for different occasions, which greatly reduces costs. Currently, a series of products have been formed according to thickness, base material, and gold plating components: 24K gold, 18K gold, 16K gold, 14K gold, DTY multi strand filament yarn woven fabric as the substrate, with smooth incisions and fewer sharp burrs
The production process of electric fabric involves pre treating fiber cloth (usually commonly used polyester fiber cloth) and applying an electroplated metal coating to give it metallic properties, resulting in conductive fiber cloth.
Performance parameters of conductive cloth
Surface impedance value:
0.05ohm/□mo Test machine(0.5kgf)
Friction impedance value:
>1000000 Wear Cycle Anti conductivity/Oxidation Impedance
● Shielding effect:
Gasket at 6mmx10mm Average 115dB from 20MHz to 10 Ghz
● Tolerance dimension: H ± 0.02
Compression ratio: ≤ 10%
● Load weight: 2kg
Characteristics of conductive cloth
● It has good conductivity and electromagnetic wave shielding effect, is flexible, easy to process and shape, and can be wrapped.
Excellent bending durability.
Rich in non flammable materials. （UL94 VTM-O）
Excellent secondary processing properties such as surface coating and adhesion.
Application of conductive cloth
● * * * Applied to conductive tape, conductive foam, electrical appliances, electrical equipment, wire insulators, buildings, furniture materials, etc.
