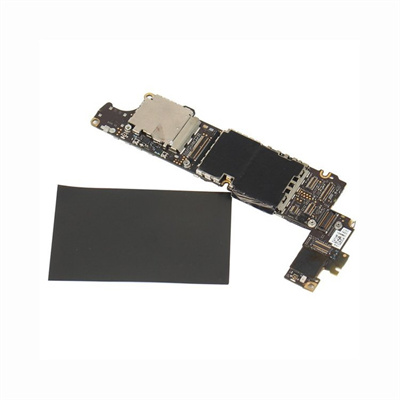

Thermal conductive graphite film, heat dissipating graphite sheet, graphite heat dissipating filmWaiting is a new type of thermal conductivity and heat dissipation material, which has a very obvious thermal conductivity and heat dissipation effect. Suitable for uniform thermal conductivity on any surface, with EMI electromagnetic shielding effect. Advanced Institute Technology's graphite sheets include natural graphite sheets and artificially synthesized graphite sheets, which are supplied by manufacturers. Both conventional and unconventional sizes can be supplied, with large quantities and affordable prices. Welcome to inquire with Advanced Institute Technology.
Natural graphite sheet
Color: Black
Thickness: Natural graphite sheet 0.07~0.5
Temperature resistance range:- 20~400℃
Thermal conductivity (horizontal direction): 900~350
Thermal conductivity (vertical direction): 9~6
There are sheets and rolls available
Artificially synthesized graphite sheets
Color: Black
Thickness: 0.025-0.07
Temperature resistance range:- 20~400℃
Thermal conductivity (horizontal direction): 1500~1000
Thermal conductivity (vertical direction): 16~11
There are sheets and rolls available
characteristic:
1. Rapid thermal conductivity in the horizontal direction, higher than copper and aluminum
2. Low thermal resistance, 40% lower than aluminum and 20% lower than copper
3. Soft, ultra-thin, up to 0.05mm, easy to install
4. Lightweight, 25% lighter than aluminum and 75% lighter than copper
5. Easy to cut, can be cut into any size according to customer needs
6. It can be combined with materials such as metal, plastic, and adhesive to meet different design functions and needs.
7. Compliant with RoHS, REACH, UL requirements, and UL94-V0 fire protection requirements.
8. Applied to electronic appliances such as network set-top boxes, advertising machines, tablets, and smartphone cases, it plays a role in heat conduction and dissipation.
