Water cooled display adapter heat dissipation application thermal conductive silicone sheet

oneDisassembly diagram of graphics card chip water-cooled display adapter:

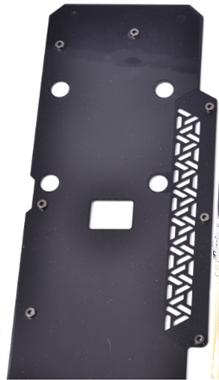

Backboard

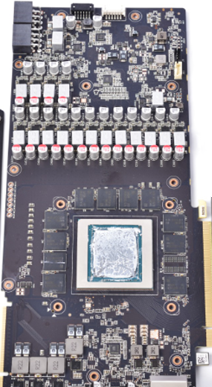

circuit board

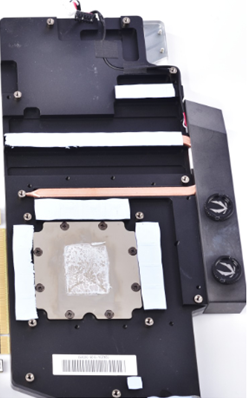

water block

On the back of the water cooling head, there is a whole piece of nickel plated copper bottom above the main GPU, which is also the area where the main water channel flows. In order to dissipate heat for the power supply components, a U-shaped heat dissipation duct is installed on the left side, connected to the aluminum block of the water cooling head. Therefore, all heating components on the graphics card can dissipate heat through the water cooling head and PAD. The water cooling head mainly uses advanced institute thermal conductive silicone sheets for heat dissipation with PAD

A filling air gap between a heating element and a metal base, whose flexible and elastic characteristics enable it to be used to cover very uneven surfaces. Its excellent performance enables heat to be conducted from the heating element or the entire PCB to the metal casing or diffusion board, thereby improving the efficiency and service life of the heating electronic components.

2Product Features:

1. Good thermal conductivity: 3.2W/mK
2. Self adhesive without the need for additional surface adhesive
3. Highly compressible, soft and elastic, suitable for low-pressure application environments
4. Multiple thickness options available
