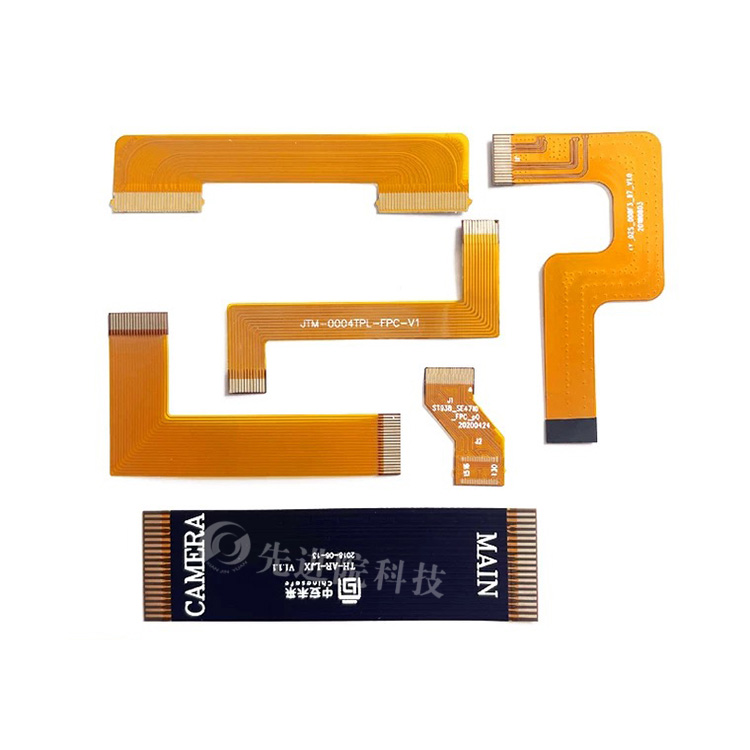

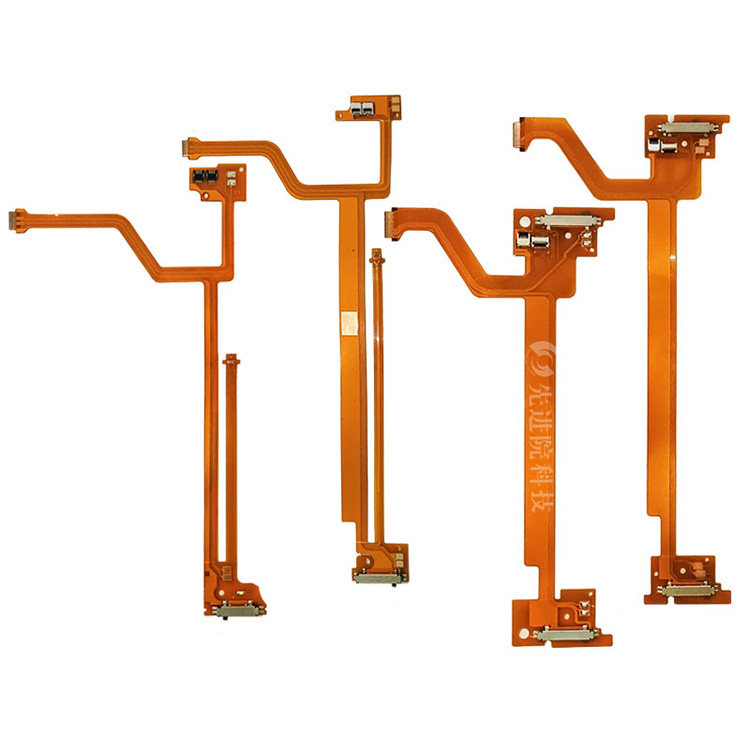

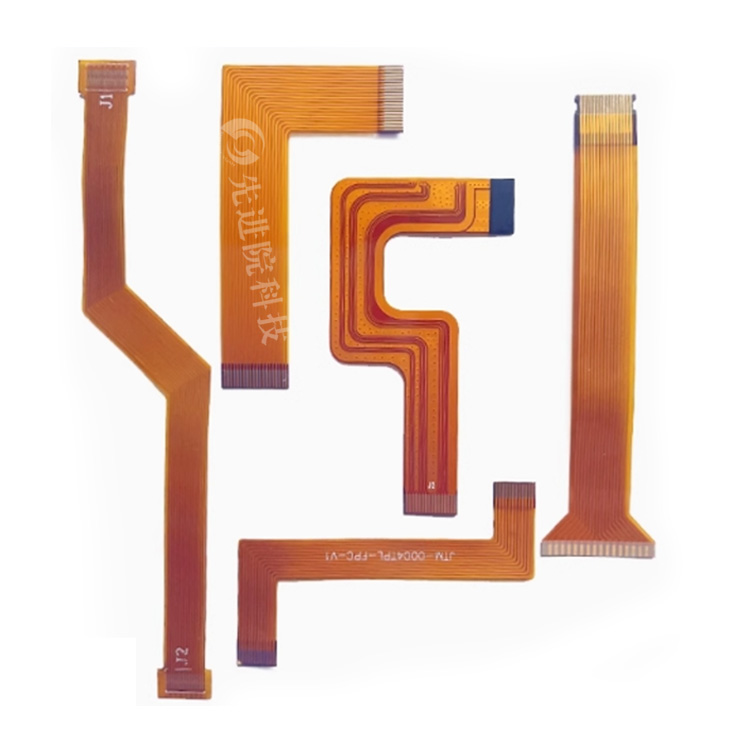

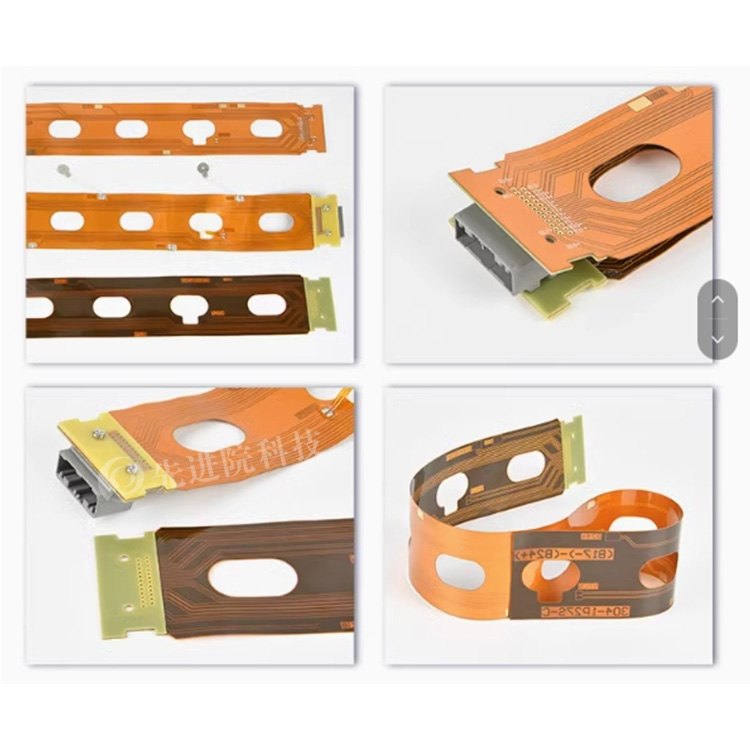

Smart door lock FPC soft board

The smart door lock FPC board, as one of the core components of smart door locks, is responsible for the important tasks of fingerprint information collection, transmission, and connection with other electronic components. It is made of advanced flexible materials, with the characteristics of lightness, softness, and durability, and can be tightly attached to the fingerprint recognition module of the door lock or other parts that require flexible connection.

Structural characteristics

1. Flexible design: FPC flexible board has extremely high flexibility and can adapt to various complex installation environments and space limitations, making it easy to integrate into miniaturized smart door locks.
2. Lightweight and durable: The soft board uses a lightweight substrate and copper foil wiring, which helps reduce the overall thickness and weight of the door lock while ensuring sufficient durability and reliability.
3. Accurate transmission: The micro circuits and sensors on the soft board can accurately perceive the texture and details of fingerprints, and transmit the collected fingerprint signals to the processing chip, ensuring the accuracy and fast response of fingerprint recognition.

Functional advantages

1. Stable signal transmission: FPC flexible board has good conductivity and anti-interference ability, which can work stably in complex electromagnetic environments, ensuring stable transmission of fingerprint signals.
2. Strong adaptability: Due to the flexible nature of the soft board, it can adapt to various shapes and sizes of the door lock shell or internal structure, making it easy to install and debug.
3. Improving Integration: Using FPC soft boards can greatly enhance the integration of door lock systems, making the design of door locks more compact and aesthetically pleasing.

Application scenarios

The FPC soft board of smart door locks is widely used in various smart door lock systems that require fingerprint recognition function, such as homes, apartments, hotels, office buildings, and other places. It can not only improve the safety and convenience of door locks, but also connect with smart home systems to achieve remote control, alarm and other functions.

maintenance

Although FPC flexible boards have high durability, the following points should still be noted during long-term use:

1. Avoid excessive bending or folding of the soft board to prevent damage to the internal circuits and wiring.
2. Keep the surface of the soft board clean and dry, and avoid corrosion or short circuit caused by pollutants such as water stains and oil stains on the soft board.
3. Regularly check the connection of the soft board to ensure a secure and reliable connection.

The FPC soft board of smart door locks plays an irreplaceable role in smart door lock systems due to its unique flexible design, lightweight and durable characteristics, and precise signal transmission advantages.
