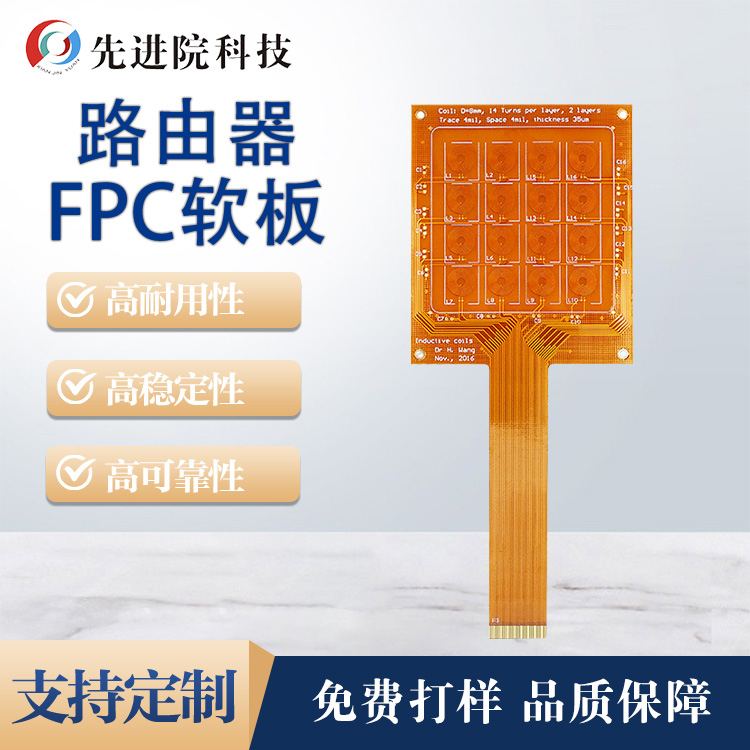

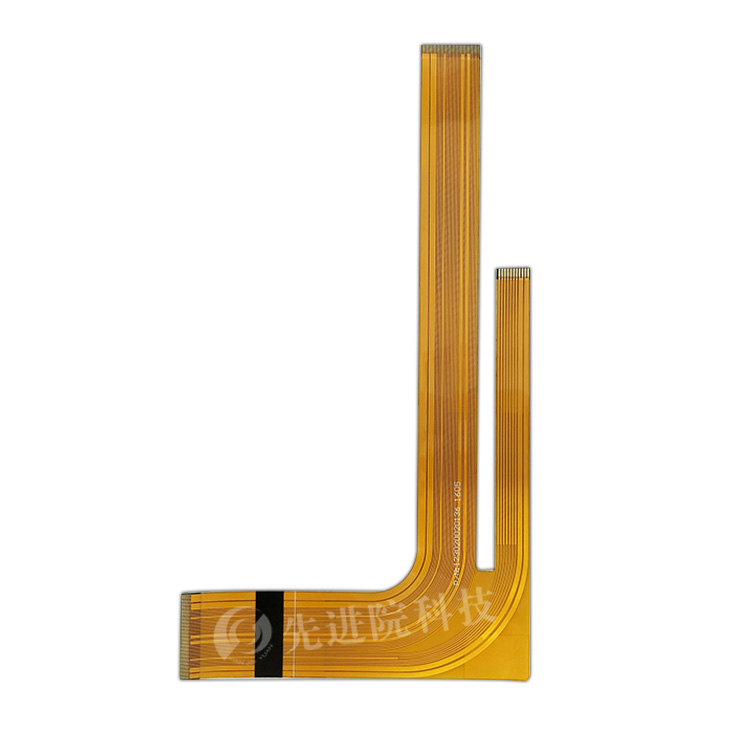

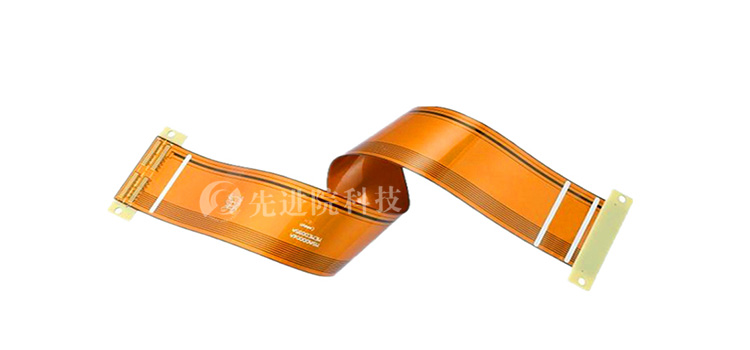

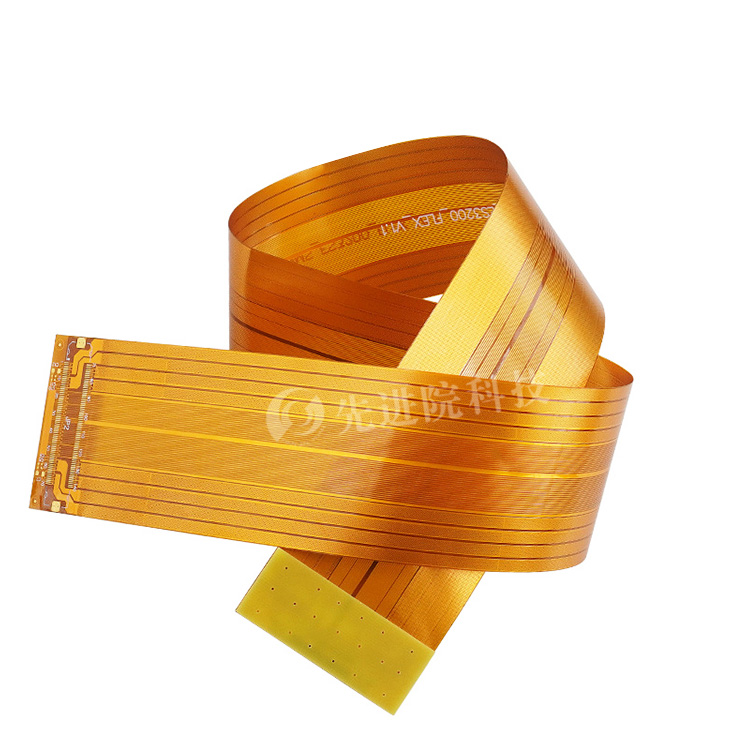

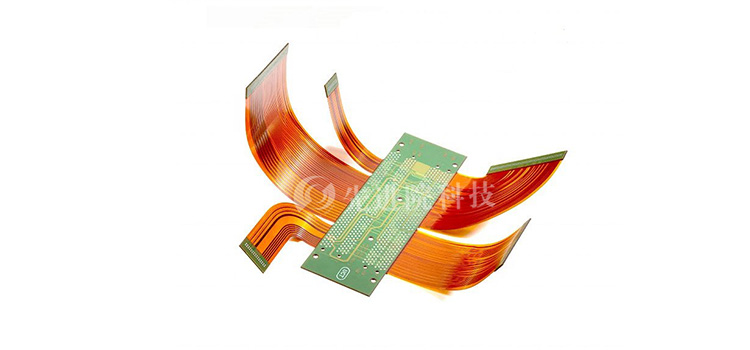

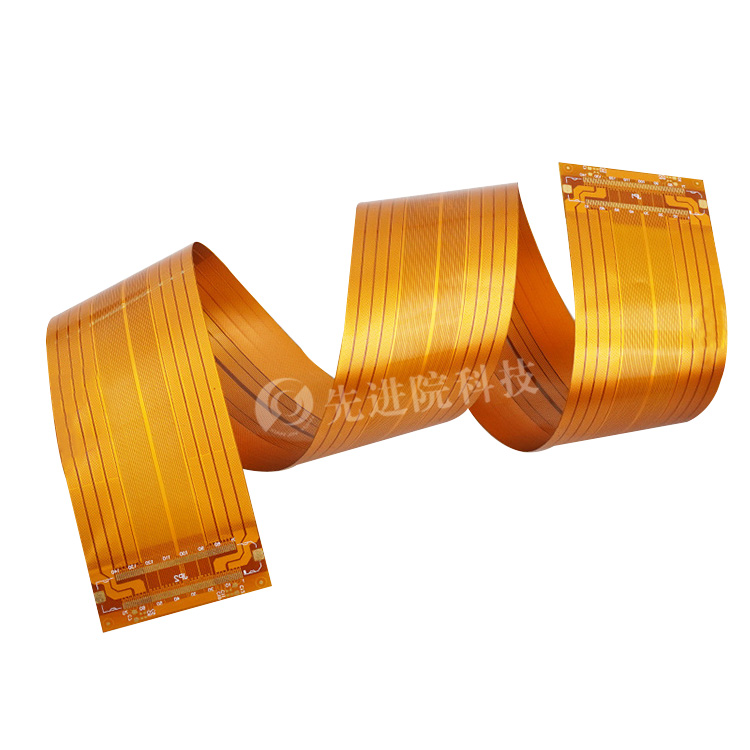

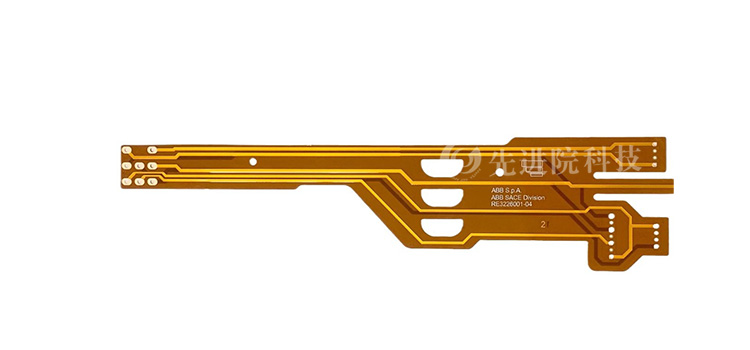

The router FPC soft board adopts flexible printed circuit board technology, designed specifically for routers. It has the characteristics of lightweight, good flexibility, high reliability, and high precision, and can be flexibly wired in the compact space inside the router, ensuring stable connections and signal transmission between various components of the router.
Product Features
- Lightweight and flexible: The FPC board of the router has a thin thickness, light weight, and good flexibility, which can adapt to the complex three-dimensional spatial layout inside the router, making it easy to install and maintain.
- High reliability: Made of high-quality materials such as polyimide (PI) substrate, it has good temperature resistance, corrosion resistance, and vibration resistance, ensuring that the router remains stable under long-term and high load operation.
- High density cabling: Router FPC flexible board can achieve high-density circuit layout in limited space, improving the integration and transmission efficiency of routers.
- Stable signal transmission: Advanced manufacturing processes and technologies are adopted to ensure precise circuit layout and stable signal transmission on the FPC board, thereby ensuring the network performance and stability of the router.
Product composition
The router FPC board usually consists of the following parts:
- Substrate: High performance materials such as polyimide (PI) are usually used, which have good insulation and high temperature resistance.
- Copper foil: forms conductive lines responsible for the transmission of current and signals. The thickness of copper foil and the layout of the circuit are designed according to the specific requirements of the router.
- Cover film: Covering the surface of copper foil to provide protection and prevent damage to the circuit. The covering film also has certain insulation and wear resistance.
- Adhesive: Used to laminate substrates, copper foils, and cover films together to form a stable structure. Adhesives need to have good bonding performance and temperature resistance.
Product Application
Router FPC soft boards are widely used in various routers, including home routers, enterprise routers, etc. It is responsible for connecting various electronic components in the router, such as processors, memory, network interfaces, etc., to achieve data reception, processing, and transmission, as well as monitoring and controlling network status.
Product advantages
- Improving network performance: The high-density wiring and signal transmission stability of the router FPC board help to enhance the network performance and transmission speed of the router.
- Enhance equipment reliability: FPC soft boards made of high-quality materials have good temperature resistance, corrosion resistance, and vibration resistance, ensuring that routers remain stable under long-term and high load operation.
- Improving device integration: Router FPC soft board can achieve high-density circuit layout in limited space, improving the integration of routers and making them more compact and efficient.
- Reduce maintenance costs: Due to the flexibility and light weight of FPC soft boards, maintenance and replacement of components in routers become more convenient, thereby reducing maintenance costs.
The router FPC board, as an important component inside the router, plays an important role in the router field due to its lightweight, flexibility, high reliability, high-density wiring, and stable signal transmission. With the continuous development of network technology, the application prospects of router FPC soft boards will be even broader.
