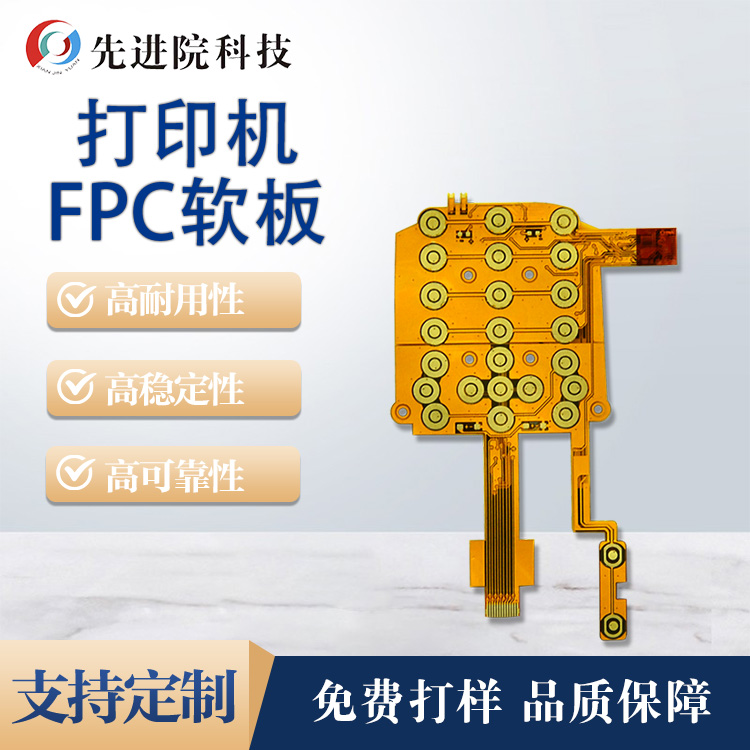

The printer FPC soft board adopts flexible printed circuit board technology, designed specifically for printers. It has the characteristics of lightweight, good flexibility, high reliability, and high precision, and can be flexibly wired in the compact space inside the printer, ensuring stable connections and signal transmission between various components of the printer.
Product Features
- Lightweight and flexible: The FPC board of the printer has a thin thickness, light weight, and good flexibility, which can adapt to the complex three-dimensional spatial layout inside the printer, making it easy to install and maintain.
- High reliability: Made of high-quality materials, it has good temperature resistance, corrosion resistance, and vibration resistance, and can maintain stability under long-term and high load operation of the printer.
- High precision: The FPC soft board of the printer adopts precise manufacturing processes and technologies to ensure the accuracy of circuit layout and the stability of signal transmission, thereby improving the printing accuracy and performance of the printer.
- Easy to maintain: Due to its flexibility and lightweight, FPC flexible board makes maintenance and component replacement of printers more convenient.
Product composition
The FPC soft board of a printer usually consists of the following parts:
- Substrate: High performance materials such as polyimide (PI) are usually used, which have good insulation and high temperature resistance.
- Copper foil: forms conductive lines responsible for the transmission of current and signals. The thickness of copper foil and the layout of the circuit are designed according to the specific requirements of the printer.
- Cover film: Covering the surface of copper foil to provide protection and prevent damage to the circuit. The covering film also has certain insulation and wear resistance.
- Adhesive: Used to laminate substrates, copper foils, and cover films together to form a stable structure. Adhesives need to have good bonding performance and temperature resistance.
Product Application
Printer FPC soft board is widely used in various printers, such as inkjet printers, laser printers, etc. It is responsible for connecting various electronic components in the printer, such as print heads, sensors, microprocessors, etc., to receive, process, and transmit printing instructions, as well as monitor and provide feedback on printing status.
Product advantages
- Improving printing performance: The high-precision manufacturing process and technology of the printer FPC soft board ensure the stability and accuracy of signal transmission, thereby enhancing the printing performance and accuracy of the printer.
- Enhance equipment reliability: FPC flexible boards made of high-quality materials have good temperature resistance, corrosion resistance, and vibration resistance, ensuring that the printer remains stable under long-term and high load operation.
- Improve device integration: The printer FPC board can achieve high-density circuit layout in limited space, improve printer integration, and make the printer more compact and efficient.
- Reduce maintenance costs: Due to the flexibility and light weight of FPC soft boards, maintenance and replacement of printer components become more convenient, thereby reducing maintenance costs.
As an important component inside the printer, the FPC board plays a crucial role in the field of printers due to its lightweight, flexibility, high reliability, high precision, and ease of maintenance. With the continuous development of printing technology, the application prospects of printer FPC soft boards will be even broader.
