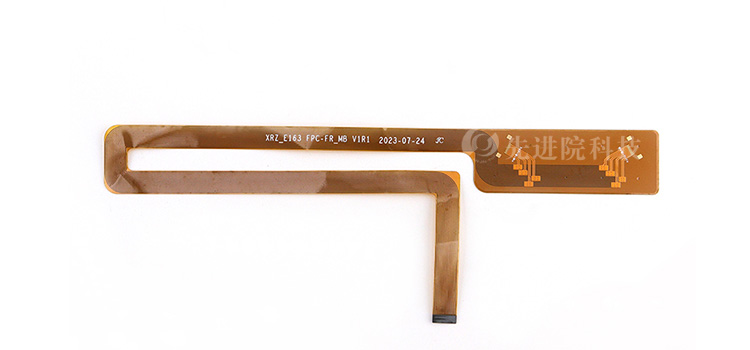

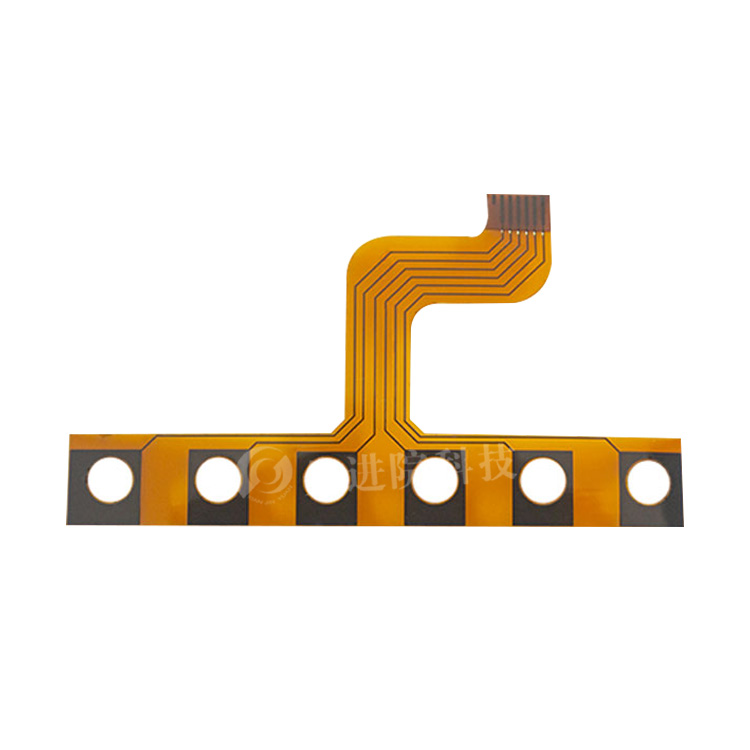

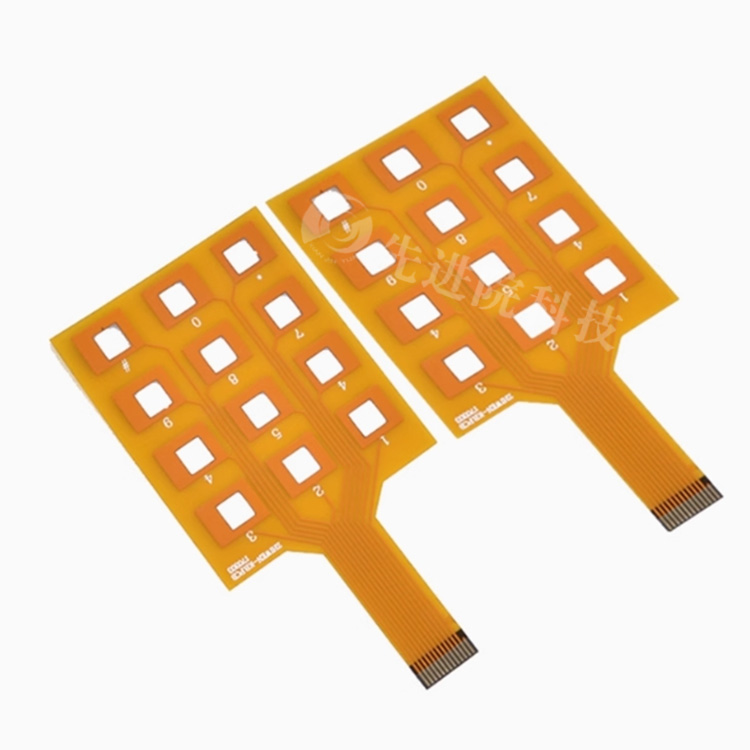

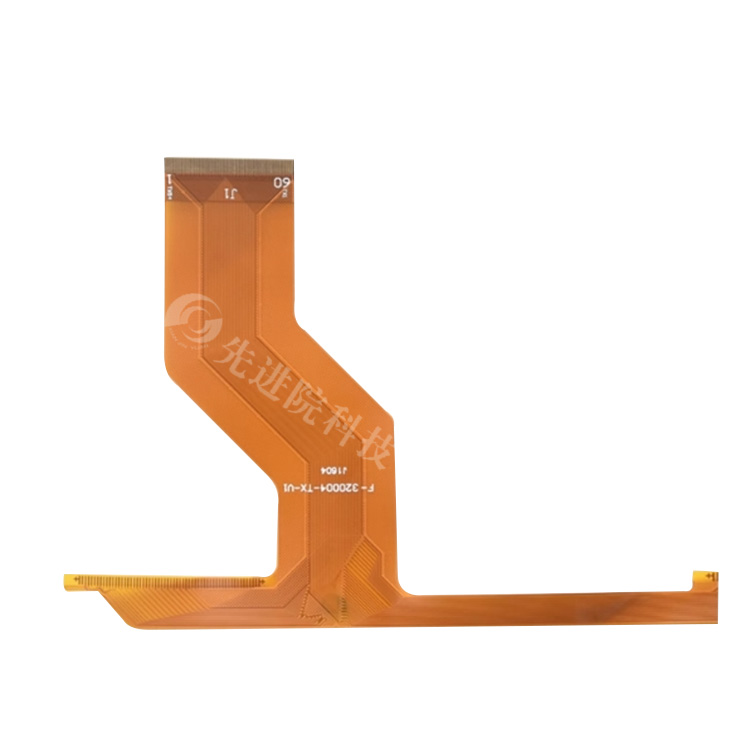

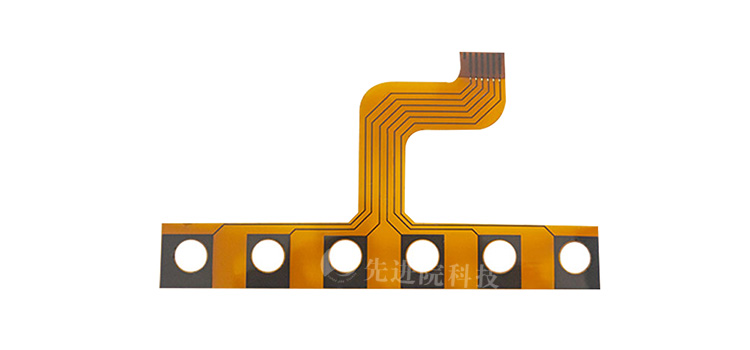

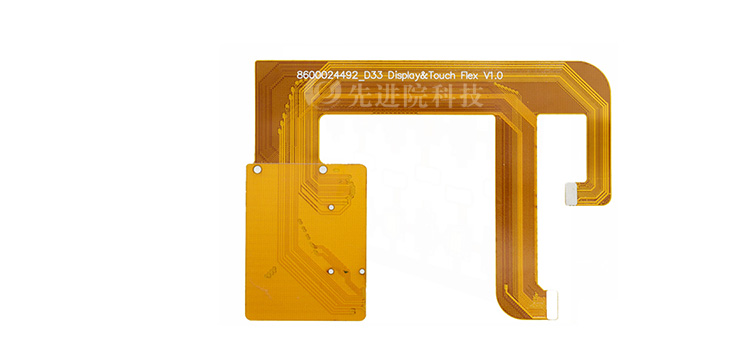

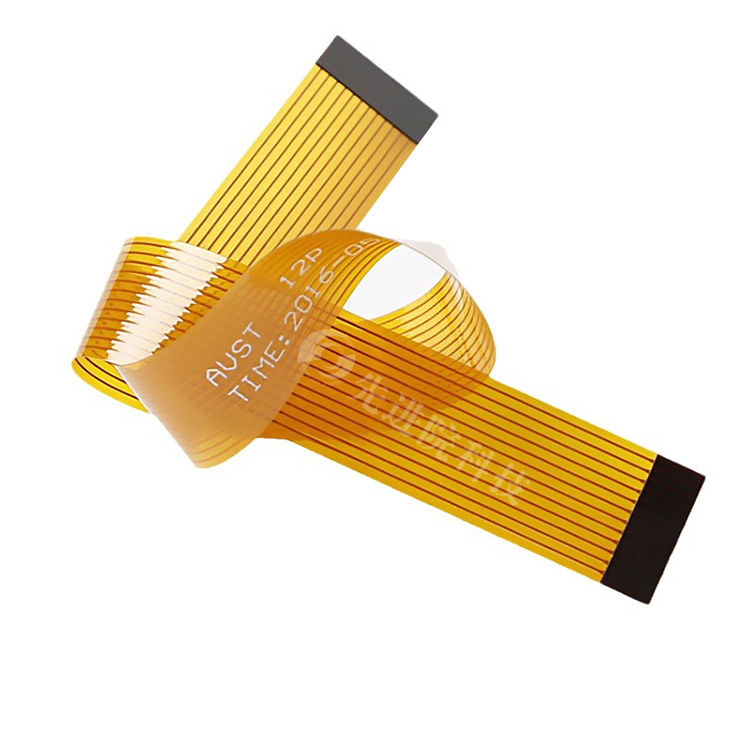

The FPC soft board of the blood pressure monitor adopts flexible printed circuit board technology, designed specifically for blood pressure monitors. It has the characteristics of lightweight, good flexibility, high reliability, and high precision, and can work stably in the complex environment inside the blood pressure monitor, ensuring the accuracy and reliability of blood pressure measurement.
Product Features
- Lightweight and flexible: The FPC board of the blood pressure monitor has a thin thickness, light weight, and good flexibility, which can adapt to the compact spatial layout inside the blood pressure monitor, making it easy to install and wire.
- High reliability: Made of high-performance materials such as polyimide (PI) substrate, it has good temperature resistance, corrosion resistance, and vibration resistance, ensuring the stability and reliability of the blood pressure monitor during long-term use.
- High precision: The FPC soft board of the blood pressure monitor adopts advanced manufacturing processes and technologies to ensure the accuracy and precision of signal transmission, thereby improving the accuracy of blood pressure measurement.
- Biocompatibility: The FPC soft board material of the blood pressure monitor must comply with biocompatibility standards to ensure safety and non toxicity when in contact with the human body.
Product composition
The FPC soft board of a blood pressure monitor usually consists of the following parts:
- Substrate: High performance materials such as polyimide (PI) are used, which have good insulation and high temperature resistance.
- Copper foil: forms conductive lines responsible for the transmission of current and signals. The thickness of copper foil and the layout of the circuit are carefully designed to ensure the accuracy and precision of signal transmission.
- Cover film: Covering the surface of copper foil to provide protection and prevent damage to the circuit. The covering film also has a certain degree of biocompatibility, ensuring safety when in contact with the human body.
- Adhesive: Used to laminate substrates, copper foils, and cover films together to form a stable structure.
Product Application
The FPC soft board of blood pressure monitors is widely used in various blood pressure monitors, including electronic blood pressure monitors, wrist blood pressure monitors, etc. It is responsible for connecting electronic components such as sensors, microprocessors, and display screens in the blood pressure monitor to achieve functions such as blood pressure measurement, display, and recording.
Product advantages
- Improving measurement accuracy: The FPC soft board of the blood pressure monitor adopts high-precision manufacturing processes and technologies to ensure the accuracy and precision of signal transmission, thereby improving the accuracy of blood pressure measurement.
- Enhance equipment reliability: FPC soft boards made of high-performance materials have good temperature resistance, corrosion resistance, and vibration resistance, ensuring the stability and reliability of blood pressure monitors during long-term use.
- Improving user experience: The thin and flexible FPC board of the blood pressure monitor makes it more lightweight, easy to carry and use, enhancing the user experience.
The FPC soft board of the blood pressure monitor, as a key component inside the blood pressure monitor, plays an important role in the blood pressure monitor due to its lightweight, flexibility, high reliability, high precision, and biocompatibility. With the continuous advancement of medical technology and the increasing demand for health monitoring, the application prospects of FPC soft boards for blood pressure monitors will be even broader.
