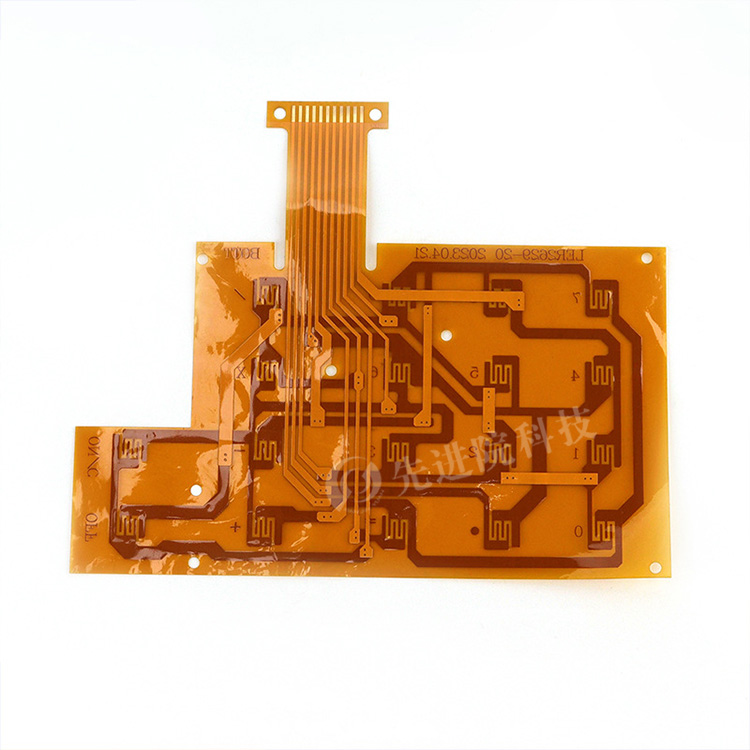

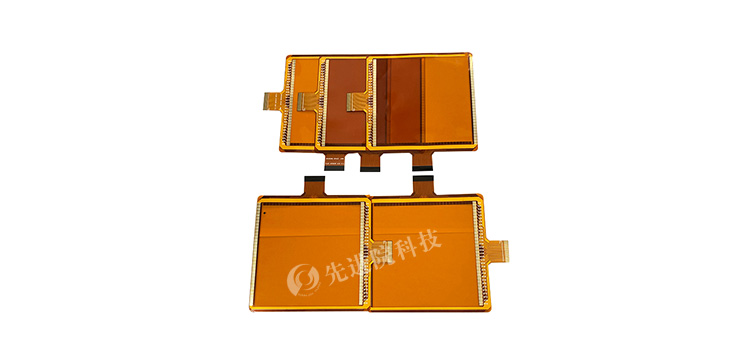

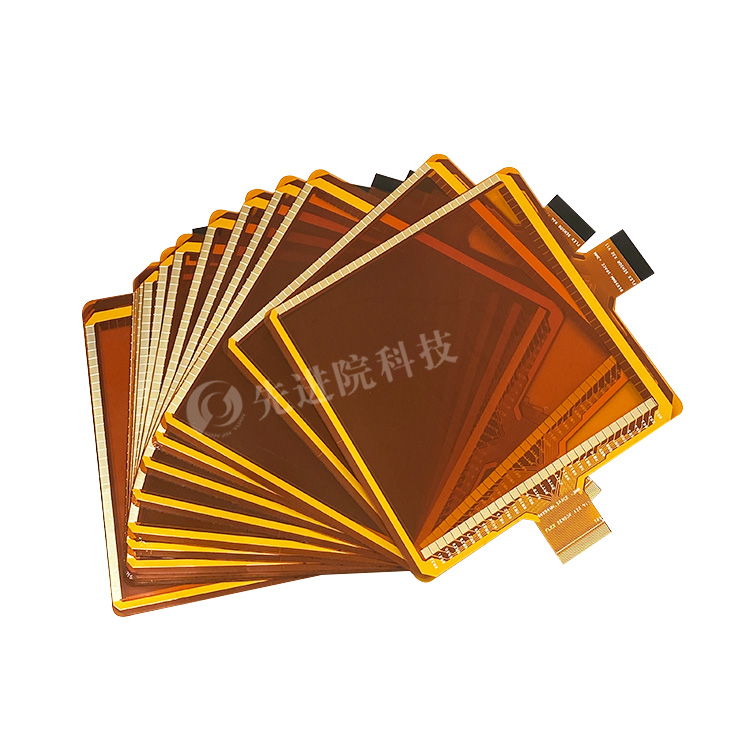

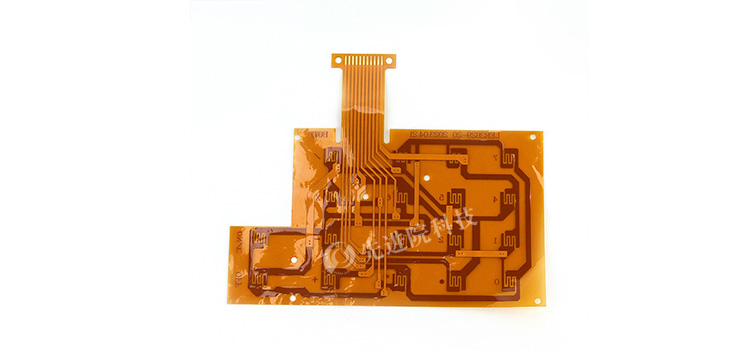

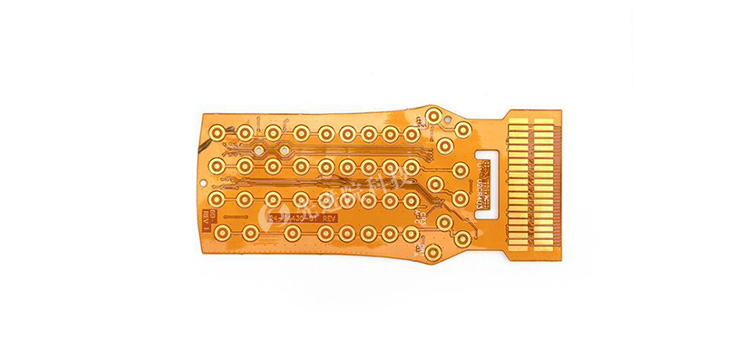

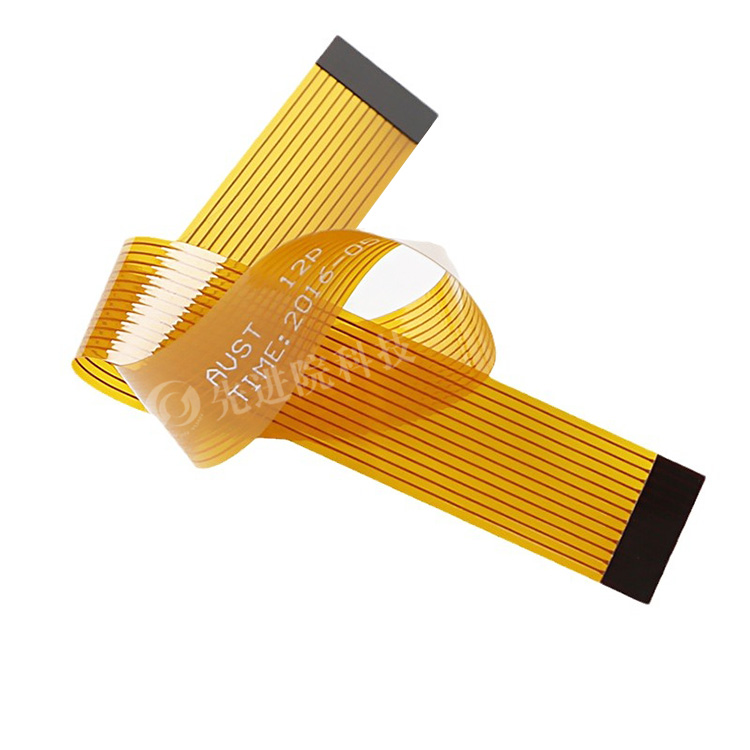

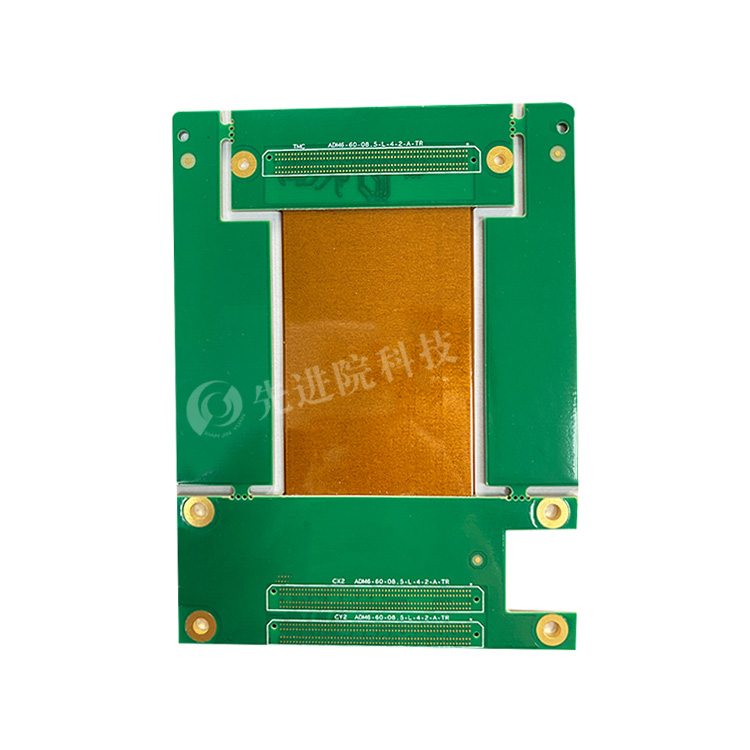

Medical equipment FPC soft board

Medical equipment FPC flexible board is a type of flexible printed circuit board designed specifically for medical devices, characterized by its lightweight, good flexibility, high reliability, and biocompatibility. It can work stably in the complex environment inside medical equipment, ensuring the normal operation of the equipment and accurate transmission of data.

Product Features

1. Lightweight and flexible: FPC soft board has a thin thickness, light weight, and good flexibility, which can adapt to the complex three-dimensional spatial layout inside medical equipment, making it easy to install and wire.
2. High reliability: Made of high-performance materials such as polyimide (PI) substrate, it has good temperature resistance, corrosion resistance, and vibration resistance, and can maintain stability during long-term operation of medical equipment.
3. Biocompatibility: In response to the special requirements of medical equipment, FPC soft board materials must comply with biocompatibility standards to ensure safety and non toxicity when in contact with the human body.
4. High density cabling: Achieving high-density circuit layout in a limited space to meet the high requirements of medical equipment for signal transmission and data processing.

Product composition

Medical equipment FPC soft board usually consists of the following parts:

1. Substrate: High performance materials such as polyimide (PI) are used, which have good insulation and high temperature resistance.
2. Copper foil: forms conductive lines responsible for the transmission of current and signals.
3. Cover film: Covering the surface of copper foil to provide protection, prevent circuit damage, and have a certain degree of biocompatibility.
4. Adhesive: Used to laminate substrates, copper foils, and cover films together to form a stable structure.

application area

FPC soft boards for medical equipment are widely used in various medical devices, including but not limited to:

1. Portable medical devices, such as blood glucose meters, blood pressure monitors, electrocardiographs, etc., use FPC soft boards to connect internal electronic components, achieve signal transmission and data processing.
2. Wearable medical devices, such as health monitoring bracelets, smart glasses, etc., FPC soft boards are suitable for circuit connections in wearable devices due to their thin and flexible nature.
3. Implantable medical devices, such as pacemakers and nerve stimulators, require FPC soft boards with high biocompatibility and stability to ensure long-term safe operation within the human body.

Product advantages

1. Improving device performance: The high-density wiring capability of FPC soft boards helps to enhance the signal transmission speed and data processing capability of medical equipment.
2. Enhance equipment reliability: FPC flexible boards made of high-performance materials have good temperature resistance, corrosion resistance, and vibration resistance, ensuring stable operation of medical equipment in complex environments.
3. Improving patient comfort: The lightweight and flexible nature of FPC soft board helps reduce the pressure and discomfort of medical equipment on the patient's body.

As an important component inside medical equipment, FPC board plays a crucial role in the medical field due to its lightweight, flexibility, high reliability, and biocompatibility. With the continuous advancement of medical technology and the increasing demands of patients for medical equipment, the application prospects of FPC soft boards in medical devices will be even broader.
