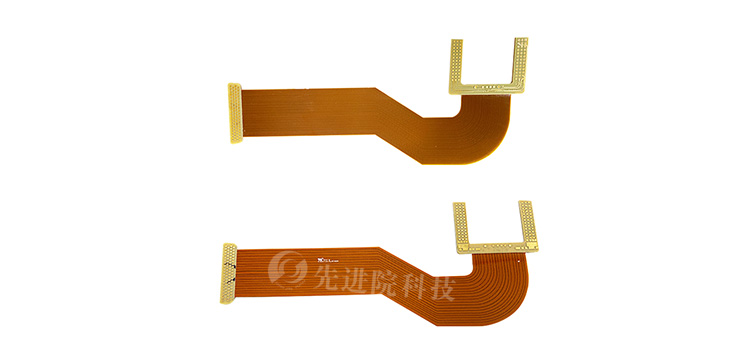

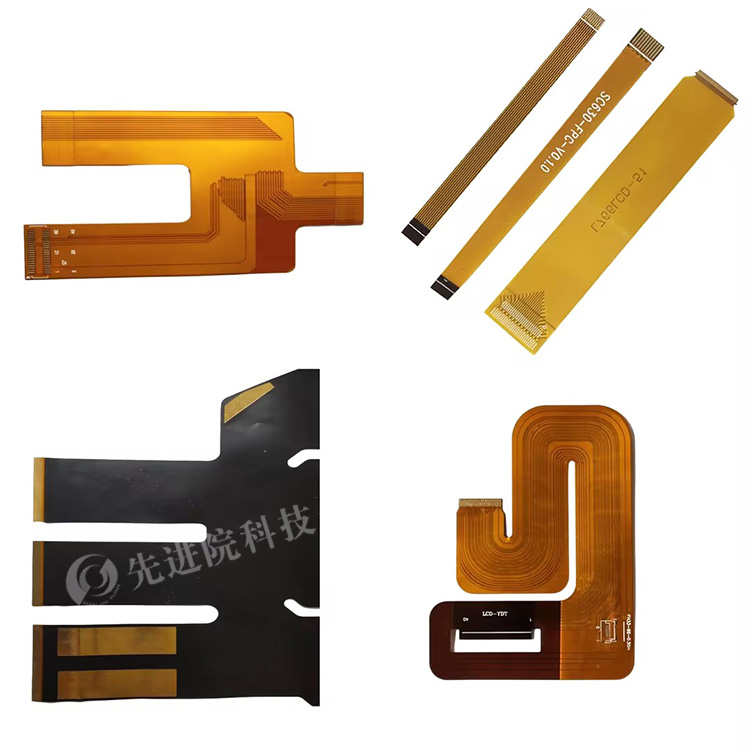

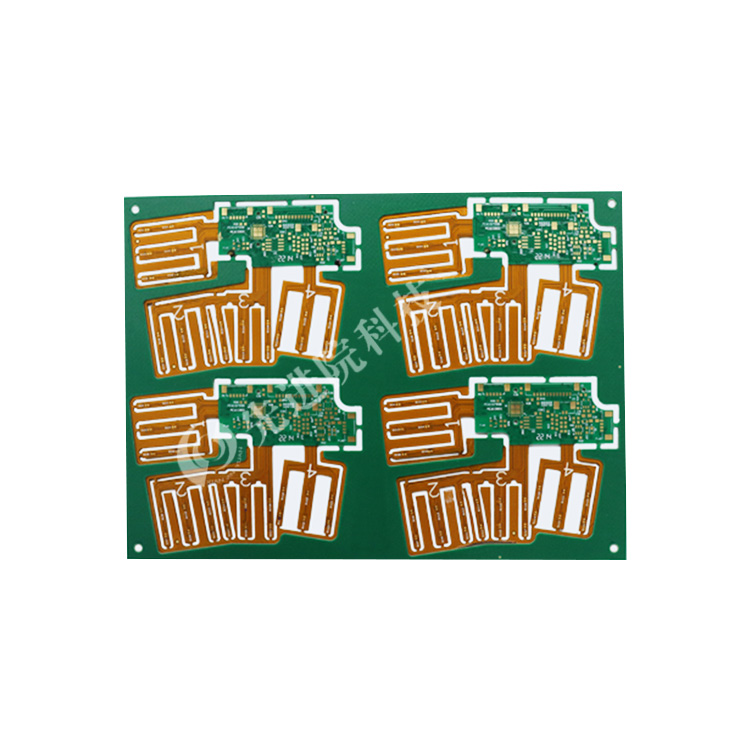

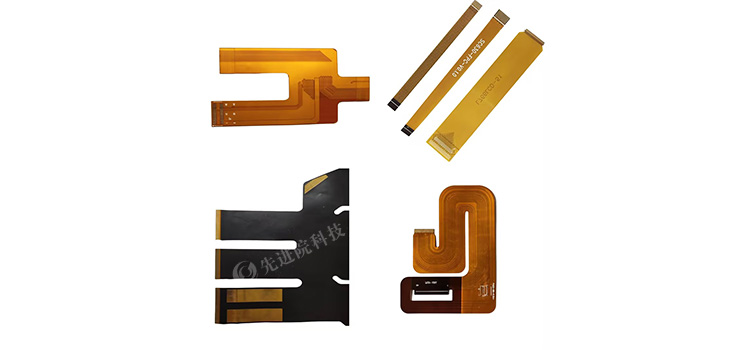

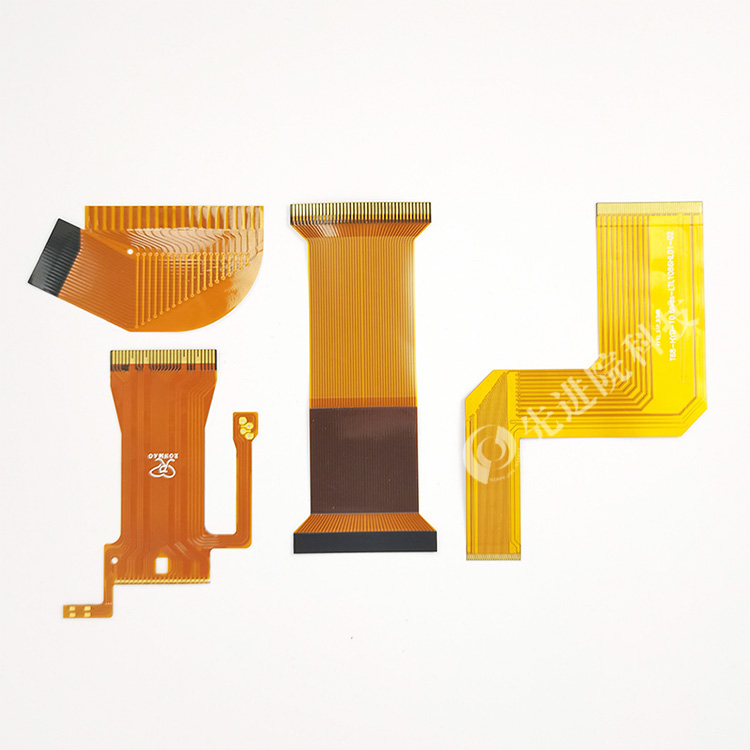

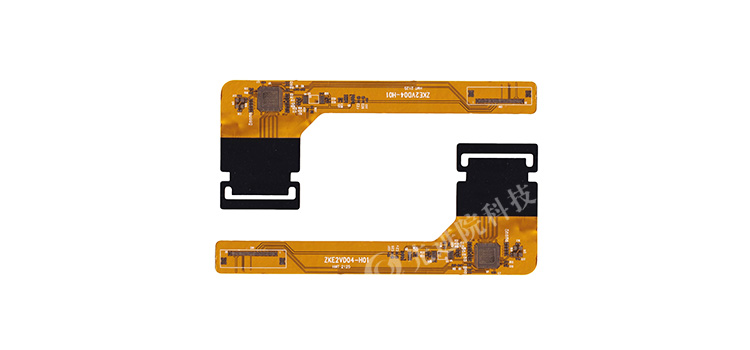

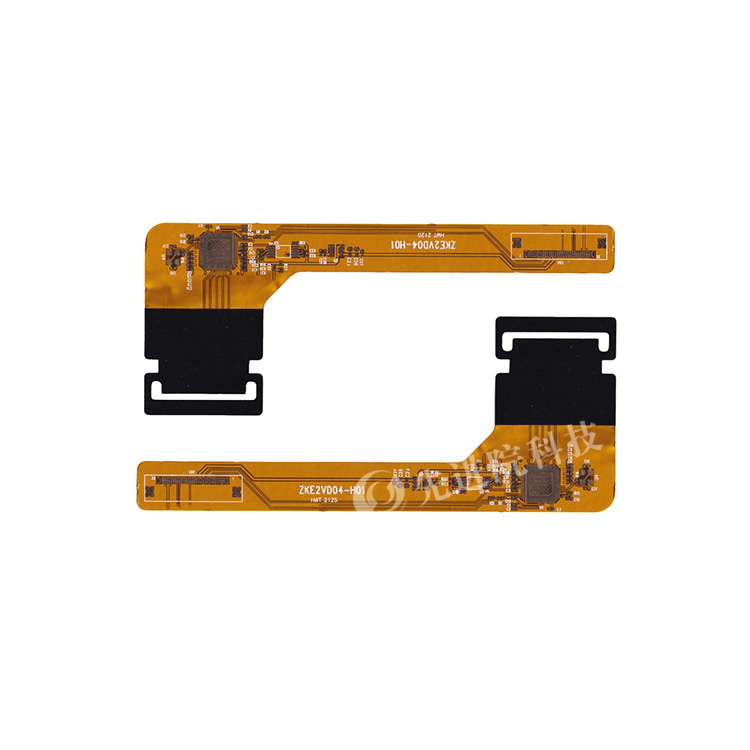

Flexible Printed Circuit (FPC) for smartwatches is a highly integrated flexible circuit board designed specifically for smartwatches. It adopts advanced materials and manufacturing processes to ensure the implementation of complex electronic wiring in limited space, while maintaining lightweight, flexibility, and high reliability.
Product Features
- Lightweight and flexible: The FPC soft board of smart watches uses flexible substrates such as polyimide (PI) or polyester (PET), with a thickness usually below 0.1mm, which can adapt to the compact design requirements of smart watches and ensure comfort during wear.
- High density wiring: Smart watch FPC flexible board has high-density wiring capability, which can integrate a large number of electronic components and connection lines in a limited space, improving the functionality and performance of the device.
- High reliability: The FPC soft board of smart watches has undergone rigorous testing and verification, and has good electrical performance and heat resistance, which can withstand various challenges of smart watches in daily use, such as vibration, bending, etc.
- Easy to integrate: The flexible design of the smart watch FPC board allows for easy integration with other electronic components such as display screens, sensors, batteries, etc., reducing production difficulty and costs.
Product composition
The FPC soft board of a smartwatch usually consists of the following parts:
- Substrate: Flexible materials such as polyimide (PI) or polyester (PET) are used, which have good insulation and high temperature resistance.
- Copper foil: used to form conductive lines and has good conductivity.
- Cover film: Covering the surface of copper foil to provide protection and prevent damage to the circuit.
- Adhesive layer: used for bonding between layers to increase structural stability.
Application scenarios
Smart watch FPC soft boards are widely used in various smart watches, responsible for connecting various electronic components and achieving the transmission of current and signals. Specific applications include:
- Display screen connection: The smart watch FPC board connects the display screen to the motherboard to ensure the normal display of images and information.
- Sensor connection: Connect health monitoring modules such as heart rate sensors and acceleration sensors to achieve data collection and transmission.
- Battery connection: Connect the battery to the motherboard to ensure the normal power supply of the smartwatch.
Product advantages
- Improving device performance: The high-density wiring capability of the FPC soft board in smartwatches enables the integration of more functions, enhancing device performance and user experience.
- Cost reduction: Compared to traditional rigid circuit boards, the production cost of FPC flexible boards for smart watches is lower, which helps to reduce the overall cost of smart watches.
- Enhance design freedom: The flexible nature of the FPC soft board in smartwatches makes their design more flexible and adaptable to watch casings of different shapes and sizes.
As a key component inside smart watches, the FPC board of smart watches provides strong support for the development of smart watches with its characteristics of light, thin, flexible, high-density wiring, and high reliability. With the continuous advancement of technology and the expansion of application scenarios, the FPC soft board of smart watches will play a more important role in the future.
