How to ensure the shielding effectiveness of Bluetooth shielding cover under multi band Bluetooth signals

Brief introduction

With the continuous development of Bluetooth technology, its application scenarios are becoming increasingly widespread, from smart homes to smart wearable devices, and then to industrial automation and other fields, the stable transmission of Bluetooth signals has become crucial. However, in complex electronic environments, Bluetooth signals are susceptible to various interferences such as other wireless signals and electromagnetic radiation from electronic devices.Bluetooth shielding coverAs an effective solution, it can significantly improve the anti-interference ability of Bluetooth signals, but in the case of multi band Bluetooth signals, how to ensure their shielding effectiveness is a key issue.

2、 Working principle of Bluetooth shielding cover

The Bluetooth shielding cover mainly utilizes the conductivity and magnetism of metal materials to reflect, absorb, and attenuate the electromagnetic field generated by Bluetooth signals, thereby reducing the impact of external interference on Bluetooth signals and preventing Bluetooth signals from radiating outward, avoiding interference with other electronic devices. Its shielding effectiveness is influenced by various factors, including the material, structure, thickness, and installation method of the shielding cover with Bluetooth devices.

3、 Factors affecting the shielding effectiveness of Bluetooth shielding cover

1. Material: Different metal materials have different conductivity and permeability, and their shielding effect on Bluetooth signals may also vary. For example, alloy materials such as iron and nickel have high magnetic permeability, which can better absorb magnetic fields and have a good shielding effect on low-frequency Bluetooth signals; Copper, aluminum and other materials have higher conductivity and better reflection effect on high-frequency Bluetooth signals.
2. Structure: The structural design of the shielding cover can also affect its shielding effectiveness. Reasonable structural design can makeShielding coverCreate an enclosed space internally to reduce signal leakage. For example, using a rectangular shielding cover is easier to ensure the stability of the shielding effect compared to a polygonal structure.
3. Thickness: Generally speaking, the thicker the shielding cover, the better the shielding effect on Bluetooth signals. However, overly thick shielding covers can increase the weight and cost of the equipment, so a balance needs to be struck between shielding effectiveness and practical application requirements.
4. Installation method: The tightness of the shielding cover and Bluetooth device installation can also affect the shielding effectiveness. If not installed tightly, it can cause signal leakage and reduce shielding effectiveness. Therefore, when installing the shielding cover, it is necessary to ensure good contact between it and the Bluetooth device.

4、 Comparison between experimental testing and data reference

To verify the impact of different factors onBluetooth shielding coverWe conducted a series of experimental tests to investigate the impact of shielding effectiveness. In the experiment, we used shielding covers of different materials, structures, and thicknesses to test the shielding of multi band Bluetooth signals, and used professional testing instruments to measure the signal strength before and after shielding.

1. Material comparison experiment:
   • We selected shielding covers made of three common metal materials: ferroalloy, copper, and aluminum for testing. Under the same testing environment, block Bluetooth signals in the 2.4GHz frequency band. It was found that the iron alloy shielding cover had the greatest attenuation on Bluetooth signals, with a signal strength decrease of 30dBm; The attenuation degree of the copper shielding cover is second, and the signal strength has decreased by 25dBm; The attenuation degree of the aluminum shielding cover is the smallest, and the signal strength has decreased by 20dBm. This indicates that under multi band Bluetooth signals, shielding covers made of iron alloy have better shielding effects on low-frequency signals, while shielding covers made of copper and aluminum have relatively better shielding effects on high-frequency signals.
2. Structural comparison experiment:
   • We designed shielding covers with rectangular and polygonal structures for comparative testing. The experimental results show that the rectangular structure of the shielding cover has a relatively uniform signal attenuation in all directions, and the shielding effect is more stable; The shielding cover with polygonal structure is prone to signal leakage at the corners, and the shielding effect is relatively poor.
3. Thickness comparison experiment:
   • We selected iron alloy shielding covers of different thicknesses for testing, with thicknesses of 0.5mm, 1mm, and 1.5mm respectively. As the thickness of the shielding cover increases, the shielding effect on Bluetooth signals gradually strengthens. When the thickness of the shielding cover is 0.5mm, the signal strength decreases by 20dBm; When the thickness increases to 1mm, the signal strength decreases by 25dBm; When the thickness reaches 1.5mm, the signal strength decreases by 30dBm. This indicates that increasing the thickness of the shielding cover within a certain range can improve its shielding effectiveness.

5、 Advanced Institute (Shenzhen) Technology Co., Ltd.'s Research Platinum Brand Bluetooth Shielding Cover

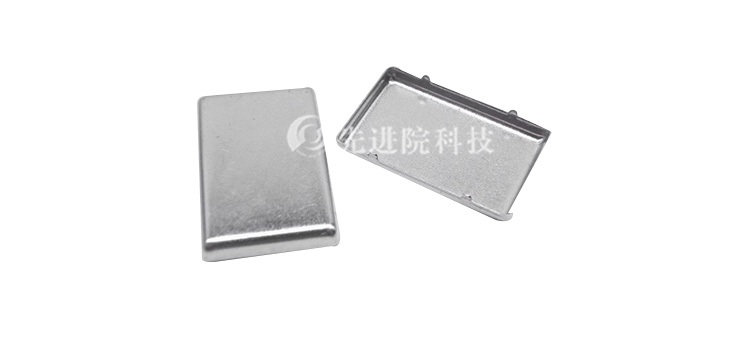

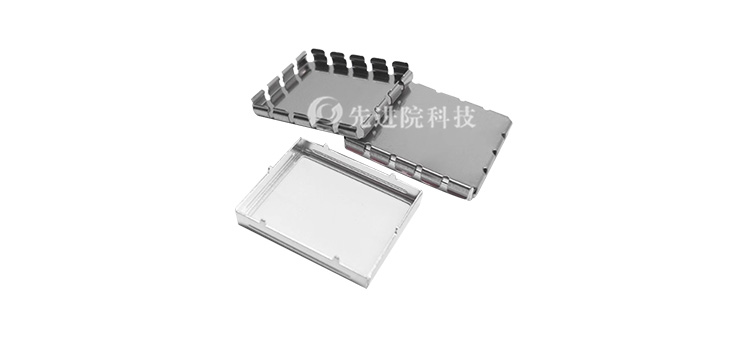

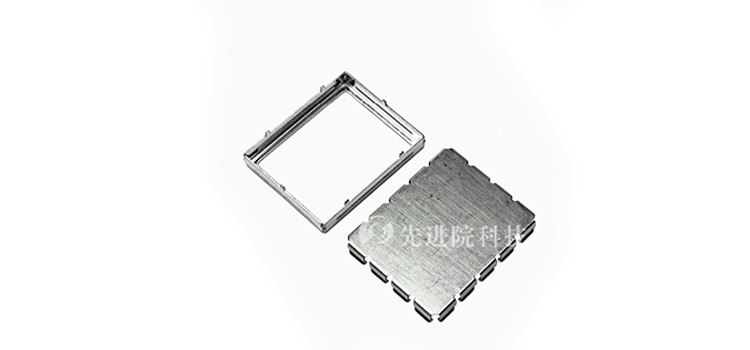

Advanced Institute (Shenzhen) Technology Co., LtdYanbo brand Bluetooth shielding coverThe shielding requirements for multi band Bluetooth signals have been fully considered in the design and manufacturing. The shielding cover is made of high-quality iron nickel alloy material, which has high magnetic permeability and conductivity, and can effectively shield the electromagnetic field generated by Bluetooth signals. At the same time, the research platinum brand Bluetooth shielding cover adopts advanced structural design, ensuring the sealing and stability of the shielding cover, and reducing signal leakage. In practical applications, the Research Platinum brand Bluetooth shielding cover has demonstrated excellent shielding effectiveness and can meet the Bluetooth signal shielding requirements in various complex electronic environments.

6、 Conclusion

The shielding effectiveness of Bluetooth shielding covers under multi band Bluetooth signals is affected by various factors. By selecting the material, structure, thickness, and installation method of the shielding cover reasonably, its shielding effectiveness can be effectively improved. Advanced Institute (Shenzhen) Technology Co., LtdYanbo brand Bluetooth shielding coverIt has unique advantages in material selection, structural design, and can provide reliable signal shielding protection for Bluetooth devices, providing strong support for the widespread application of Bluetooth technology. In the future development, with the continuous advancement of Bluetooth technology, the requirements for the shielding effectiveness of Bluetooth shielding covers will also become increasingly high, and continuous technological innovation and optimization are needed to meet market demand.

The above data is for reference only, and specific performance may vary due to production processes and product specifications.
