The impact of opening design in mobile phone shielding cover on signal integrity

With the increasing richness of smartphone functions and the continuous advancement of communication technology, signal integrity has become one of the key factors affecting user experience. As an important component for protecting the internal circuits of mobile phones from external electromagnetic interference, the opening design of the phone shield is directly related to the quality and stability of signal transmission. This article will delve into the impact of the opening design of mobile phone shielding covers on signal integrity, and specifically mention Advanced Institute (Shenzhen) Technology Co., LtdYanbo brand mobile phone shielding coverThrough reference data and comparative analysis, reveal the subtle balance of aperture design and its important role in signal integrity.

Basic functions and opening requirements of mobile phone shielding cover

basic function

Mobile phone shielding covers are mainly made of highly conductive materials such as copper, aluminum, or alloys. Their main function is to isolate the interference between the internal circuits of the phone and the external electromagnetic environment, ensuring the stability and accuracy of signal transmission. At the same time, the shielding cover can also prevent physical damage to the internal components of the phone to a certain extent.

Opening requirements

However, completely enclosedShielding coverIt will hinder key functions such as heat dissipation, signal input and output, and component installation. Therefore, in practical design, a certain number of holes need to be opened on the shielding cover. The design of these holes requires careful consideration, meeting the requirements of heat dissipation and signal transmission while minimizing negative impacts on signal integrity.

The impact of perforated design on signal integrity

Signal leakage and interference

The most direct impact of perforated design is the leakage and interference of electromagnetic waves. The size, shape, and position of the holes directly affect the shielding effectiveness, which in turn affects the integrity of the signal. Excessive size or improper placement of holes may cause external electromagnetic interference to enter the interior of the phone, interfering with signal transmission; Meanwhile, internal signals may also leak out through holes, affecting the normal operation of other devices.

Data comparison and reference

According to industry research data, whenMobile phone shielding coverWhen the diameter of the hole exceeds a certain threshold (usually a few millimeters), the shielding effectiveness will significantly decrease. Specifically, for every increase in hole diameter (such as 1mm), the shielding effectiveness may decrease by several decibels to over ten decibels. This data comparison indicates that the impact of hole design on signal integrity is significant and cannot be ignored.

As a leading enterprise in the industry, Advanced Institute (Shenzhen) Technology Co., Ltd. has rich experience and advanced technology in the field of mobile phone shield design. The company is able to optimize the position, quantity, and size of holes through precise calculations and simulations, in order to minimize signal leakage and interference while ensuring heat dissipation and signal input/output functions.

Application Cases

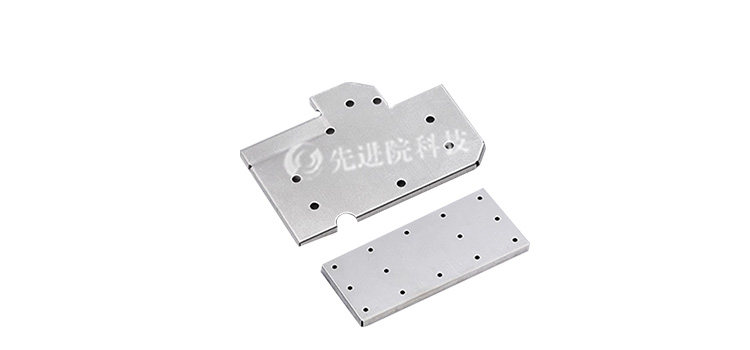

As a high-quality product in the market, the Yanbo brand mobile phone shielding cover is designed with full consideration for the requirement of signal integrity. By adopting high-performanceShielding materialReasonable hole layout and fine processing technology, the research platinum brand mobile phone shielding cover can effectively isolate external electromagnetic interference while ensuring stable transmission of internal signals of the phone. In practical applications, the Yanbo brand mobile phone shielding case has performed well and has been recognized by many mobile phone manufacturers and users.

Design principles and optimization strategies

Reasonable layout of holes

The location and quantity of holes should be reasonably planned according to the layout and functional requirements of the internal circuit of the mobile phone. Try to place the holes near non critical signal paths to avoid interference with the main signal transmission lines. At the same time, the distribution of holes should be uniform and reasonable to ensure the stability of heat dissipation and signal transmission.

Control hole size

The hole size should be as small and regular as possible to reduce signal leakage and interference. Select the appropriate hole diameter and shape based on specific requirements and shielding effectiveness requirements. At the same time, attention should be paid to the machining accuracy and surface treatment quality of the holes to ensure the overall performance of the shielding cover.

Adopting advanced materials and technologies

with the help ofAdvanced Institute (Shenzhen) Technology Co., LtdBy utilizing high-performance shielding materials and advanced design technologies, the research and development achievements of institutions can further enhance the shielding effectiveness and signal integrity of mobile phone shielding cases. For example, advanced technologies such as multi-layer composite material structure, surface coating treatment, or special shape design are used to enhance the electromagnetic shielding performance and mechanical strength of the shielding cover.

conclusion

The opening design of mobile phone shielding covers has a significant impact on signal integrity. By reasonably arranging holes, controlling hole sizes, and using advanced materials and technologies, signal leakage and interference can be minimized while ensuring heat dissipation and signal input/output functions, thus improving the signal integrity and user experience of mobile phones. In the future, with the continuous development of mobile communication technology and the changing needs of users, the design of mobile phone shielding covers will pay more attention to refinement, intelligence, and environmental protection, providing users with a safer, more efficient, and convenient communication experience.

The above data is for reference only, and specific performance may vary due to production processes and product specifications.
